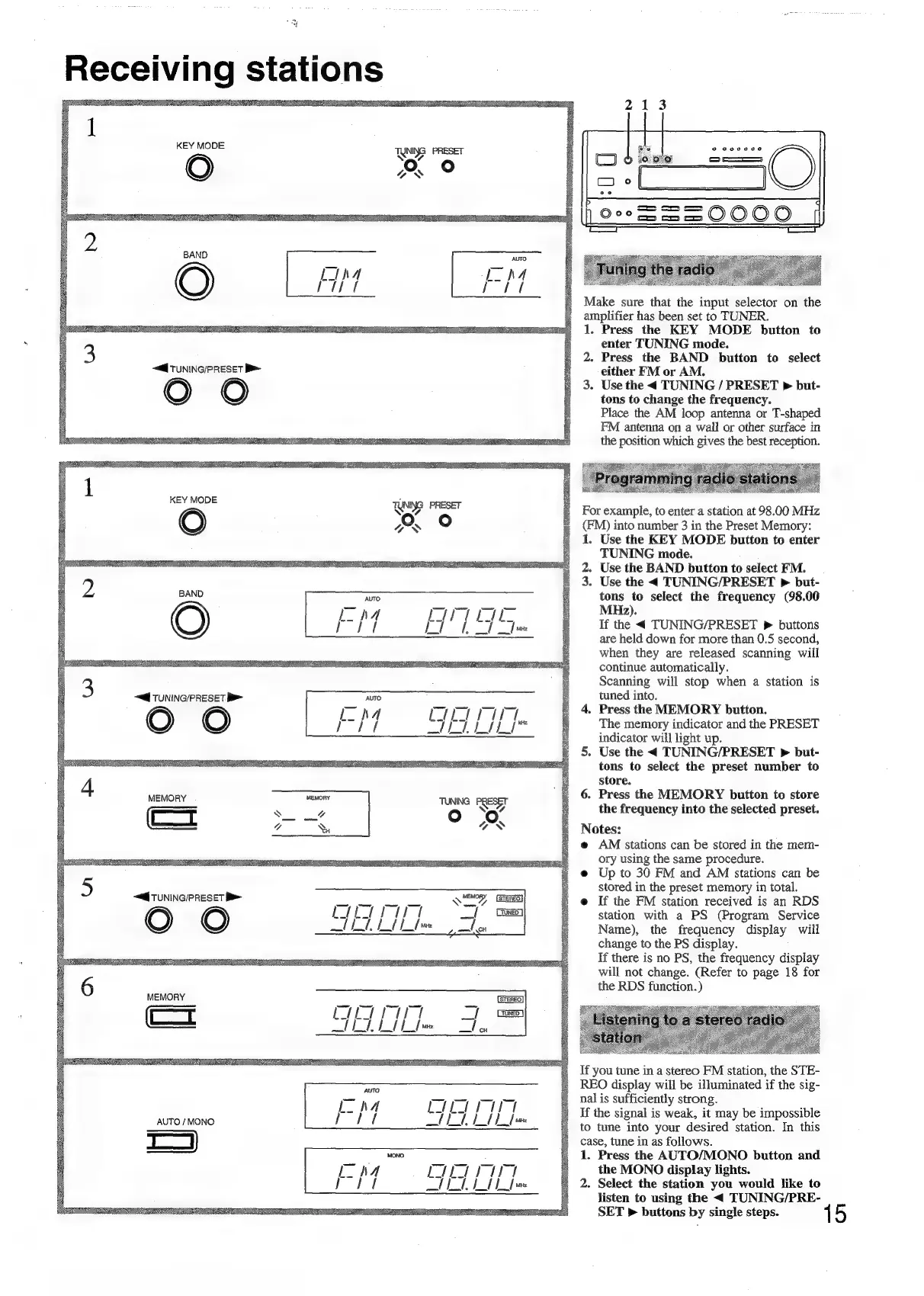

Receiving stations
KEY MODE
O
BAND
| LIA
O mini
Make sure that the input selector on the
amplifier has been set to TUNER.
1. Press the KEY MODE button to
enter TUNING mode.
2. Press the BAND button to select
“@QTUNING/PRESET D> either FM or AM.
3. Use the < TUNING / PRESET > but-
tons to change the frequency.
Place the AM loop antenna or T-shaped
FM antenna on a wall or other surface in
the position which gives the best reception.
KEY
MODE
.
For
example,
to
enter
a
station
at
98.00
MHz
(FM) into number 3 in the Preset Memory:
1. Use the KEY MODE button to enter
TUNING mode.
Use the BAND button to select FM.
. Use the < TUNING/PRESET P but-
tons to select the frequency (98.00
MHz).
If the < TUNING/PRESET » buttons
are held down for more than 0.5 second,
when they are released scanning will
continue automatically.
Scanning will stop when a station is
“@TUNING/PRESET > : tuned into.
— 4. Press the MEMORY button.
O O ] / f . The memory indicator and the PRESET
- indicator will light up.
5. Use the < TUNING/PRESET > but-
tons to select the preset number to
store.
6. Press the MEMORY button to store
the frequency into the selected preset.
Notes:
e AM stations can be stored in the mem-
ory using the same procedure.
e Up to 30 FM and AM stations can be
stored in the preset memory in total.
“Mf TuninerPreseT D> e If the FM station received is an RDS
O O station with a PS (Program Service
: Name), the frequency display will
change to the PS display.
If there is no PS, the frequency display
will not change. (Refer to page 18 for
the RDS function.)
. 2.
3
MEMORY
(oe
If you tune in a stereo FM station, the STE-
REO display will be illuminated if the sig-
nal is sufficiently strong.
If the signal is weak, it may be impossible
to tune into your desired station. In this
case, tune in as follows.
1. Press the AUTO/MONO button and
the MONO display lights.
2. Select the station you would like to
listen to using the < TUNING/PRE-
SET > buttons by single steps.
AUTO / MONO
i)
15

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
