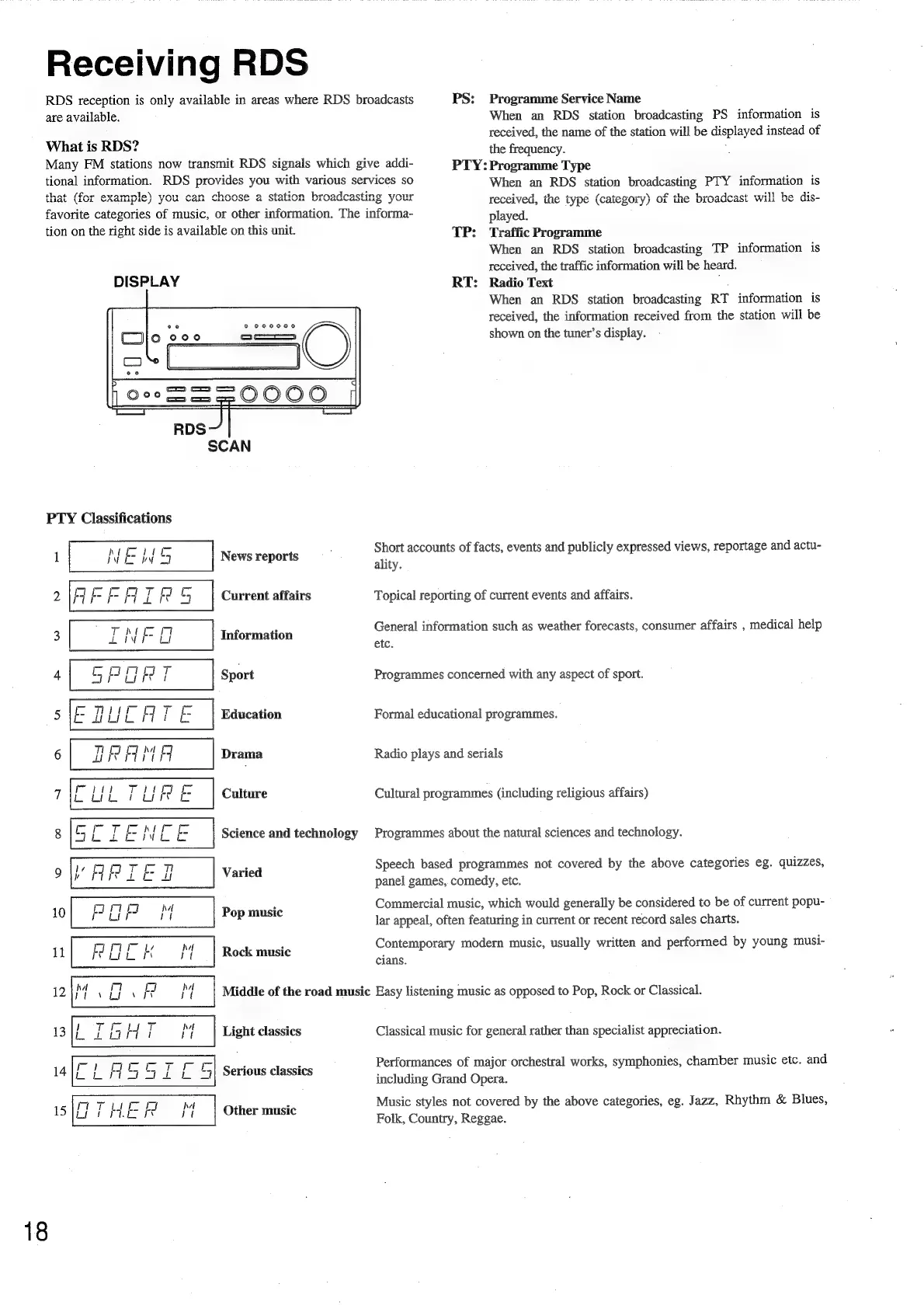

Receiving RDS
RDS reception is only available in areas where RDS broadcasts
are available.
What is RDS?
Many EM stations now transmit RDS signals which give addi-
tional information. RDS provides you with various services so
that (for example} you can choose a station broadcasting your
favorite categories of music, or other information. The informa-
PS: Programme Service Name
When an RDS station broadcasting PS information is
received, the name of the station will be displayed instead of
the frequency. ;
PTY: Programme Type
When an RDS station broadcasting PTY information is
received, the type (category) of the broadcast will be dis-
played.
tion on the right side is available on this unit.
DISPLAY
T
<
Classifications
1 NEWS News reports
21H
RF
FAT
RR
&
|
Current
affairs
TP: Traffic Programme
When an RDS station broadcasting TP information is
received, the traffic information will be heard.
RT: Radio Text nd
When an RDS station broadcasting RT information is
received, the information received from the station will be
shown on the tuner’s display.
Short accounts of facts, events and publicly expressed views, reportage and actu-
ality.
Topical reporting of current events and affairs.
General information such as weather forecasts, consumer affairs , medical help
Programmes concerned with any aspect of sport.
Formal educational programmes.
Radio plays and serials
3
iM
fF
ff
Information
etc.
4
CPUR]
Sport
SIF
TLL
AT
&
|
Education
6
GRANA
Drama
9
ARTE
TD
Varied
10)
SR
ft
Pop
music
|
felih
K
|
Rock
music
12\/4 . [7]. FM | Middle of the road music
13
L
rh
a
rt
Light
classics
Serious classics
YT Lar fo MM
15 Arno |
Other music
18
Cultural programmes (including religious affairs)
Programmes about the natural sciences and technology.
Speech
based
programmes
not
covered
by
the
above
categories
eg.
quizzes,
panel
games,
comedy,
etc.
Commercial
music,
which
would
generally
be
considered
to
be
of
current
popu-
lar
appeal,
often
featuring
in
current
or
recent
record
sales
charts.
Contemporary
modern
music,
usually
written
and
performed
by
young
musi-
cians.
Easy listening music as opposed to Pop, Rock or Classical.
Classical music for general rather than specialist appreciation.
Performances
of
major
orchestral
works,
symphonies,
chamber
music
etc.
and
including
Grand
Opera.
Music
styles
not
covered
by
the
above
categories,
eg.
Jazz,
Rhythm
&
Blues,
Folk,
Country,
Reggae.

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
