Onkyo R-811RDS User Manual

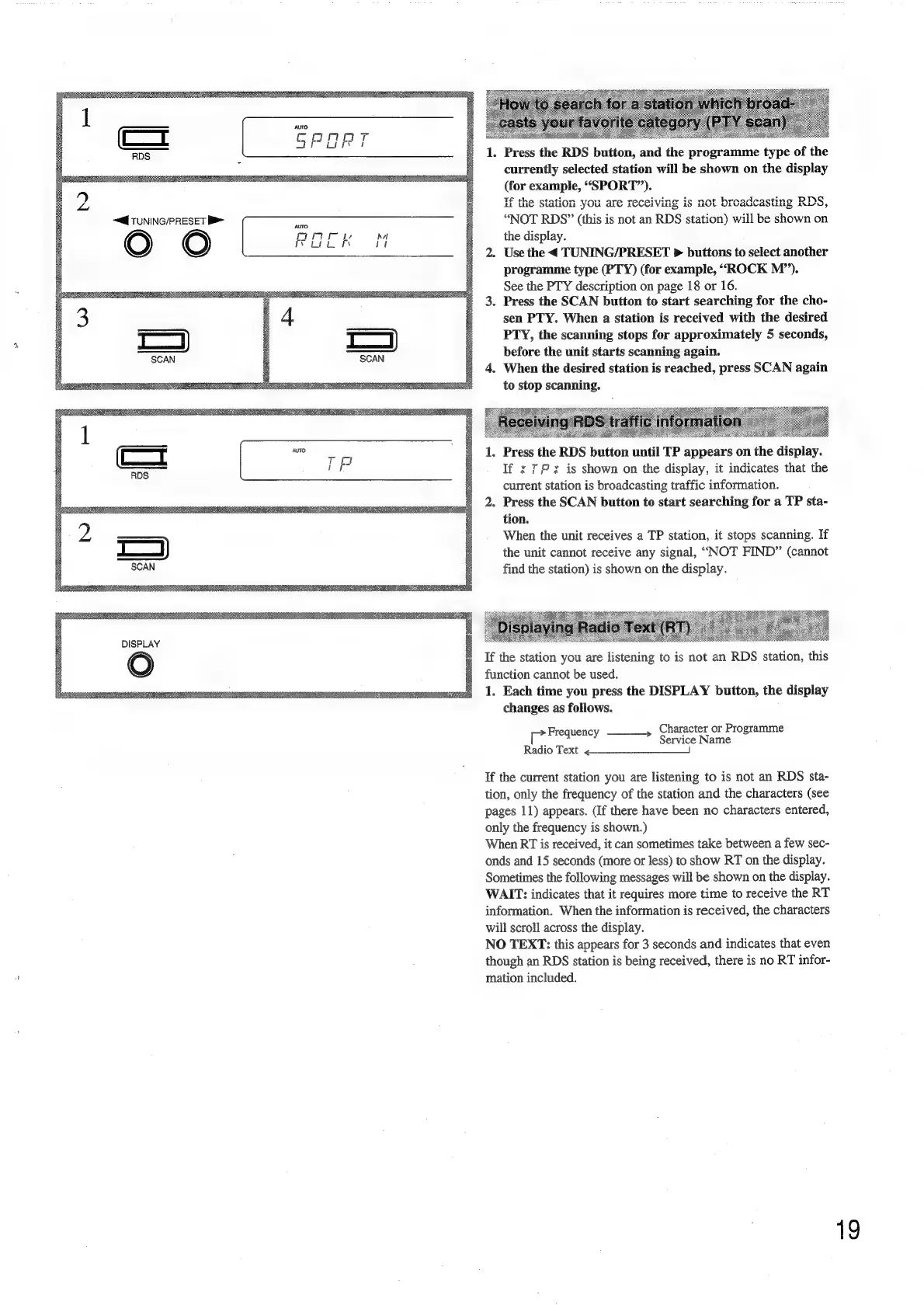

Press the RDS button, and the programme type of the
currently selected station will be shown on the display
(for example, “SPORT”).
: Tf the station you are receiving is not broadcasting RDS,
“@ TUNING/PRESET > “NOT RDS” (this is not an RDS station) will be shown on
the display.
2. Use the < TUNING/PRESET > buttons to select another
programme type (PTY) (for example, “ROCK M”).
See the PTY description on page 18 or 16.
3. Press the SCAN button to start searching for the cho-
sen PTY. When a station is received with the desired
PTY, the scanning stops for approximately 5 seconds,
before the unit starts scanning again.
4, When the desired station is reached, press SCAN again
to stop scanning.
bt
Press the RDS button until TP appears on the display.
If ¢ 7 Px is shown on the display, it indicates that the
current station is broadcasting traffic information.
Press the SCAN button to start searching for a TP sta-
tion.
When the unit receives a TP station, it stops scanning. If
the unit cannot receive any signal, “NOT FIND” (cannot
find the station) is shown on the display.
PC
DISPLAY
O
If the station you are listening to is not an RDS station, this
function cannot be used.
1. Each time you press the DISPLAY button, the display
changes as follows.
Character or Programme
Frequency ———.~> é
4 Service Name
Radio Text
If the current station you are listening to is not an RDS sta-
tion, only the frequency of the station and the characters (see
pages 11) appears. (If there have been no characters entered,
only the frequency is shown.)
When RT is received, it can sometimes take between a few sec-
onds and 15 seconds (more or less) to show RT on the display.
Sometimes the following messages will be shown on the display.
WAIT: indicates that it requires more time to receive the RT
information. When the information is received, the characters
will scroll across the display.
NO TEXT: this appears for 3 seconds and indicates that even
though an RDS station is being received, there is no RT infor-
mation included.
19

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
