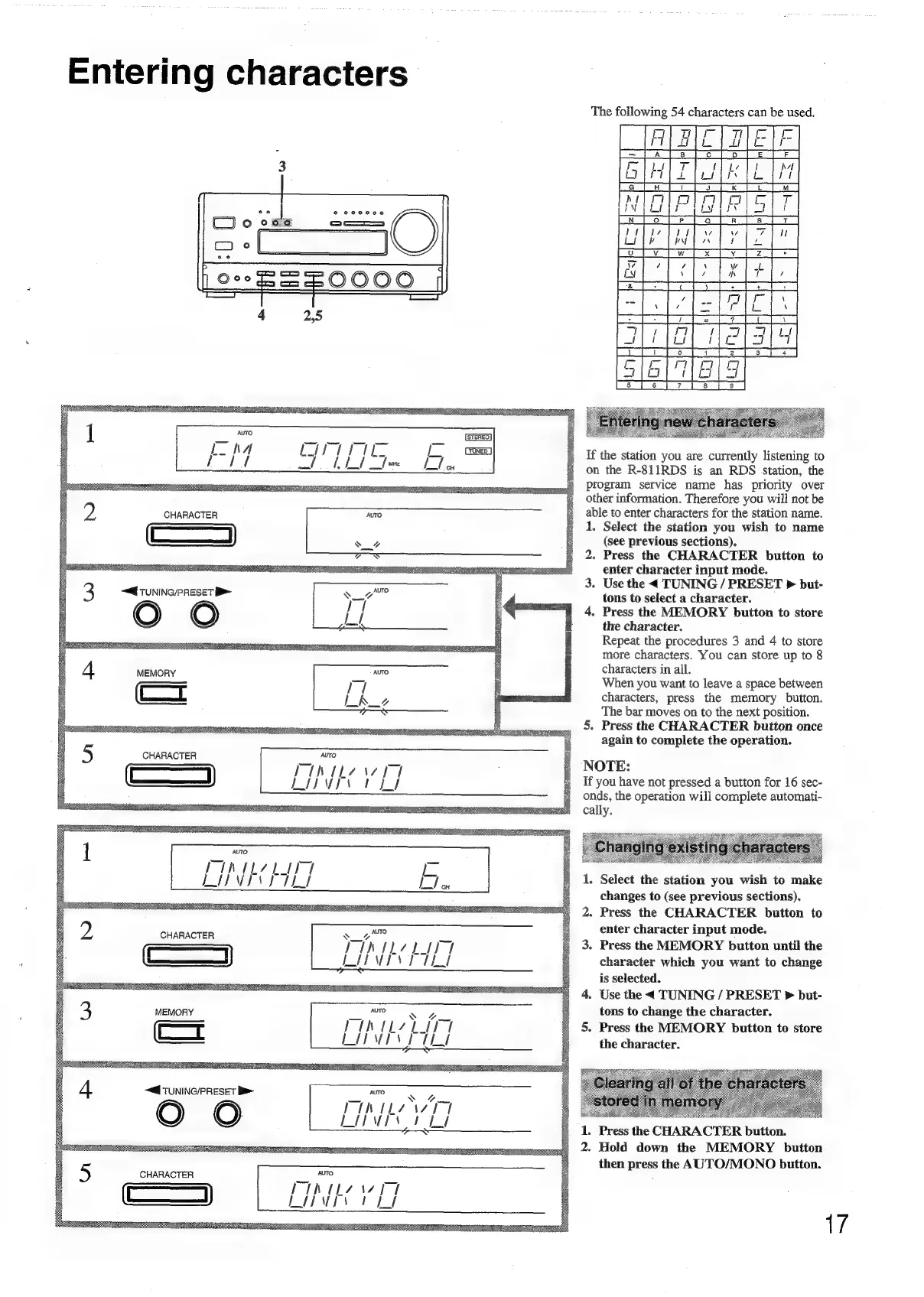

Onkyo R-811RDS User Manual

Entering
characters
loss =50000 |
CHARACTER
“@@ TUNING/PRESET >
O
CHARACTER
(en )
FUN (LZ NAT
LIIMIS 1 Ld
AUTO
FUN ILALIUT
LUIVINIULI
CHARACTER
~4Q TUNING/PRESET >
© O if ae dk / Vy /
CHARACTER ae
LUIS 1 LI
The following 54 characters can be used.
a
vv M4
ig if “Ny
aa
pu | ov Tw x
If the station you are currently listening to
on the R-811RDS is an RDS station, the
program service name has priority over
other information. Therefore you will not be
able to enter characters for the station name.
1. Select the station you wish to name
we
Py
(see previous sections).
Press the CHARACTER button to
enter character input mode.
Use the < TUNING / PRESET > but-
tons to select a character.
. Press the MEMORY button to store
the character.
Repeat the procedures 3 and 4 to store
more characters. You can store up to 8
characters in all.
When you want to leave a space between
characters, press the memory button.
The bar moves on to the next position.
Press the CHARACTER button once
again to complete the operation.
NOTE:
If you have not pressed a button for 16 sec-
onds, the operation will complete automati-
cally.
. Select the station you wish to make
changes to (see previous sections),
. Press the CHARACTER button to
enter character input mode.
. Press the MEMORY button until the
character which you want to change
is selected.
. Use the < TUNING / PRESET > but-
tons to change the character.
. Press the MEMORY button to store
the character.
. Press the CHARACTER button.
. Hold down the MEMORY button
then press the AUTO/MONO button.
17

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
