Onkyo R-811RDS User Manual

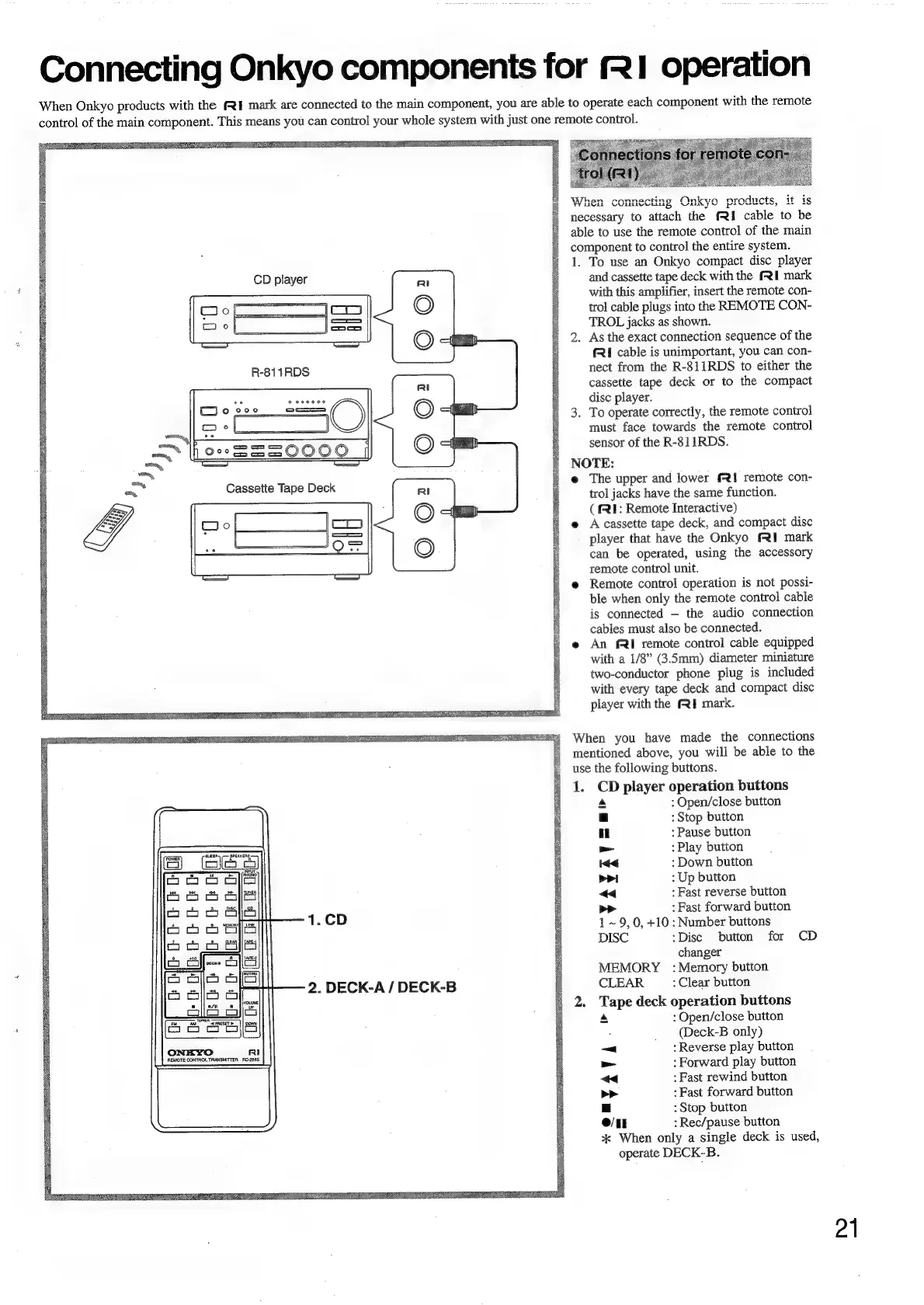

Connecting
Onkyo
components
for
RI
operation
When
Onkyo
products
with
the
(1
mark
are
connected
to
the
main
component,
you
are
able
to
operate
each
component
with
the
remote
control
of
the
main
component.
This
means
you
can
control
your
whole
system
with
just
one
remote
control.
CD player
(——s————)
i] O°? Soc
R
EMOTE CONTROL TRANSMITTER RC-259S
1.CD
2. DECK-A / DECK-B
When connecting Onkyo products, it is
necessary to attach the FRI cable to be
able to use the remote control of the main
component to control the entire system.
1. To use an Onkyo compact disc player
and cassette tape deck with the FRI mark
with this amplifier, insert the remote con-
trol cable plugs into the REMOTE CON-
TROL jacks as shown.
2. As the exact connection sequence of the
fR1 cable is unimportant, you can con-
nect from the R-811RDS to either the
cassette tape deck or to the compact
disc player.
3. To operate correctly, the remote control
must face towards the remote control
sensor of the R-811RDS.
NOTE:
e@ The upper and lower FRI remote con-
trol jacks have the same function.
(RI: Remote Interactive)
e A cassette tape deck, and compact disc
player that have the Onkyo FRI mark
can be operated, using the accessory
remote control unit.
e Remote control operation is not possi-
ble when only the remote control cable
is connected - the audio connection
cables must also be connected.
e@ An fi remote control cable equipped
with a 1/8” (3.5mm) diameter miniature
two-conductor phone plug is included
with every tape deck and compact disc
player with the RI mark.
When you have made the connections
mentioned above, you will be able to the
use the following buttons.
1. ea player operation buttons
: Open/close button
: Stop button
: Pause button
: Play button
: Down button
: Up button
: Fast reverse button
: Fast forward button
9, 0, +10 : Number buttons
DISC :Disc button for CD
changer
MEMORY : Memory button
CLEAR : Clear button
2. pane deck operation buttons
: Open/close button
(Deck-B only)
: Reverse play button
: Forward play button
: Fast rewind button
: Fast forward button
: Stop button
: Rec/pause button
-yAYRVEMrY
enyata”
* When only a single deck is used,
operate DECK-B.
21

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
