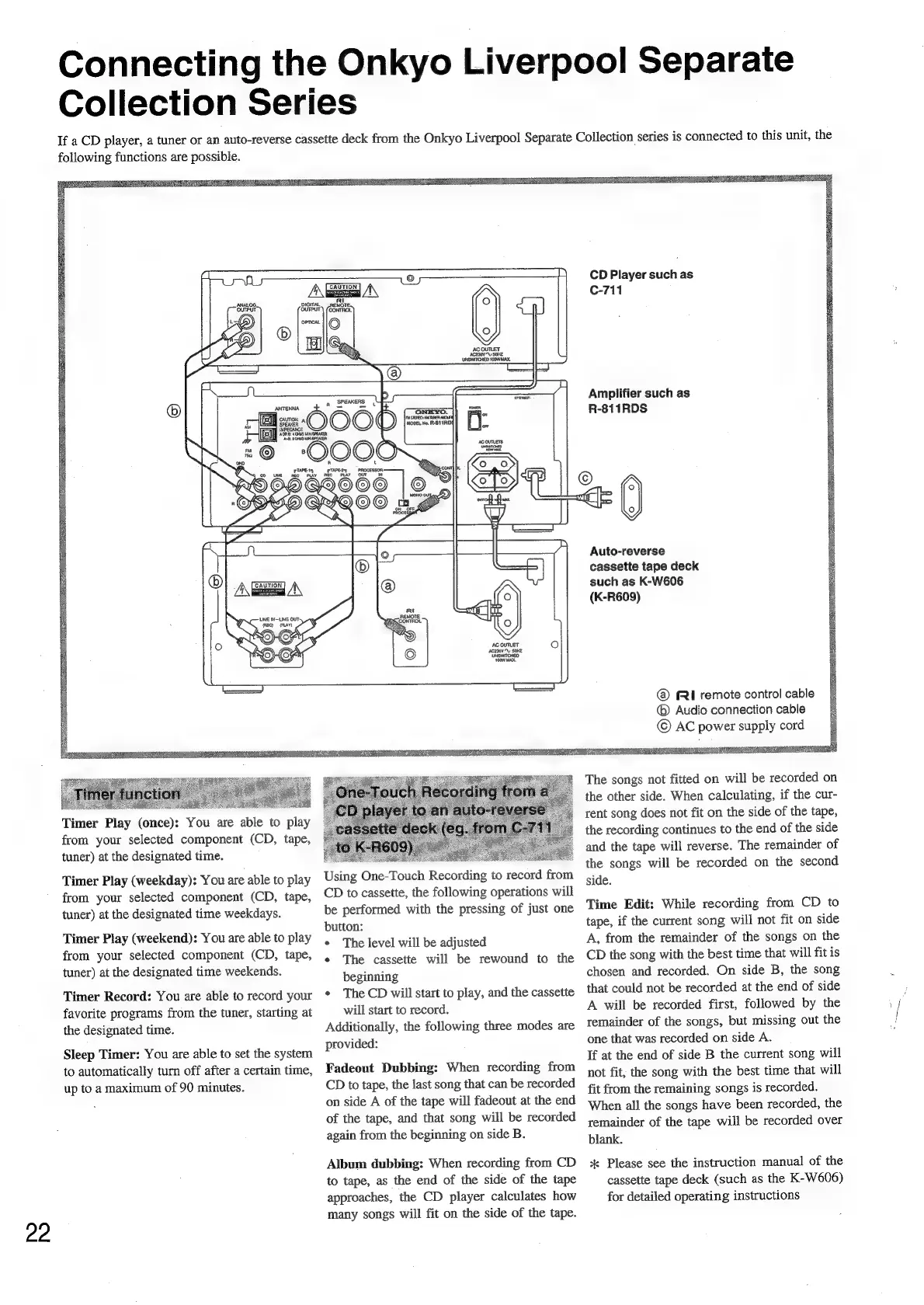

Onkyo R-811RDS User Manual

22
Connecting
the
Onkyo
Liverpool
Separate
Collection
Series
If
a
CD
player,
a
tuner
or
an
auto-reverse
cassette
deck
from
the
Onkyo
Liverpool
Separate
Collection
series
is
connected
to
this
unit,
the
following
functions
are
possible.
ANTENNA
-aizz-OOO
El sae
. ae
SPEAKERS
Timer Play (once): You are able to play
from your selected component (CD, tape,
tuner) at the designated time.
Timer Play (weekday): You are able to play
from your selected component (CD, tape,
tuner) at the designated time weekdays.
Timer Play (weekend): You are able to play
from your selected component (CD, tape,
tuner) at the designated time weekends.
Timer Record: You are able to record your
favorite programs from the tuner, starting at
the designated time.
Sleep Timer: You are able to set the system
to automatically turn off after a certain time,
up to a maximum of 90 minutes.
Using One-Touch Recording to record from
CD to cassette, the following operations will
be performed with the pressing of just one
button:
¢ The level will be adjusted
¢ The cassette will be rewound to the
beginning
¢ The CD will start to play, and the cassette
will start to record.
Additionally, the following three modes are
provided:
Fadeout Dubbing: When recording from
CD to tape, the last song that can be recorded
on side A of the tape will fadeout at the end
of the tape, and that song will be recorded
again from the beginning on side B.
Album dubbing: When recording from CD
to tape, as the end of the side of the tape
approaches, the CD player calculates how
many songs will fit on the side of the tape.
CD Player such as
C-711
Amplifier such as
R-811RDS
Auto-reverse
cassette tape deck
such as K-W606
(K-R609) L
@®
fl
remote
control
cable
©
Audio
connection
cable
©
AC
power
supply
cord
The songs not fitted on will be recorded on
the other side. When calculating, if the cur-
rent song does not fit on the side of the tape,
the recording continues to the end of the side
and the tape will reverse. The remainder of
the songs will be recorded on the second
side.
Time Edit: While recording from CD to
tape, if the current song will not fit on side
A, from the remainder of the songs on the
CD the song with the best time that will fit is
chosen and recorded. On side B, the song
that could not be recorded at the end of side
A will be recorded first, followed by the
remainder of the songs, but missing out the
one that was recorded on side A.
If
at
the
end
of
side
B
the
current
song
will
not
fit,
the
song
with
the
best
time
that
will
fit
from
the
remaining
songs
is
recorded.
When
all
the
songs
have
been
recorded,
the
remainder
of
the
tape
will
be
recorded
over
blank.
*
Please
see
the
instruction
manual
of
the
cassette
tape
deck
(such
as
the
K-W606)
for
detailed
operating
instructions

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
