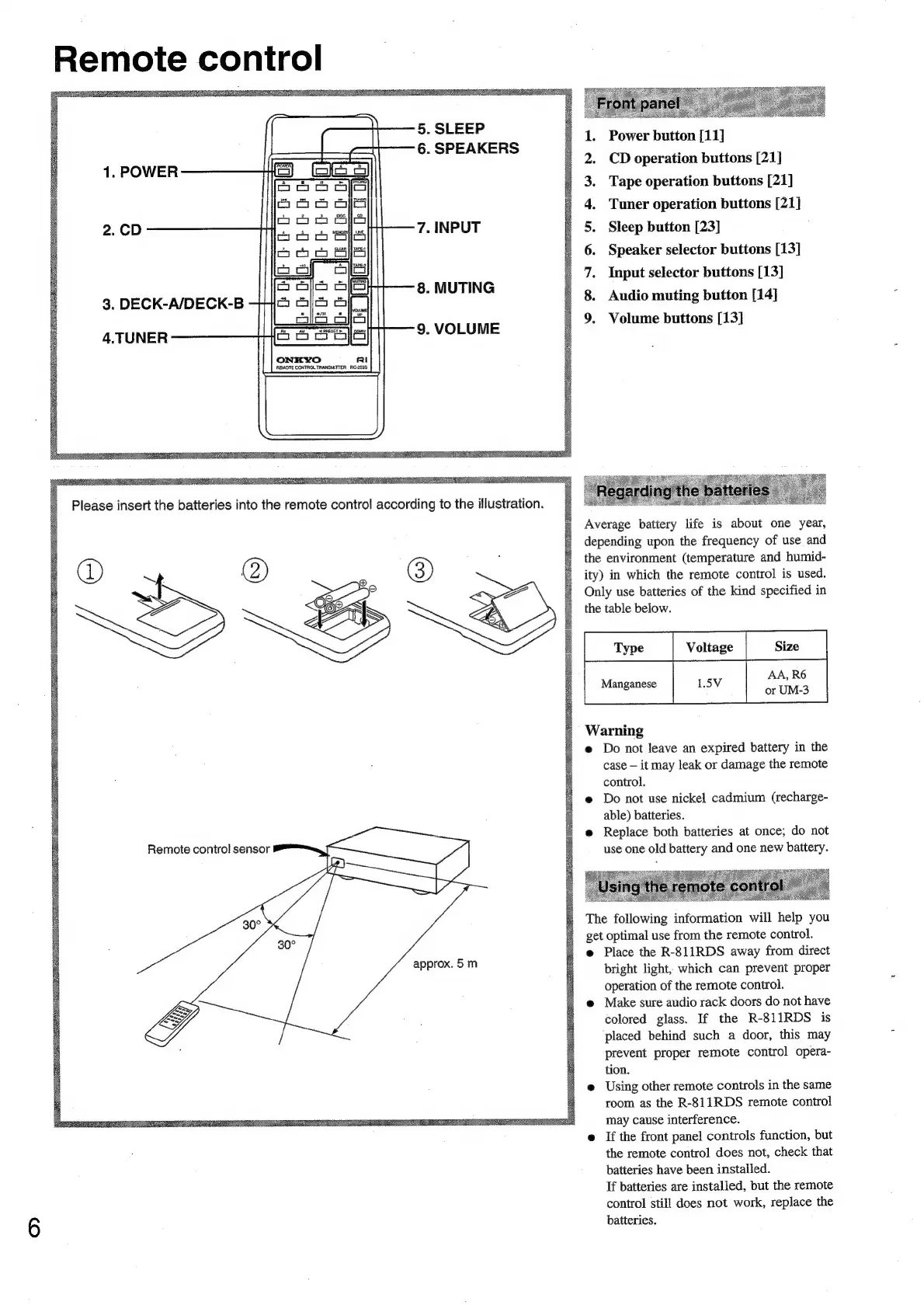

Remote control
5. SLEEP
Power button {11
6. SPEAKERS ower button E
CD operation buttons [21]
Tape operation buttons [21]
.
Tuner operation buttons [21]
Sleep button [23]
Speaker selector buttons [13]
Input selector buttons [13]
Audio muting button [14]
Volume buttons [13]
1
2
3.
4.
5.
6
7
3.
DECK-A/DECK-B
8
9
4.TUNER
REMOTE CONTROL TRANSMITTER RC-259S
Average battery life is about one year,
depending upon the frequency of use and
@
:
the
environment
(temperature
and
humid-
ity) in which the remote control is used.
Only use batteries of the kind specified in
the table below.
AA, R6
Warning
e Do not leave an expired battery in the
case — it may leak or damage the remote
control.
e@ Do not use nickel cadmium (recharge-
able) batteries.
e Replace both batteries at once; do not
Remote
control
sensor
use
one
old
battery
and
one
new
battery.
Sera TS)
The following information will help you
get optimal use from the remote control.
e Place the R-811RDS away from direct
bright light, which can prevent proper
operation of the remote control.
@ Make sure audio rack doors do not have
colored glass. If the R-811RDS is
placed behind such a door, this may
prevent proper remote control opera-
tion.
e Using other remote controls in the same
room as the R-811RDS remote control
may cause interference.
e If the front panel controls function, but
the remote control does not, check that
batteries have been installed.
If batteries are installed, but the remote
control still does not work, replace the
batteries.
approx. 5m

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
