Onkyo R-811RDS User Manual

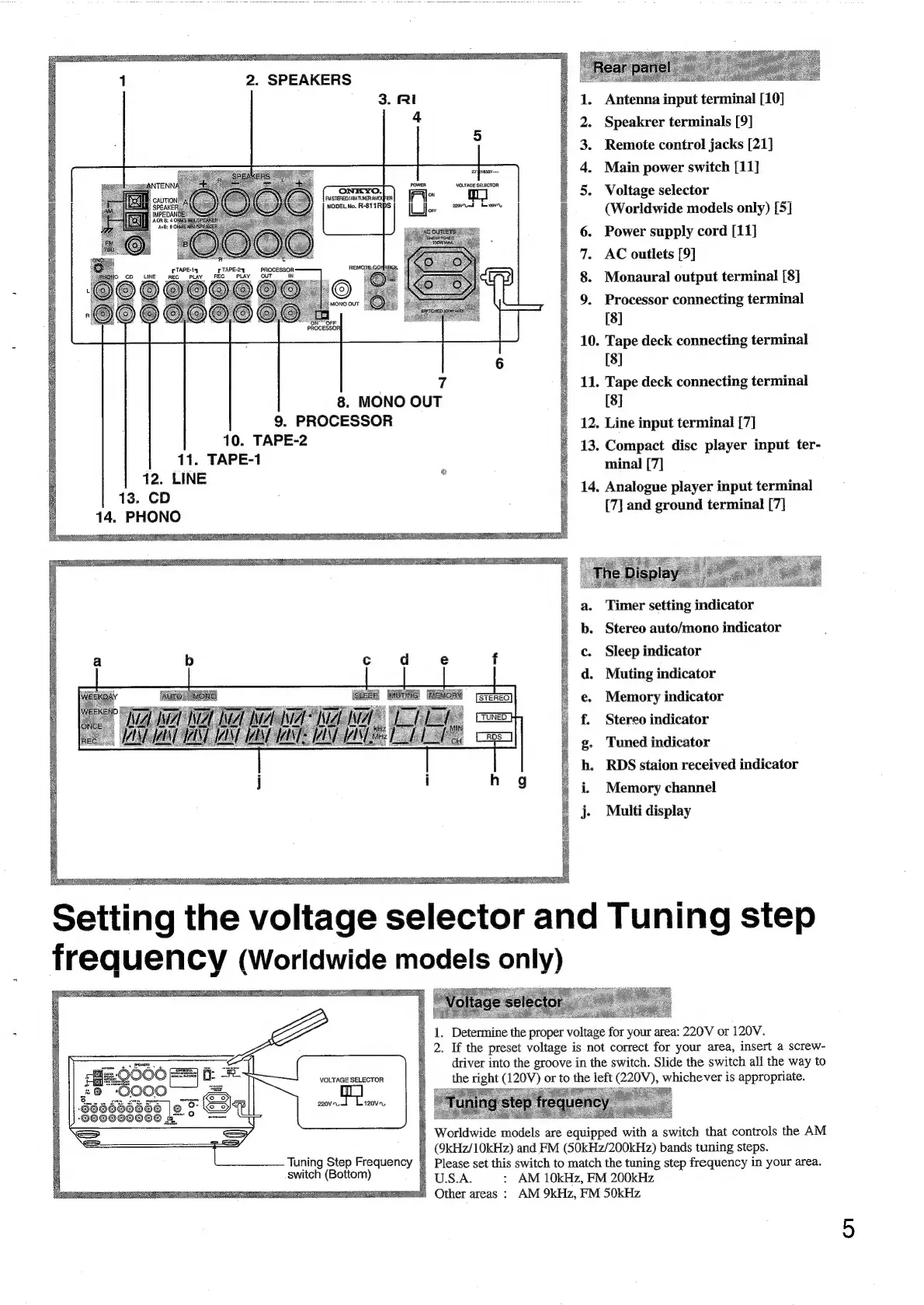

2.
SPEAKERS
o
a
a
3. RI
Antenna
input
terminal
[10]
Speakrer terminals [9]
Remote control jacks [21]
Main power switch [11]
Voltage selector
(Worldwide models only) [5]
Power supply cord [11]
AC outlets [9]
Monaural output terminal [8]
PTAPE-14 TTAPE-24 PROCESSOR
REC PLAY REC PLAY OUT IN
©)
Processor connecting terminal
[8]
. Tape deck connecting terminal
[8]
. Tape deck connecting terminal
8. MONO OUT [8]
9.
PROCESSOR
.
Line
input
terminal
[7]
10.
TAPE-2
.
Compact
disc
player
input
ter-
11.
TAPE-1
;
minal
[7]
12.
LINE
, ?
.
Analogue
player
input
terminal
14.
PHONO
[7]
and
ground
terminal
[7]
Timer setting indicator
b. Stereo auto/mono indicator
c. Sleep indicator
d. Muting indicator
e. Memory indicator
. Stereo indicator
g. Tuned indicator
h. RDS staion received indicator
Memory channel
Multi display
Setting the voltage selector and Tuning step
frequency (Worldwide models only)
a
a
| 1. Determine the proper voltage for your area: 220V or 120V.
_ 2. If the preset voltage is not correct for your area, insert a screw-
driver into the groove in the switch. Slide the switch all the way to
the right (120V) or to the left (220V), whichever is appropriate.
pseu s
VOLTAGE SELECTOR
220VU 120V
_ Worldwide models are equipped with a switch that controls the AM
: | (9kHz/10kHz) and FM (SO0kHz/200kHz) bands tuning steps.
Tuning
Step
Frequency
|
Please
set
this
switch
to
match
the
tuning
step
frequency
in
your
area.
switch (Bottom)
|
USA.
:
AM
10kHz,
FM
200kHz
» Other areas : AM 9kHz, FM 50kHz

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
