Onkyo R-811RDS User Manual

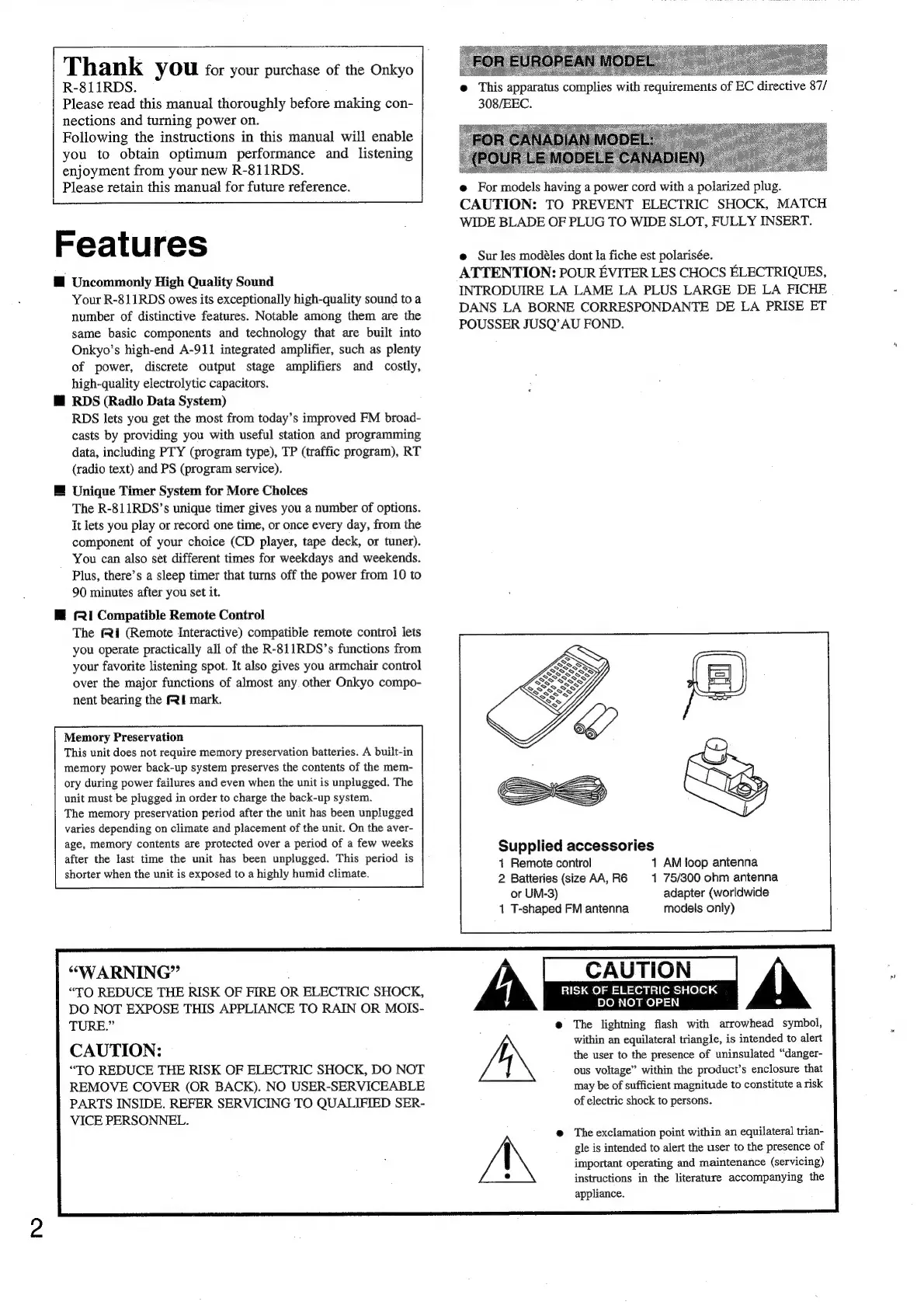

Thank YOU for your purchase of the Onkyo
R-811RDS.
Please read this manual thoroughly before making con-
nections and turning power on.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new R-811RDS.
Please retain this manual for future reference.
Features
Hi Uncommonly High Quality Sound
Your R-811RDS owes its exceptionally high-quality sound toa
number of distinctive features. Notable among them are the
same basic components and technology that are built into
Onkyo’s high-end A-911 integrated amplifier, such as plenty
of power, discrete output stage amplifiers and costly,
high-quality electrolytic capacitors.
Mi RDS (Radlo Data System)
RDS lets you get the most from today’s improved FM broad-
casts by providing you with useful station and programming
data, including PTY (program type), TP (traffic program), RT
(radio text) and PS (program service).
H Unique Timer System for More Cholees
The R-811RDS’s unique timer gives you a number of options.
it lets you play or record one time, or once every day, from the
component of your choice (CD player, tape deck, or tuner).
You can also set different times for weekdays and weekends.
Plus, there’s a sleep timer that turns off the power from 10 to
90 minutes after you set it.
Mi f1 Compatible Remote Control
The fRi (Remote Interactive) compatibie remote control iets
you operate practically all of the R-811RDS’s functions from
your favorite listening spot. It also gives you armchair control
over the major functions of almost any. other Onkyo compo-
nent bearing the FRI mark.
Memory Preservation
This unit does not require memory preservation batteries. A built-in
memory power back-up system preserves the contents of the mem-
ory during power failures and even when the unit is unplugged. The
unit must be plugged in order to charge the back-up system.
The memory preservation period after the unit has been unplugged
varies depending on climate and placement of the unit. On the aver-
age, memory contents are protected over a period of a few weeks
after the last time the unit has been unplugged. This period is
shorter when the unit is exposed to a highly humid climate.
“WARNING” -
| “TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOIS-
TURE.”
CAUTION:
“TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SER-
VICE PERSONNEL.
e This apparatus complies with requirements of EC directive 87/
308/EEC.
e For models having a power cord with a polarized plug.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
e Sur les modéles dont la fiche est polarisée.
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE
DANS LA BORNE CORRESPONDANTE DE LA PRISE ET
POUSSER JUSQ’AU FOND.
Supplied accessories
1 Remote control 1 AM loop antenna
2 Batteries (size AA, R6 1 75/300 ohm antenna
or UM-3) adapter (worldwide
1 T-shaped FM antenna models only)
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
@ The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated “danger-
ous voltage” within the product’s enclosure that
may be of sufficient magnitude to constitute a risk
of electric shock to persons.
The exclamation point within an equilateral trian-
gle is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.

Onkyo R-811RDS Specifications

Power

power_output_at_4_ohms	2 x 50 watts
power_output_at_8_ohms	2 x 35 watts
continuous_power_output	32 watts per channel at 8 ohms
dynamic_power_output_at_4_ohms	2 x 70 watts
dynamic_power_output_at_8_ohms	2 x 40 watts
total_harmonic_distortion_at_rated_power	0.2%
im_distortion_at_rated_output	0.1%
damping_factor	40 at 8 ohms

Frequency Response

frequency_response	20Hz to 30 kHz + 1 dB
riaa_deviation	20Hz to 20 kHz + 0.8 dB

Sensitivity and Impedance

phono_sensitivity_and_impedance	2.5 mV/50 kohms
cd_tape_play_sensitivity_and_impedance	150 mV/50 kohms
tape_rec_sensitivity_and_impedance	150 mV/2.2 kohms

Signal-to-Noise Ratio

phono_signal_to_noise_ratio	80 dB (HF A, 5 mV input)
cd_tape_signal_to_noise_ratio	100 dB (IHF A)

Tuner Section

fm_tuning_range_european_models	87.50-108.00 MHz (50 kHz steps)
fm_tuning_range_worldwide_models	87.50-108.00 MHz (50 kHz steps), 87.9-107.9 MHz (200 kHz steps)
am_tuning_range_european_models	522-1611 kHz (9 kHz steps)
am_tuning_range_worldwide_models	531-1602 kHz (9 kHz steps), 530-1710 kHz (10 kHz steps)

Usable Sensitivity

fm_mono_usable_sensitivity	11.2 dBf, 1.0uV, 75 Ohms IHF
fm_stereo_usable_sensitivity	17.2 dBf, 2.0V, 75 Ohms IHF
am_usable_sensitivity	25uV

General

power_supply_european_models_except_uk	AC230V, 50 Hz
power_supply_canadian_models	AC120 V, 60 Hz
power_supply_uk_australian_models	AC240 V, 50 Hz
power_supply_worldwide_models	AC120 V and 220 V switchable, 50/60 Hz
dimensions	275 x 118 x 336 mm (10-7/8" x 4-11/16" x 13-7/32")
weight	5.5 kg, 12.1 lbs
