Onkyo TX-RZ70 User Manual

68
Connections

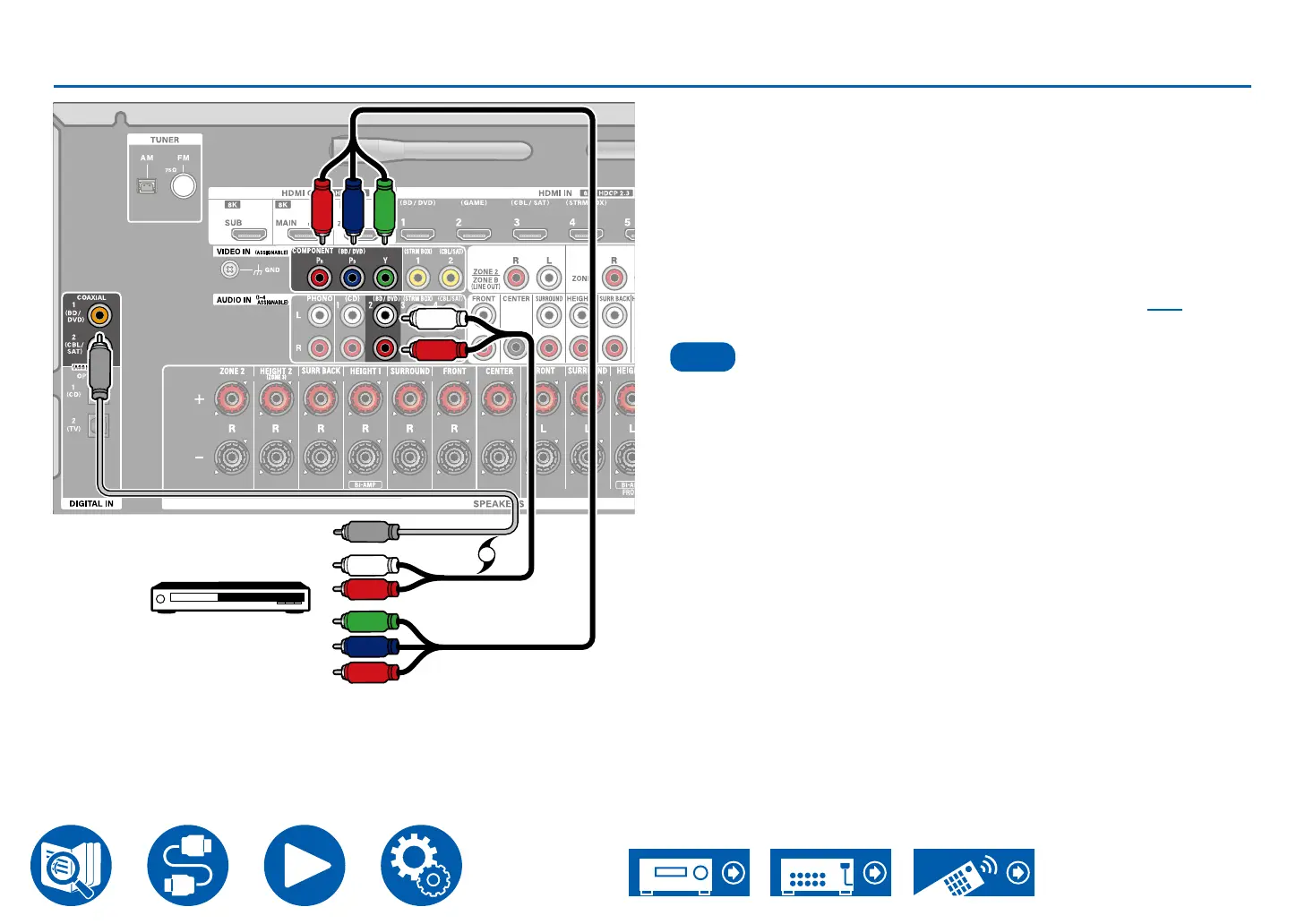

Connecting a BD/DVD without HDMI Jack Mounted
This is a connection example of an AV component unequipped with an HDMI
jack. Select cables that match the jacks of the AV component for connection. For
example, when video input is connected to the BD/DVD jack, connect the audio
input to BD/DVD jack, too. Thus, video input jacks and audio input jacks should
have the same name for connection. Note that video signals input to the VIDEO
IN jack or the COMPONENT VIDEO IN jack are converted to HDMI video
signals, and then output from the HDMI OUT jack.
• To enjoy digital surround playback in formats such as Dolby Digital, you need
to make a connection for audio signals with a digital coaxial cable or a digital
optical cable.
• According to the illustration, changing the input assignment ( →p131)
enables connection to jacks other than the BD/DVD jack.
Note
• The COMPONENT VIDEO IN jacks are compatible only with 480i or 576i
resolution. When connecting to the COMPONENT VIDEO IN jacks, set the
output resolution of the player to 480i or 576i. If there is no option such as
480i, select interlace. If your player does not support 480i or 576i output, use
the VIDEO IN jack.
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
a Digital coaxial cable, b Analog audio cable, c Component video cable
a
b
c
OR
BD/DVD

Onkyo TX-RZ70 Specifications

General

Type	AV Receiver
Channels	11.2
Power per Channel	140 W (8 ohms, 20 Hz-20 kHz, 0.08% THD, 2 channels driven)
Dolby Atmos	Yes
DTS:X	Yes
IMAX Enhanced	Yes
Dirac Live	Yes
Roon Tested	Yes
Wireless	Yes
THD	0.08%
HDMI Inputs	7
HDMI Outputs	3
Streaming	Spotify, TIDAL, Deezer, TuneIn, Pandora
Power Output	140W per channel (8 ohms, 20Hz-20kHz, 0.08% THD, 2 channels driven)
Frequency Response	5 Hz-100 kHz/+1 dB, -3 dB (Direct Mode)
Input Sensitivity and Impedance	200mV/47k ohms
Signal-to-Noise Ratio	106 dB (Line, IHF-A)
Video Section	4K/120Hz
HDMI Support	eARC, 8K/60 Hz, 4K/120 Hz
Bluetooth	Yes
Wi-Fi	Yes (2.4/5 GHz)
Supported Audio Formats	MP3, WMA, AAC, WAV, FLAC, DSD
Dimensions	435 x 201.5 x 388 mm
