The FRONT L/R and SURR BACK L/R terminal posts
can be used with front speakers and surround back
speakers respectively, or bi-amped to provide separate
tweeter and woofer feeds for a pair of front speakers that
support bi-amping, providing improved bass and treble
performance.
• When bi-amping is used, the AV receiver/AV ampli-
fier is able to drive up to 5.1 speakers in the main
room.
• For bi-amping, the FRONT L/R terminal posts con-
nect to the front speakers’ woofer terminals. And the
SURR BACK L/R terminal posts connect to the front
speakers’ tweeter terminals.
• Once you’ve completed the bi-amping connections
shown below and turned on the AV receiver/AV
amplifier, you must set the “Speakers Type” setting to
“Bi-Amp” to enable biamping (see page 45).
Important:
• When making the bi-amping connections, be sure
to remove the jumper bars that link the speakers’
tweeter (high) and woofer (low) terminals.
• Bi-amping can only be used with speakers that support
bi-amping. Refer to your speaker manual.

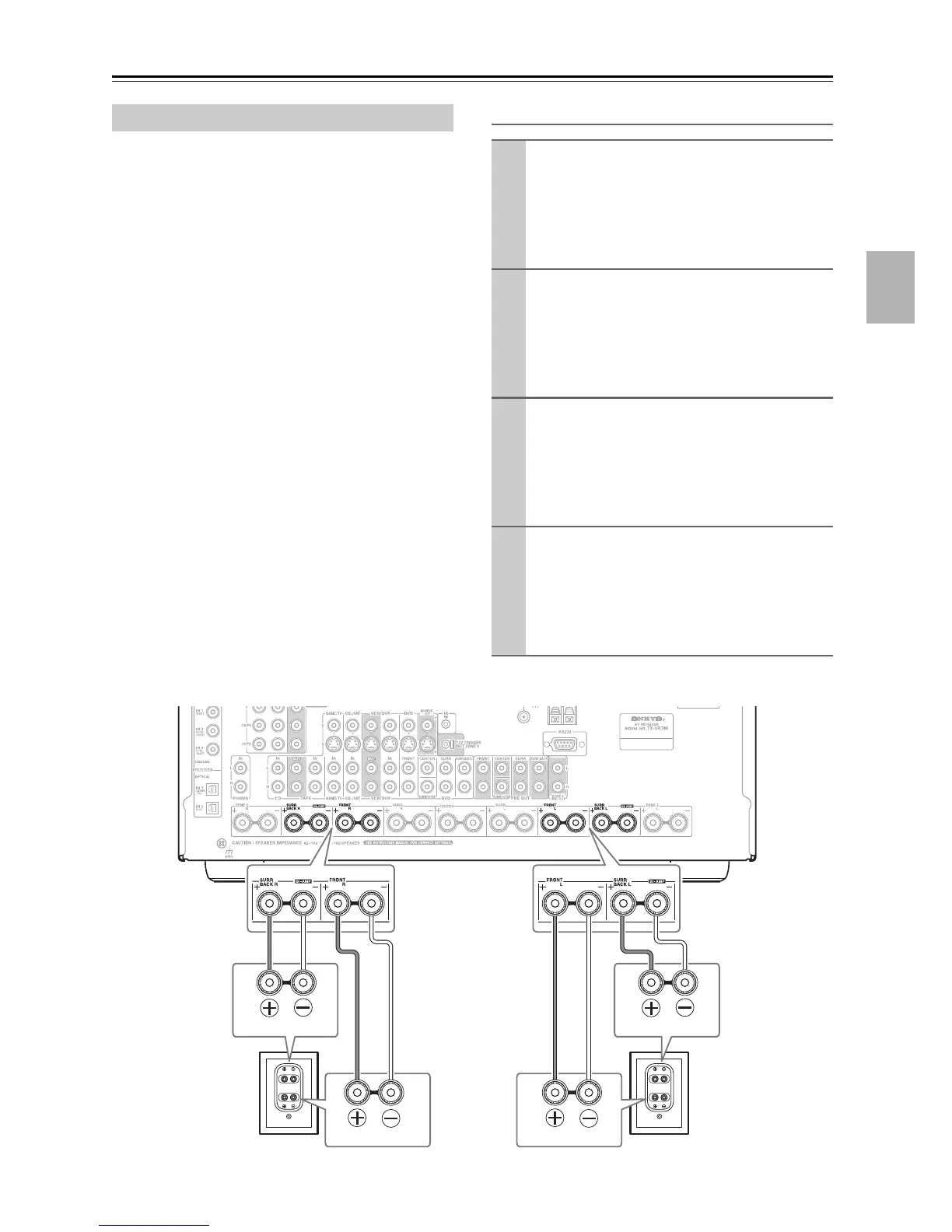

Bi-amping Speaker Hookup
Bi-amping the Front Speakers
1
Connect the AV receiver/AV amplifier’s FRONT
R positive (+) terminal to the right speaker’s pos-
itive (+) Woofer (low) terminal. And connect the
AV receiver/AV amplifier’s FRONT R negative
(–) terminal to the right speaker’s negative (–)
Woofer (low) terminal.
2
Connect the AV receiver/AV amplifier’s SURR
BACK R positive (+) terminal to the right
speaker’s positive (+) Tweeter (high) terminal.
And connect the AV receiver/AV amplifier’s
SURR BACK R negative (–) terminal to the right
speaker’s negative (–) Tweeter (high) terminal.
3
Connect the AV receiver/AV amplifier’s FRONT
L positive (+) terminal to the left speaker’s posi-
tive (+) Woofer (low) terminal. And connect the
AV receiver/AV amplifier’s FRONT L negative
(–) terminal to the left speaker’s negative (–)
Woofer (low) terminal.
4
Connect the AV receiver/AV amplifier’s SURR
BACK L positive (+) terminal to the left speaker’s
positive (+) Tweeter (high) terminal. And connect
the AV receiver/AV amplifier’s SURR BACK L
negative (–) terminal to the left speaker’s negative
(–) Tweeter (high) terminal.
Woofer (low)
Right speaker Left speaker
Tweeter (high) Tweeter (high)
Woofer (low)
