First Time Setup—Continued
The onscreen setup menus are displayed on the connected TV and provide a convenient way to change the AV receiver’s
settings. (The onscreen menus do not appear on a TV that’s connected to the HDMI OUT (TX-SR604/604E/8460
only).)

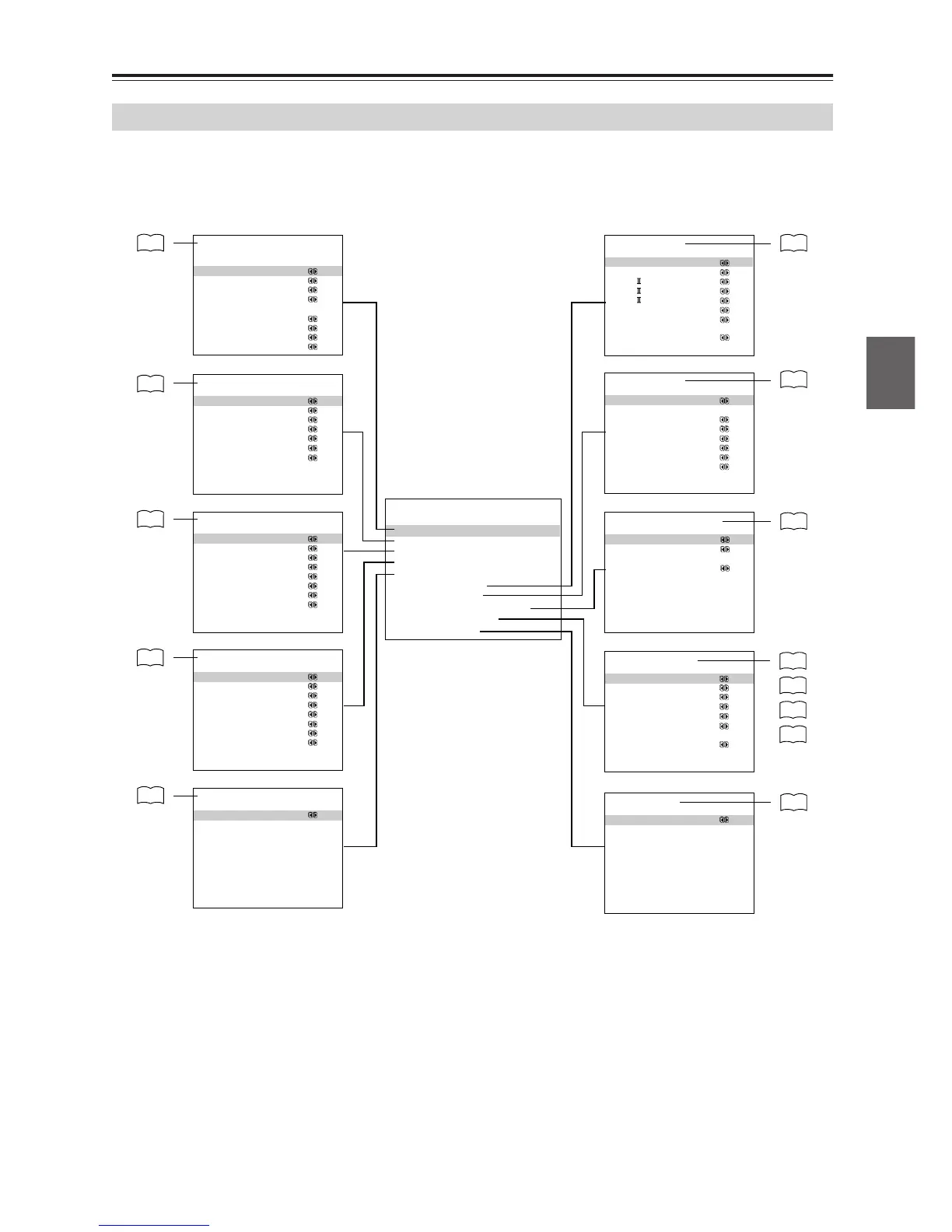

About the Onscreen Setup Menus
Menu
------------------------
00.0ration
1.Speaker Config
2.Speaker Distance
3.Level Calibration
4.Equalizer Settings
5.Audio Adjust
6.Input Setup
7.Miscellaneous Setup
8.Hardware Setup
9.Lock Setup
0.Video Input
0.Video Input
------------------------
Component Video
a.DVD : IN1
b.VIDEO1 : ---
c.VIDEO2 : ---
d.VIDEO3 : ---
HDMI
e.DVD : No
f.VIDEO1 : No
g.VIDEO2 : No
h.VIDEO3 : No
1.Speaker Config
------------------------
a.Subwoofer :Yes
b.Front : 100Hz
c.Center : 100Hz
d.Surround : 100Hz
e.SurrBack : 100Hz
f.SurrBack Ch :2ch
g.LPFofLFE : 120Hz
h.DoubleBass :---
2.Speaker Distance
------------------------
a.Unit : feet
b.Front : 12ft
c.Center : 12ft
d.SurrRight : 7ft
e.SurrBack R : 7ft
f.SurrBack L : 7ft
g.SurrLeft : 7ft
h.Subwoofer : 12ft
3.Level Calibration
------------------------
a.Left : 0dB
b.Center : 0dB
c.Right : 0dB
d.SurrRight : 0dB
e.SurrBack R : 0dB
f.SurrBack L : 0dB
g.SurrLeft : 0dB
h.Subwoofer : 0dB
4.Equalizer Settings
------------------------
a.Equalizer : Off
------------------------
5.Audio Adjust
------------------------
a.Multiplex : Main
b.Mono Input Ch: L+R
c.PL x Panorama :Off
d.PL x Dimension : 0
e.PL x Center Width:3
f.Neo:6 CenterImage:2
g.Dolby EX : Auto
h.T-D Listening Angle
: Wide
6.Input Setup
--------DVD/MCH---------
a.IntelliVolume: 0dB
Listening Mode Preset
b.Ana/PCM:Last Valid
c.Dolby D:Last Valid
d.DTS :Last Valid
e.D.F.2ch:Last Valid
f.Mono :Last Valid
g.MCH Ana:Last Valid
7.Miscellaneous Setup
------------------------
a.MaximumVolume: Off
b.PowerOnVolume: Last
c.Immediate Display
:Normal
8.Hardware Setup
------------------------
a.SP Impedance :6ohms
b.PoweredZone2:NotAct
c.TV Format :Auto
d.AM Freq. Step: 9kHz
e.Remote ID :1
f.HDMI Audio Out :On
g.SW Input Sensitivity
: 0dB
9.Lock Setup
------------------------
a.Lock :Unlocked
Main menu
p. 67
p. 45
p. 69
p. 70
p. 72
p. 74
p. 71
p. 75
p. 47
p. 77
p. 72
p. 76
p. 80
Submenus Submenus
