Onkyo TX-SR703

70
Advanced Setup
This section explains how to check the speaker settings
and how to set them manually, which is useful if you
change a speaker after performing the automatic speaker
setup.
Some speaker settings are set automatically by the Auto-
matic Speaker Setup function (see page 40).
Speaker Configuration
With these settings, you can specify which speakers are
connected and a crossover frequency for each speaker.
The following crossover frequencies can be specified:
Full Band, 40 Hz, 60 Hz, 70 Hz, 80 Hz (THX), 90 Hz,
100 Hz, 120 Hz, 150 Hz, 200 Hz.
Specify Full Band for speakers that can output low-fre-
quency bass sounds adequately, for example, speakers
with a good sized woofer. For smaller speakers, specify
a crossover frequency. Sounds below the crossover fre-
quency will be output by the subwoofer instead of the
speaker. Refer to your speakers’ manuals to determine
the optimum crossover frequencies.
If you’re using THX-certified speakers, specify
80 Hz (THX) for all speakers.

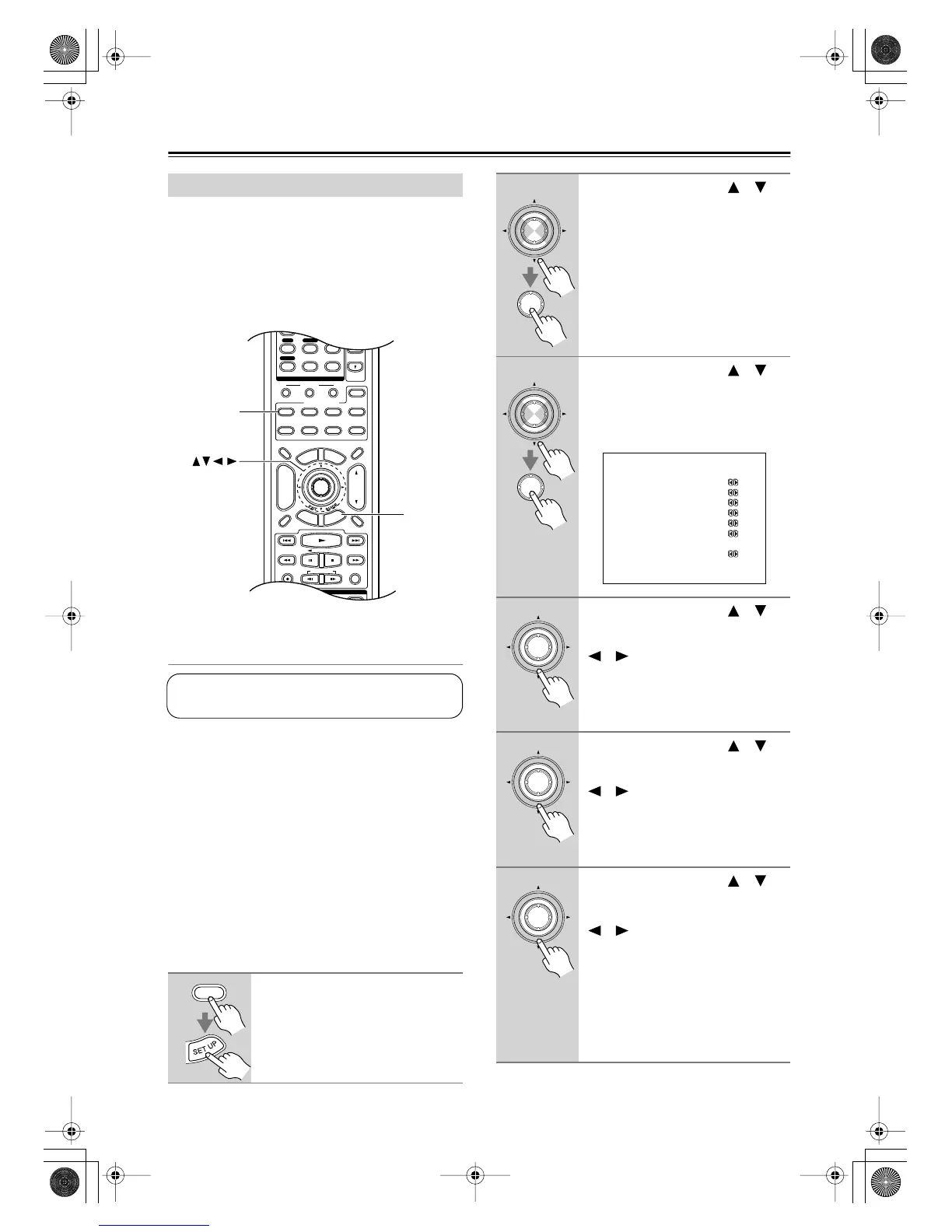

Speaker Setup
1
Press the [RECEIVER] REMOTE
MODE button, followed by the
[SETUP] button.
The main menu appears onscreen.
THX
10
--/---
11 12
REMOTE MODE
HDD RECEIVER
TAPE/AMP
DVD CD
ZONE2
SAT TV VCR CABLE
MDCDR
STEREO SURR
DIRECT
SUBTITLEAUDIO
ALLST
PLAY MODE REPEAT
RANDOMREC PLAYLIST
-
T V CH
T
V VOL
ENTER
S
E
T
U
P
T
O
P
M
E
N
U
M
E
N
U
VOL
+
-
CH
DISPLAY
PREV
CH
DIMMER
SLEEP
MUTING
LISTENING MODE
INPUT SELECTOR
32
MACRO
1
+
10 0
CLEAR
456
789
CD
MULTI CH DVD
TUNER
PHONO
DISC
ALBUM
V4
TAPE
PURE A
R
E
T
U
R
N
SETUP
RECEIVER
ENTER
These settings are set automatically by the Automatic
Speaker Setup function (see page 40).
RECEIVER
2
Use the Up and Down [ ]/[ ]
buttons to select “3. Speaker
Setup,” and then press [ENTER].
The Speaker Setup menu appears.
3
Use the Up and Down [ ]/[ ]
buttons to select “Speaker Con-
figuration,” and then press
[ENTER].
The Speaker Config menu appears.
4
Use the Up and Down [ ]/[ ]
buttons to select “a. Subwoofer,”
and then use the Left and Right
[ ]/[ ] buttons to select:
Yes: Select if a subwoofer is con-
nected.
No: Select if no subwoofer is con-
nected.
5
Use the Up and Down [ ]/[ ]
buttons to select “b. Front,” and
then use the Left and Right
[ ]/[ ] buttons to select a
crossover frequency.
Note:
• If the Subwoofer setting in step 4 is
set to No, this is fixed at Full Band.
6
Use the Up and Down [ ]/[ ]
buttons to select “c. Center,” and
then use the Left and Right
[ ]/[ ] buttons to select a
crossover frequency.
If no center speaker is connected, select
None.
Note:
• If the Front setting in step 5 is set to
anything other than Full Band, Full
Band cannot be selected here.
ENTER
ENTER
ENTER
ENTER
3-2.Speaker Config
------------------------
a.Subwoofer :Yes
b.Front :80Hz(THX)
c.Center :80Hz(THX)
d.Surround :80Hz(THX)
e.SurrBack :80Hz(THX)
f.SurrBack Ch :2ch
g.LPF of LFE
:80Hz(THX)
h.Subwoofer Mode
:-------------
ENTER
ENTER
ENTER
