Five Volt Adjustment
If a Printer is to be fitted with a special length interconnection cable (3, 5 or 6 Metres), please ensure
that the
5 Volt DC
supply at the Printer is adjusted to
5.1 Volts,
otherwise the Printer may not

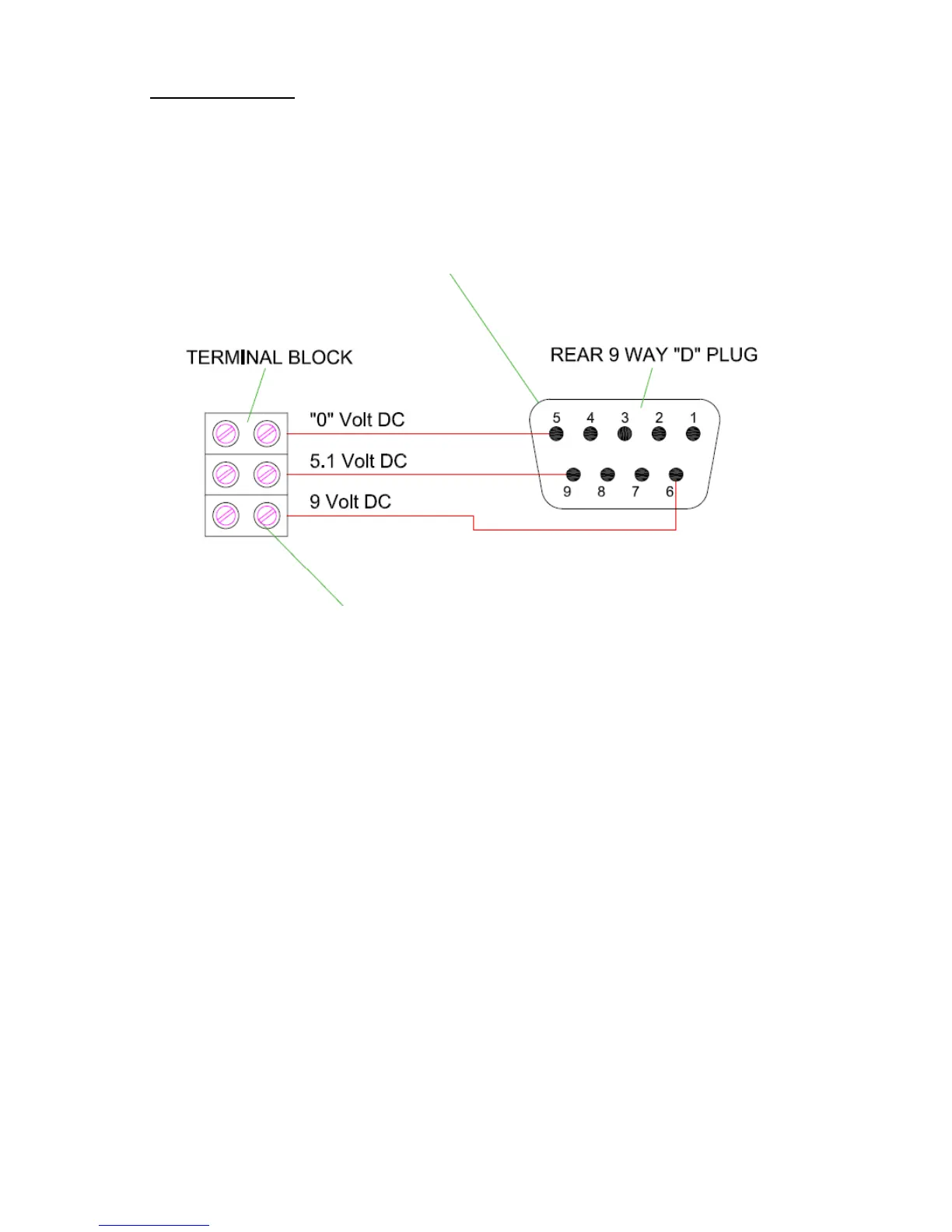

function correctly. This can be measured on Pin 5 and Pin 9, of the 9way “D” serial socket. The
voltage is adjusted via the Potentiometer on the front right hand side of the power supply.
See page 15
Test Connector not supplied
Plug in to the Serial Port of the Printer
Check the voltage with a Multi-meter
For more information on the Power Supply see: -
Page 12 & 13 for relay connections.
Page 13 & 14 for print signal connections.
Page 15 & 18 for power supply plan view (Page 15 with covers removed)
Page 18 & 19 for power supply Encoder Connections
The print signal can be delayed upon installation if required. Within the Supervisor menu on the mini-
terminal display, there is a “Delay Menu” which allows the operator to change the print signal delay
time. (Range 0 to 999 milliseconds)
To Next Page
