COMPUTER CONNECTION LEADS

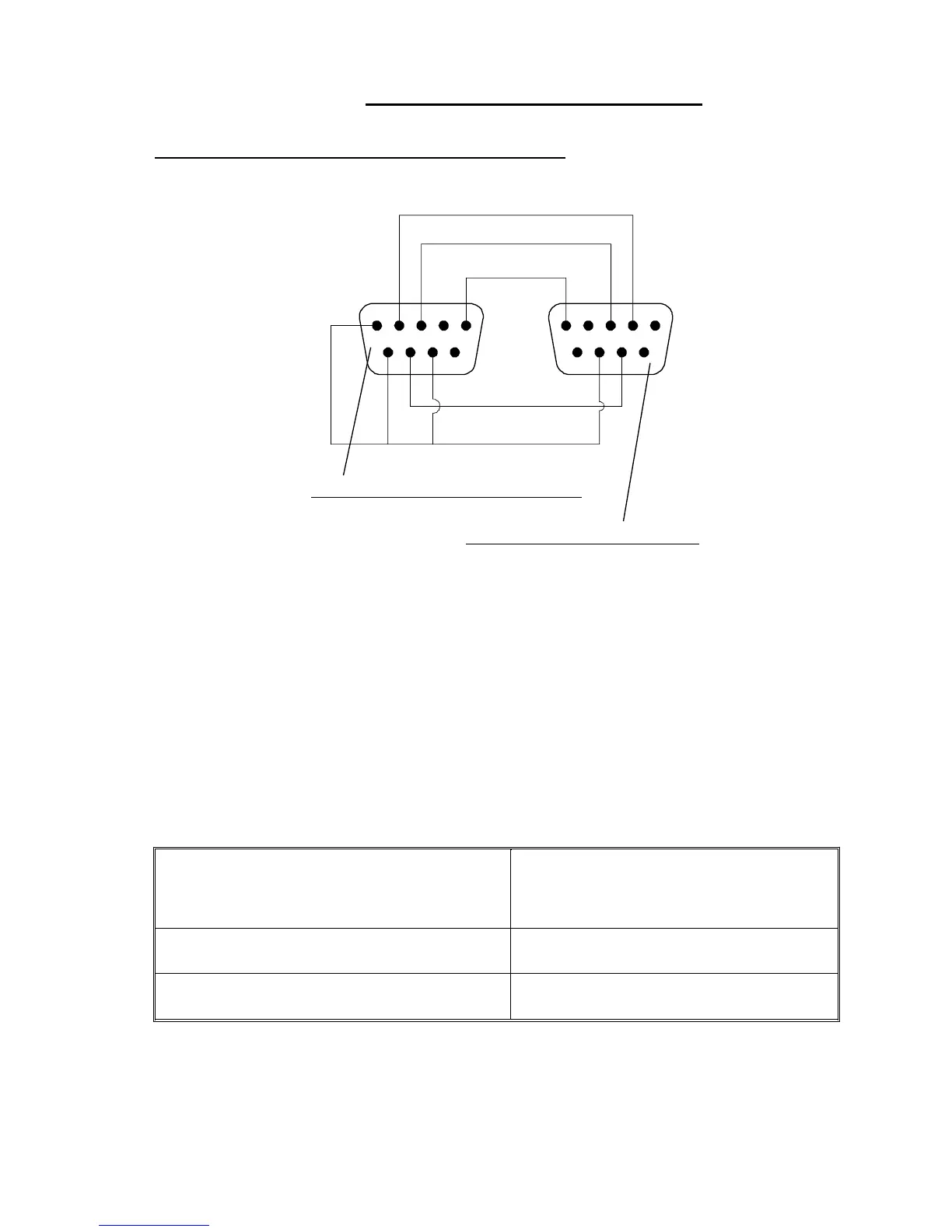

COMPUTER TO PRINTER 9 WAY “D” CONNECTOR (COM1)
12345
96
87
31245
6
78
9
REAR 9 WAY "D" SOCKET (COMPUTER)
REAR 9 WAY "D" PLUG (PRINTER)
YELLOW
BLUE
BLACK
GREEN
WHITE
Re – Order: PART No. LEA 755021
AIRBORNE NOISE EMISSIONS.
Comprehensive tests have been carried out with the Thermocode fitted in a standard printer frame
and mounted onto a typical label applicator. Measurements were taken at 1.6 metres above floor level and
approximately 1 metre away from the printer in all directions.
The measuring equipment used for conducting the tests was a Digital Sound Level Meter,
type d-1405E supplied by Lucas CEL. Before the tests were carried out the instrument was calibrated and
fitted with a foam windshield.
The noise levels shown below are the equivalent continuous “A-weighted” sound pressure levels in
decibels “dB(A)”.
PRINTER STATUS
NOISE LEVEL -
DECIBELS (dB)
Awaiting Print signal 0
Continuously printing 66
