53CR POWER SUPPLY

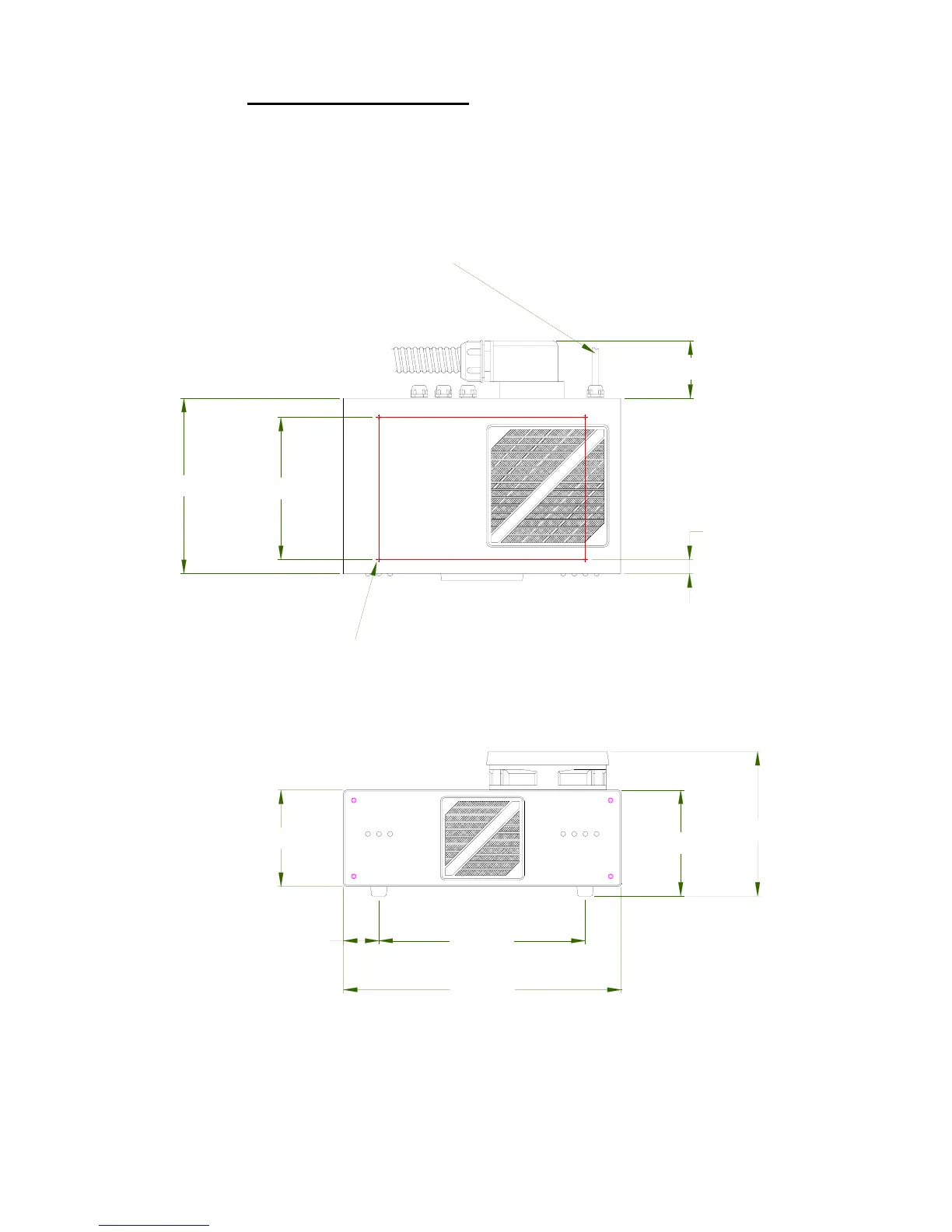

(Dimensional & Installation details)
212.00
285.00
(
M4 SCREWS) MAX THREAD LENGTH INSIDE POWER SUPPLY 10.0mm
36.50
100.00
OP
PH
PH
24v
SIG
IP
180.00
Brown = Live
Blue = Neutral
Green/Yellow = Earth
146.00
110.00
150.00
PR
5v
PR
9v
PS
5v
M
40v
59.00
14.50
4 OFF FEET POSITIONS, CAN BE USED FOR MOUNTING
Mains Cable Connections:-
