Open Date Thermocode Series 2 - Lower Roller Unit Dimensions

Thermocode 2 Printer manual Version 2.04 January 2011 53
53

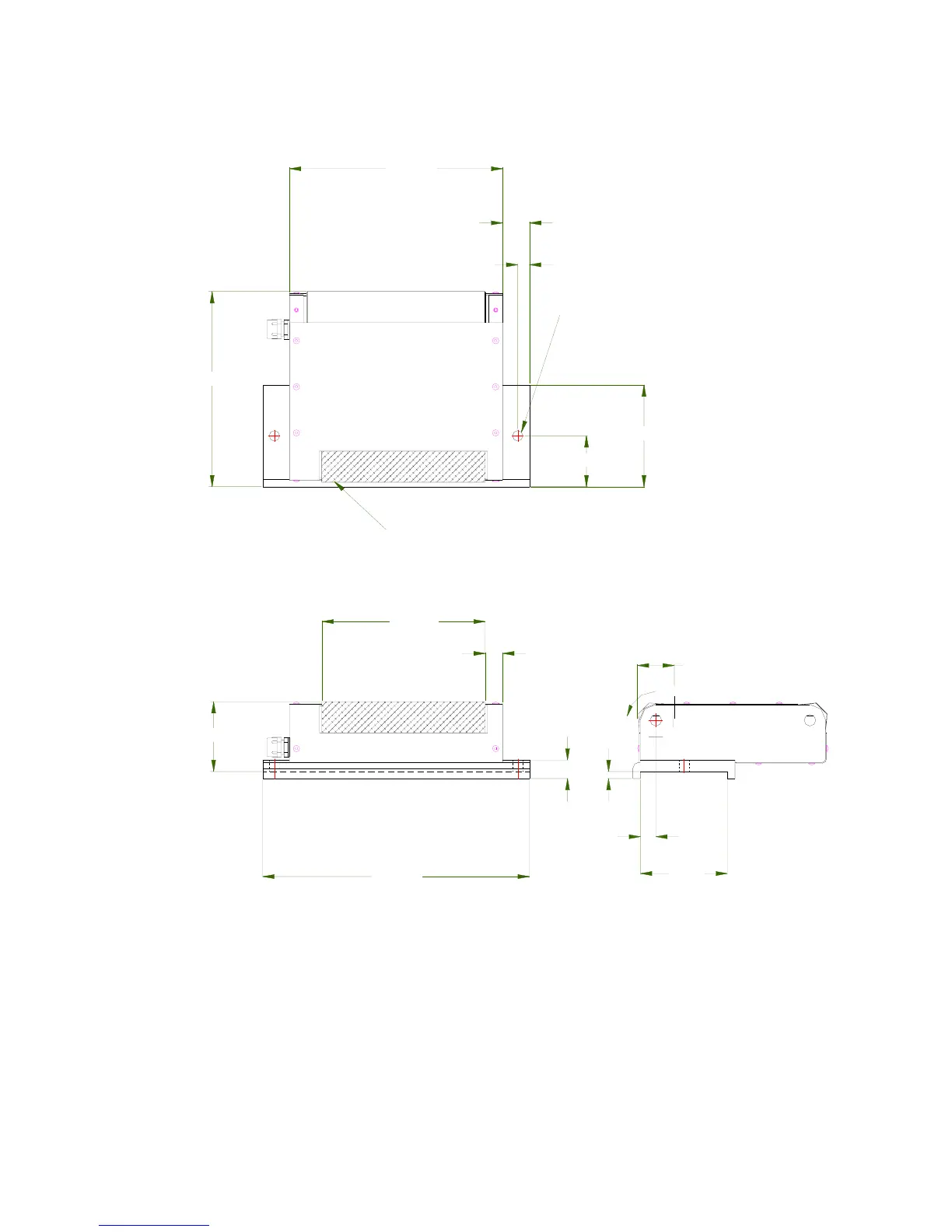

53CR Lower Roller Unit Dimensions
60.50
230.00
141.00
168.80
184.00
31.80 Ø
10.75
6.00
16.00
13.30
15.00
57 2.0
Direction
2 HOLES 9.0 Ø
44.00
10.00
88.00
23.00
40º - 50º SHORE A, GROUND RUBBER ROLLER (See specification below)
Rubber Roller Specification
Hardness: “40 - 50 Shore A” Silicone Rubber.
Thickness: - Minimum 4.00mm Silicone Rubber bonded to the roller.
Flatness: - Supplied with ground surface, Flatness tolerance -0.05mm to +0.05mm
