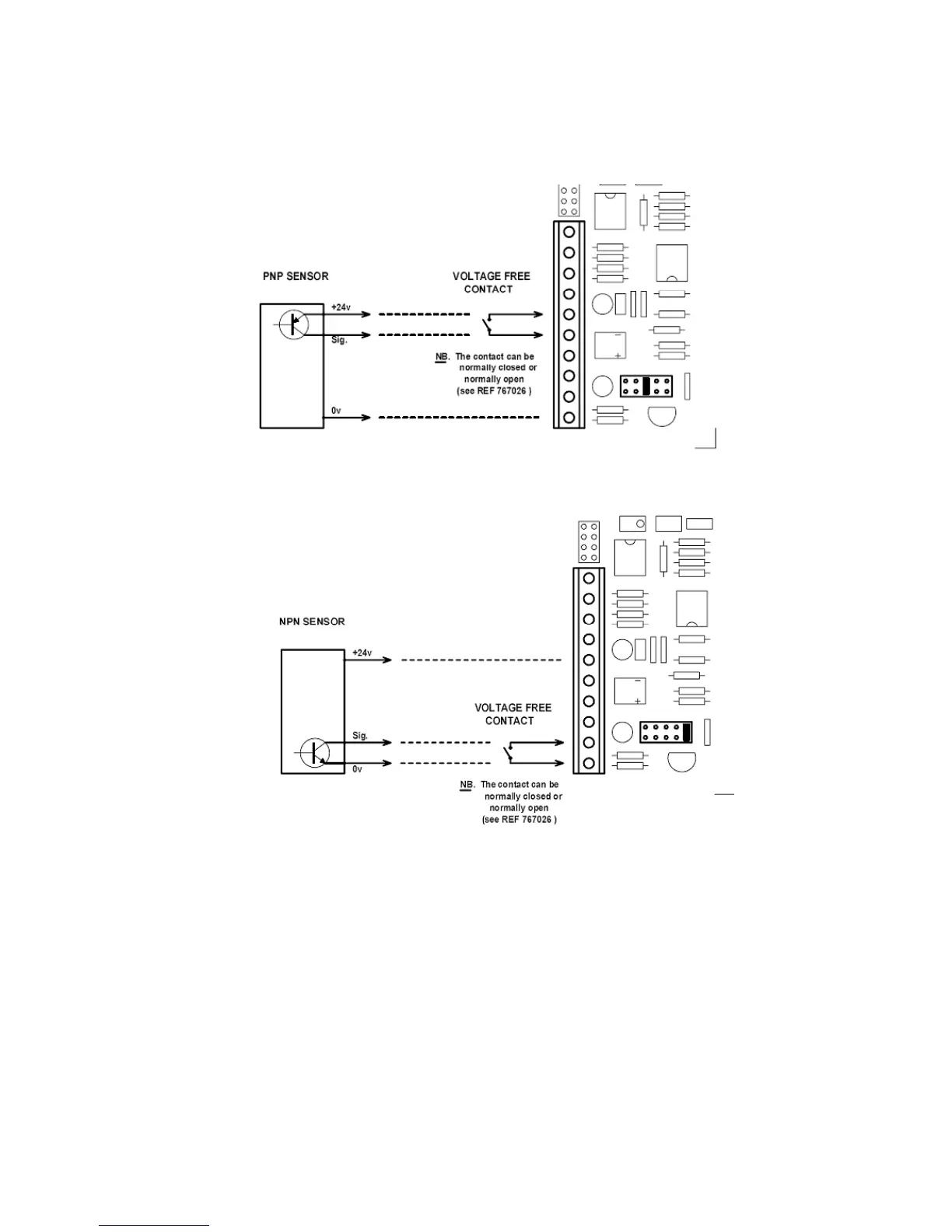

PNP / NPN Sensor or Volt Free Connections
Note: -
The above drawings, are for 24V DC sensor deriving their power from the Thermal power supply.
When the sensor has its own power supply, leave off the +24V connection
