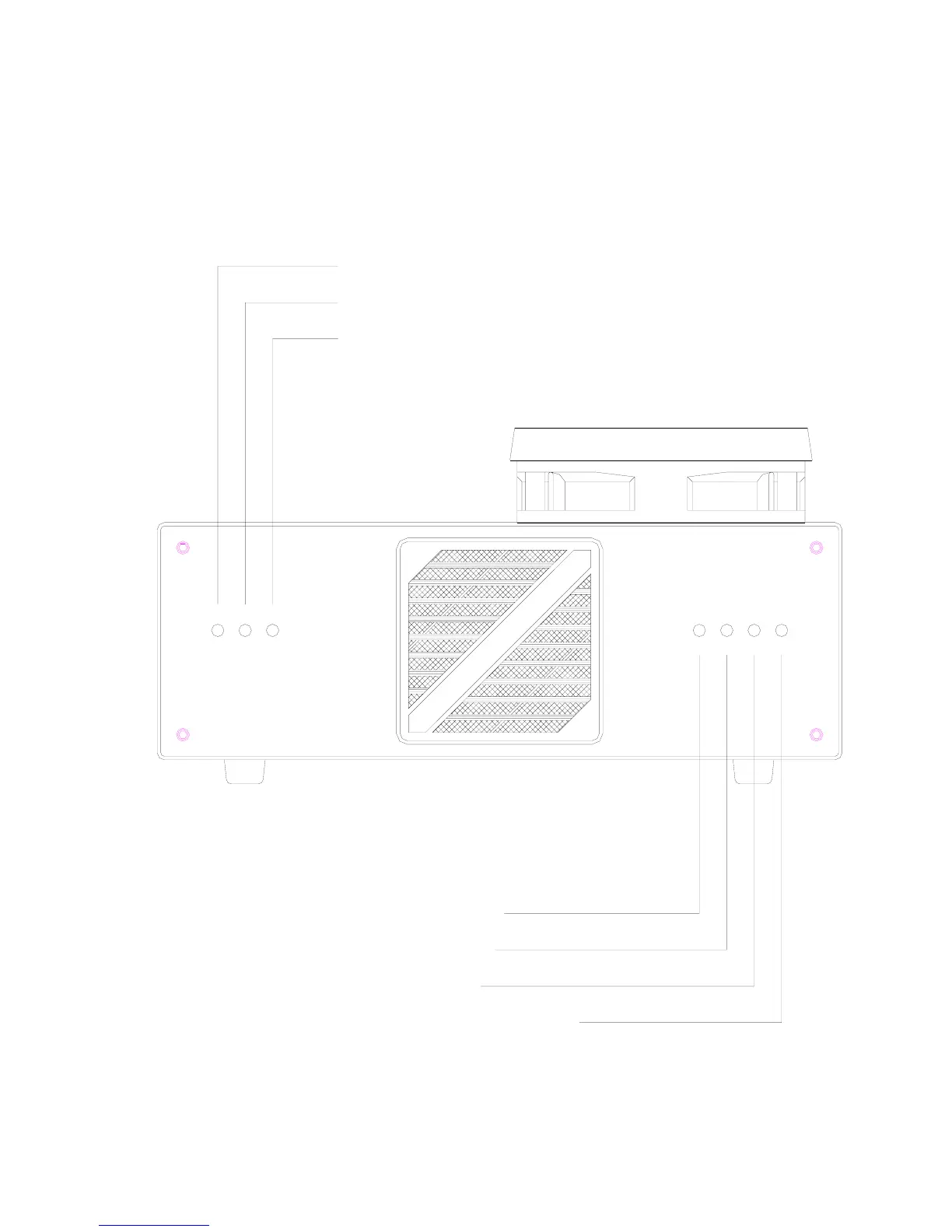

THERMOCODE SERIES 2 (Power Supply LED details)
24 VOLT PRINTHEAD OPERATION LED
PRINTHEAD 24 VOLT SUPPLY LED
PRINT INPUT SIGNAL LED
STEPPER MOTOR 40 VOLT SUPPLY LED
POWER SUPPLY 5 VOLT LED
PRINTER 5 VOLT SUPPLY LED
PRINTER DISPLAY 9 VOLT LED
24v
PH
OP
PH
SIG
IP
PR
9v
PR
5v
PS
5v
M
40v
