Open Technologies S.r.l.
10. INSTALLATION
Before the installation the 3D scanner must be taken out of the cardboard box and freed from the auto-shaping
foam cushions. Please keep all this material for the whole guarantee term.
All packing material must be disposed of according to the law in force.
1.5. CLAMPING/ANCHORAGE AND VIBRATION DAMPING INSTRUCTIONS
The 3D scanner supports must rest on a perfectly horizontal flat surface (leveling the machine). The supporting
surface must be at a certain height from the ground so that the scanning internal surface is between 800 and
1000 mm.
The supporting surface must guarantee the maximum planarity and be able to bear the weight of the machine
and of the scanned objects (total mass 37 kg (daN)).
The scanned pieces are:
Small plaster elements, representing palate or dental arches impressions;
Steel “articulator”, dental instrument that simulates jaw movement (2 kg. max weight).
The supporting surface of the 3D scanner must not lodge equipment and machinery that may produce vibra-
tions.
Rest the 3D scanner only on worktops that are stable, resistant and with a surface
greater than the base.
1.6. REQUIRED SPACE FOR USE AND MAINTENANCE
The use of the scanner requires the presence of an operator in the follow-
ing position:
- Front (Picture 4 [1]) to place and remove the objects to scan.
- The adjustments of the working parameters, the start command and
processing of the scanned images take place in a video terminal station lo-
cated nearby.

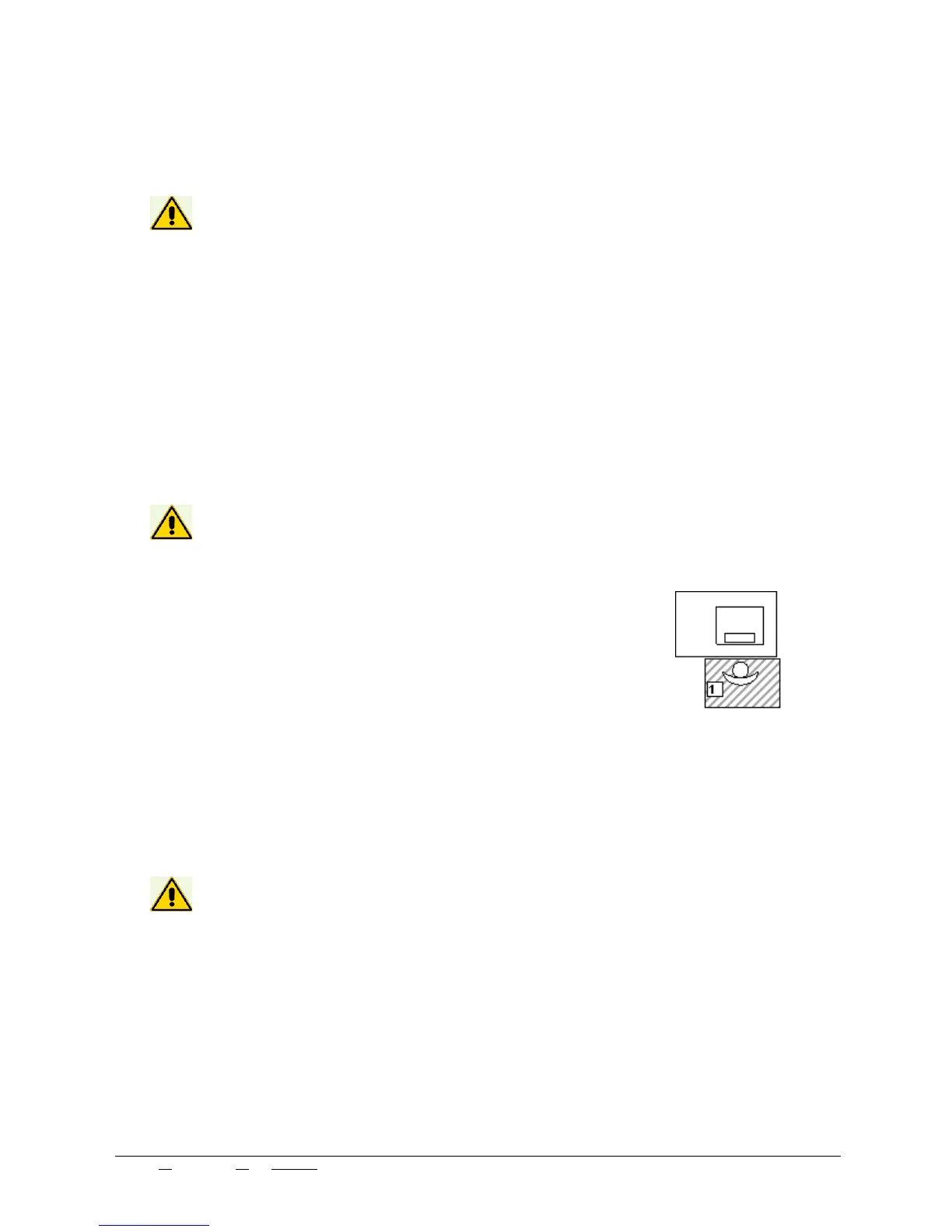

Picture 4 Work Station
The posts for the maintenance of the machine are:
- Front to clean the work top, bed and outer frame.
Keep at least 100 cm of space around, in all directions, around the machine, in order to be able to perform the
cleaning, maintenance and all the necessary adjustments in total safety and with all the space required.
The 3D scanner has an opening on the back to release the internal heat, do not ob-
struct the openings with curtains, paper or by placing the 3D scanner next to pan-
els, walls and shelves.
1.7. ALLOWED ENVIARONMENT CONDITIONS (TEMPERATURE, HUMIDITY,
VIBRATINS, ELECTROMAGNETIC RADIATIONS)
Environment conditions for a correct functioning of the machine are:
- temperature between 0° and +40°C;
- humidity between 20% and 80%.
Where the 3D scanner is installed, the room must be free of dust and suspended aerosol.
Keep the scanner away from heat sources, direct sunlight or radiators.
Edit N°: 00 - Rev. N°: 01 of 07/17/17 USE INSTRUCTIONS MANUAL
Nome file: NeWay User Manual 2017 rev01.odt Pag. 12 di 26
