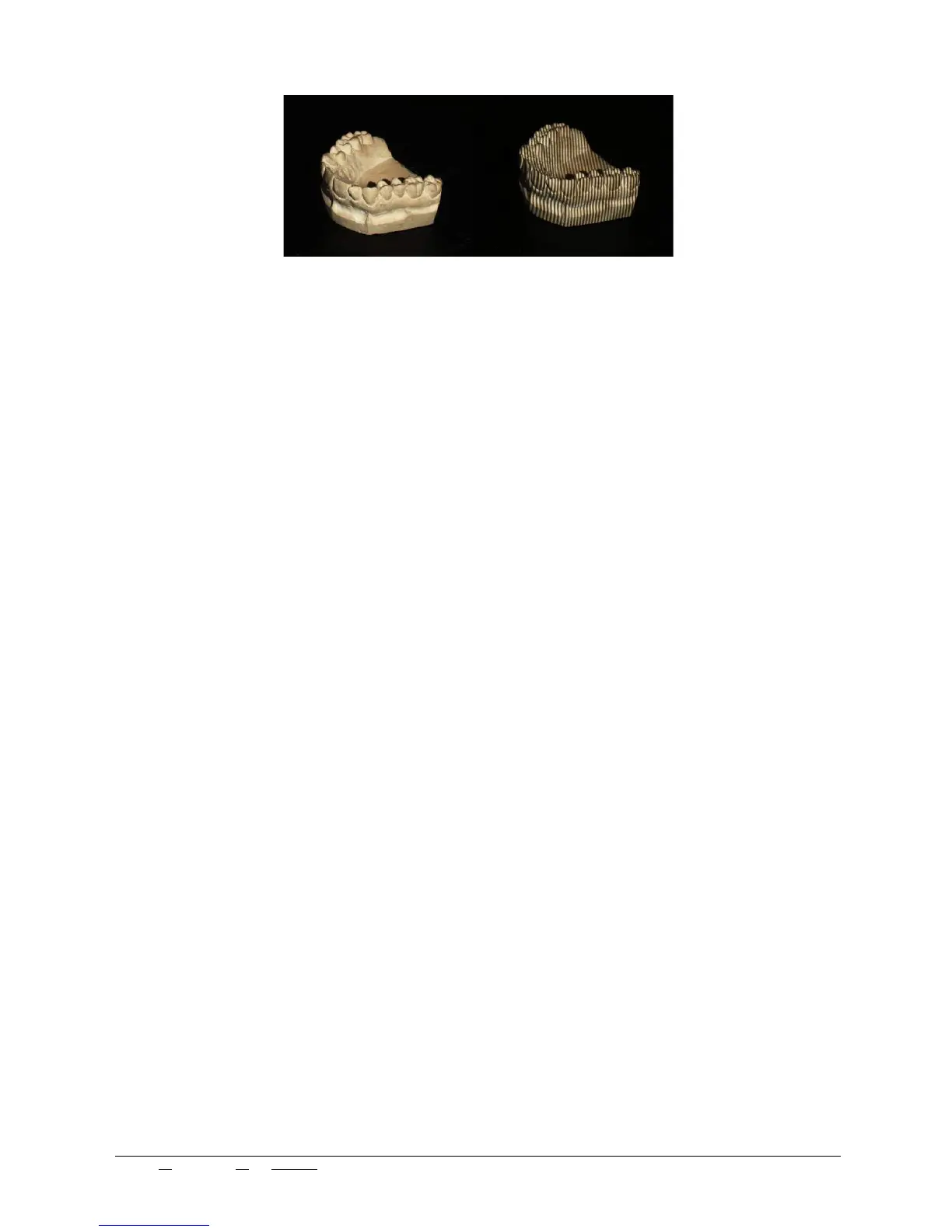

A) B)
3D optical scan Principle:
A) Original object to acquire
B) projection of light patterns for 3D reconstruction.
Advanced image processing algorithms retrieve depth data of the acquired surface. This approach guarantees
high performances, flexibility and fast execution.
NeWay was specifically created to operate successfully in the dental field. The whole scanning phase is totally
computerized and is performed with the aid of a mechanical rotating table that allows the acquisition of different
views of the object. Thanks to this system, you can digitize very quickly models, dies, implants, impressions, ar-
ticulators, waxups and much more.
6. GLOSSARY
The terms used in this manual have the following meanings:
- 3D scanner – a machine created to acquire 3D images of opaque, solid objects;
- Bedplate – lower supporting structure, composed of screwed on steel plates;
- Rotating clasp – a support for the objects to be scanned located inside the equipment and having an inter-
mittent, rotating movement.
- Tilting – rotating table movement that allows an excursion of 40° in both directions starting from point zero.
- Optical head – the component housing the optoelectronic components (2 black and white cameras and a
DMD projector) which allow the acquisition of the object surface;
- Electric motor – actuator which rotates the rotating table;
- Electric panel – power device with a sectioning switch;;
- Exposed person – any person within the whole or part of the danger zone;
- Operator – people who have to install, operate, adjust, perform maintenance, clean, repair and transport
correctly the machine having received all the relative instructions and read this manual.
Edit N°: 00 - Rev. N°: 01 of 07/17/17 USE INSTRUCTIONS MANUAL
Nome file: NeWay User Manual 2017 rev01.odt Pag. 6 di 26
