GSM/3G User Manual
57 | 82
product, you don’t need to worry about it. You can combine many GSM or SIP to groups.
Then if you want to make a call, it will find available port automatically.

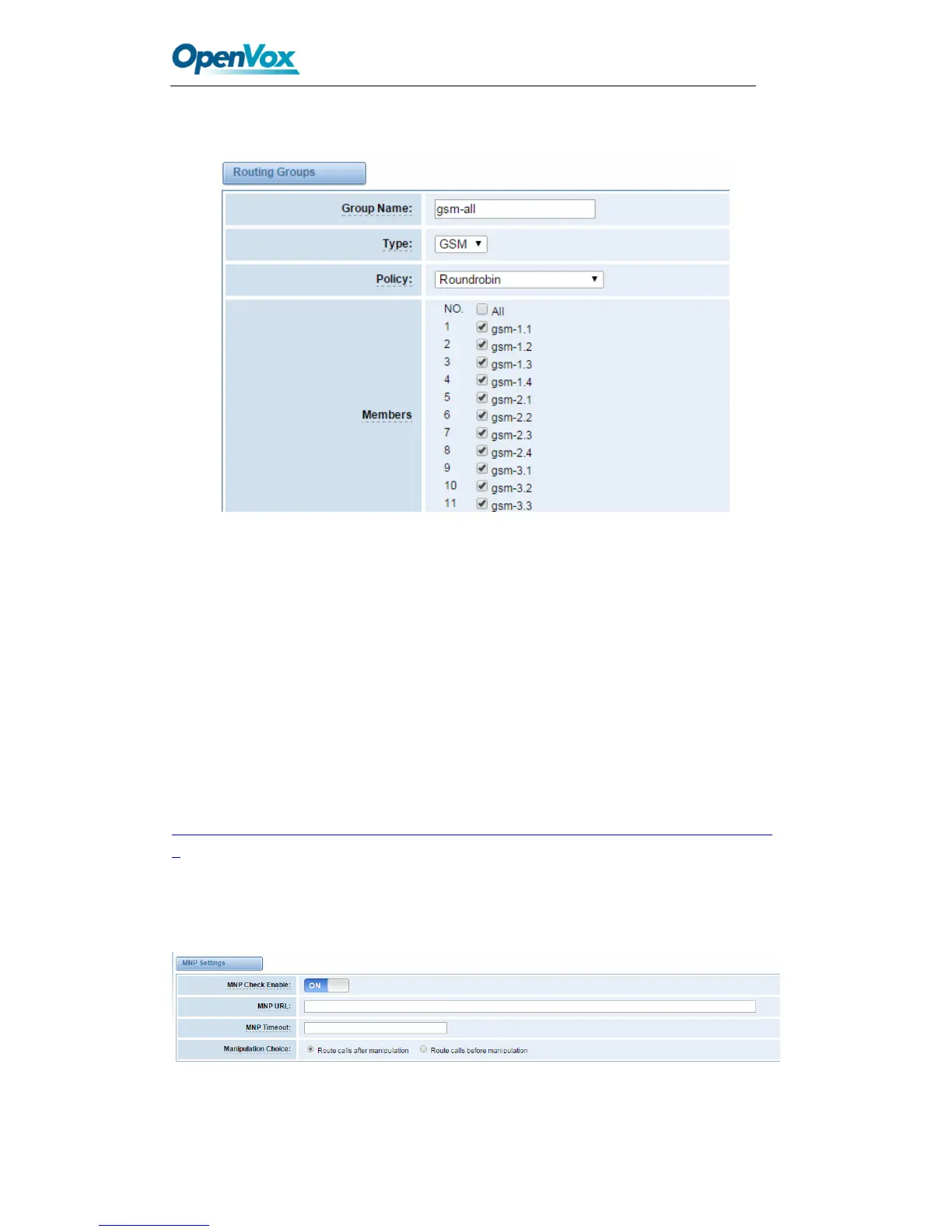

Figure 5-5 Routing Group
MNP Settings
Mobile Number Portability allows switching between mobile phone operators without
changing the mobile number. Sounds simple, but there are loads of tasks performed
behind the scene at the operator end.
The URL is shown in the password string way. So please type the url in other place such
a txt file, check it, then copy it to the gateway. The outgoing number in the url should be
replaced by the variables ${num}.
Here is an example of the MNP url:
https://s1.bichara.com.br:8181/chkporta.php?user=832700&pwd=sdsfdg&tn=838816690
2
The 8388166902 is the outgoing phone number, when config the MNP url, should replce
it with ${num}. Then it turns to
https://s1.bichara.com.br:8181/chkporta.php?user=832700&pwd=sdsfdg&tn=${num}.
Figure 5-6 MNP Settings
