INSTALLATION
6

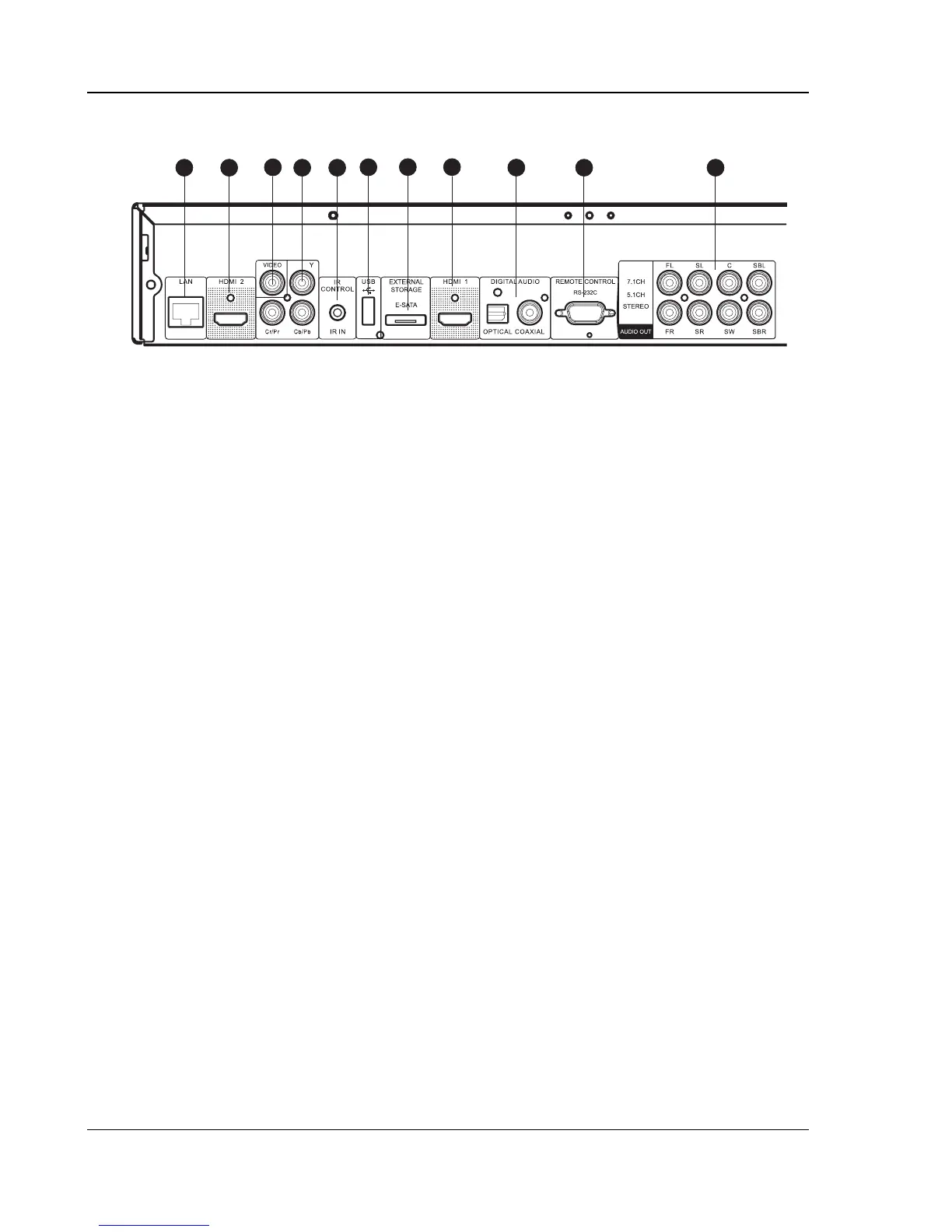

Rear Panel Connectors
1 2
3
4 5
6
7 8
9
10 11
1. Ethernet LAN Port
2. HDMI 2 Output (3D Compatible)
3. Composite Video Output
4. Component Video Output
5. IR IN Port
6. USB 2.0 Port
7. e-SATA Port
8. HDMI 1 Output (3D Compatible)
9. Coaxial and Optical Digital Audio
Output
10. RS-232C Port
11. 7.1CH / 5.1CH / STEREO Audio
Output
In addition to the above connectors, the AC power inlet is also located on the rear panel. The inlet is the
IEC60-320 C14 type. Only the included AC power cord or an approved power cord with an IEC60-320 C13
type plug should be used.
