5.2 Exploded view of AF16-HT-F / AF16-HT-N sensor

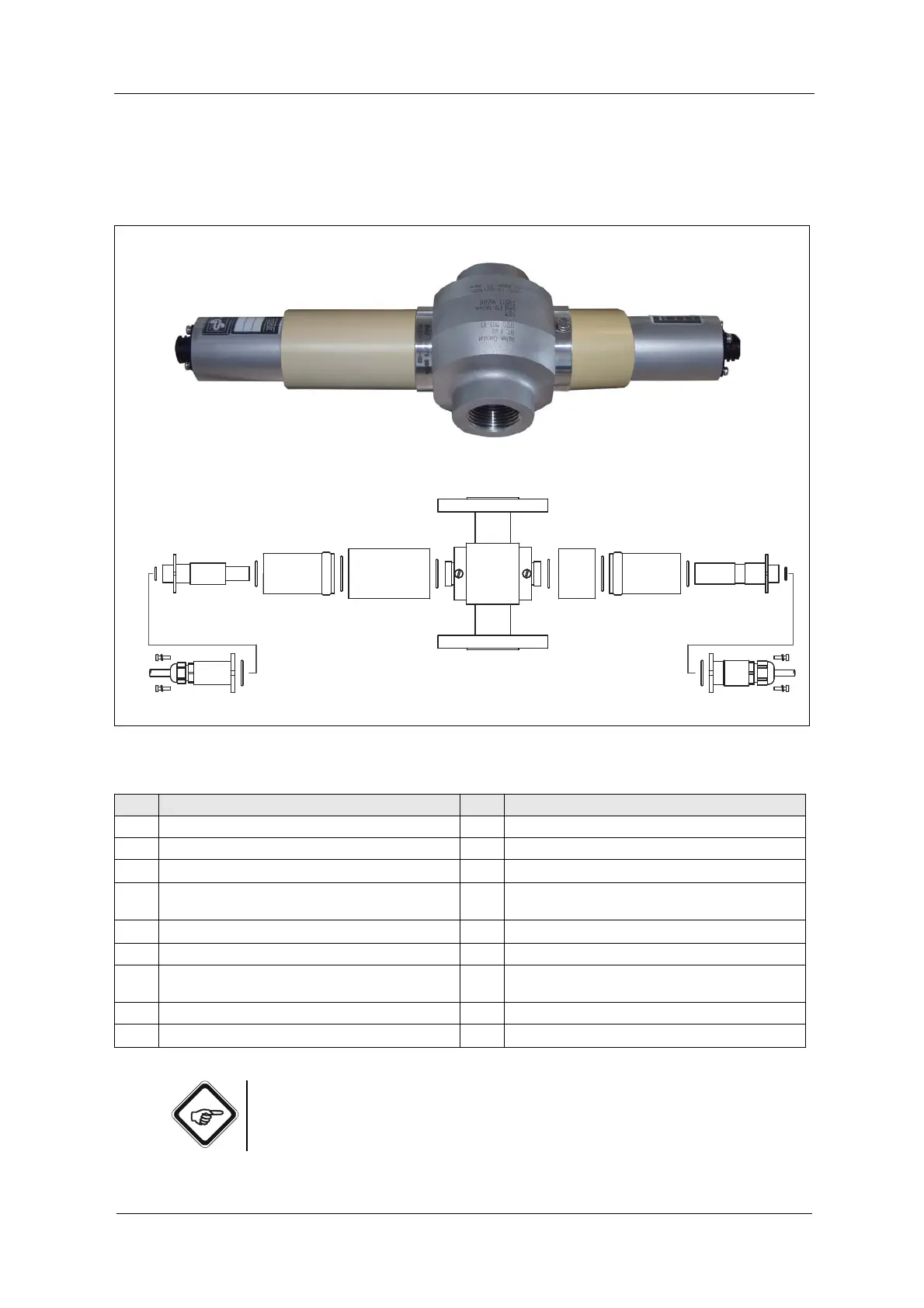

Fig. 4 Photo and exploded view of AF16-HT-F / AF16-HT-N
Note!
For AF16-HT-F / AF16-HT-N, the cable set always has to be equipped with plug
protector.
16 15 7
8 76593422
7
5312 76
17 16
13 9
1
Tab. 5 Exploded view explanations
No. Explanation No. Explanation
1 Sensor body 10 -
2 Window ring M24 x 1.5, incl. 8 screws M5 11 -
3
O-Ring 25.12 x 1.78, Viton
®
12 Detector adapter AF16-HT, PEEK
4
Lamp adapter AF16-HT, PEEK,
incl. optics module AF16-HT
13 Detector module AF16-HT-F or AF16-HT-N
5
O-Ring 31.47 x 1.78, Viton
®
14 -
6 Optical housing OP06, 1.4571 (316 Ti) 15 Lamp cable with SS plug protector
7
O-Ring 21.95 x 1.78, Viton
®
16
4 screws M3 x 12 (DIN 7985), 1.4571 (316 Ti), incl.
washer
8 Lamp module AF16 17 Detector cable with SS plug protector
9
O-Ring 10.10 x 1.60, Viton
®
