Optek AF16 - Exploded view of AF16-HT-PV-F; AF16-HT-PV-N sensor

Technical data and exploded views
- 17 -
optek-Manual--1004-2001-02--AF16-US-2011-01-04
www.optek.com
5.8 Exploded view of AF16-HT-PV-F / AF16-HT-PV-N sensor

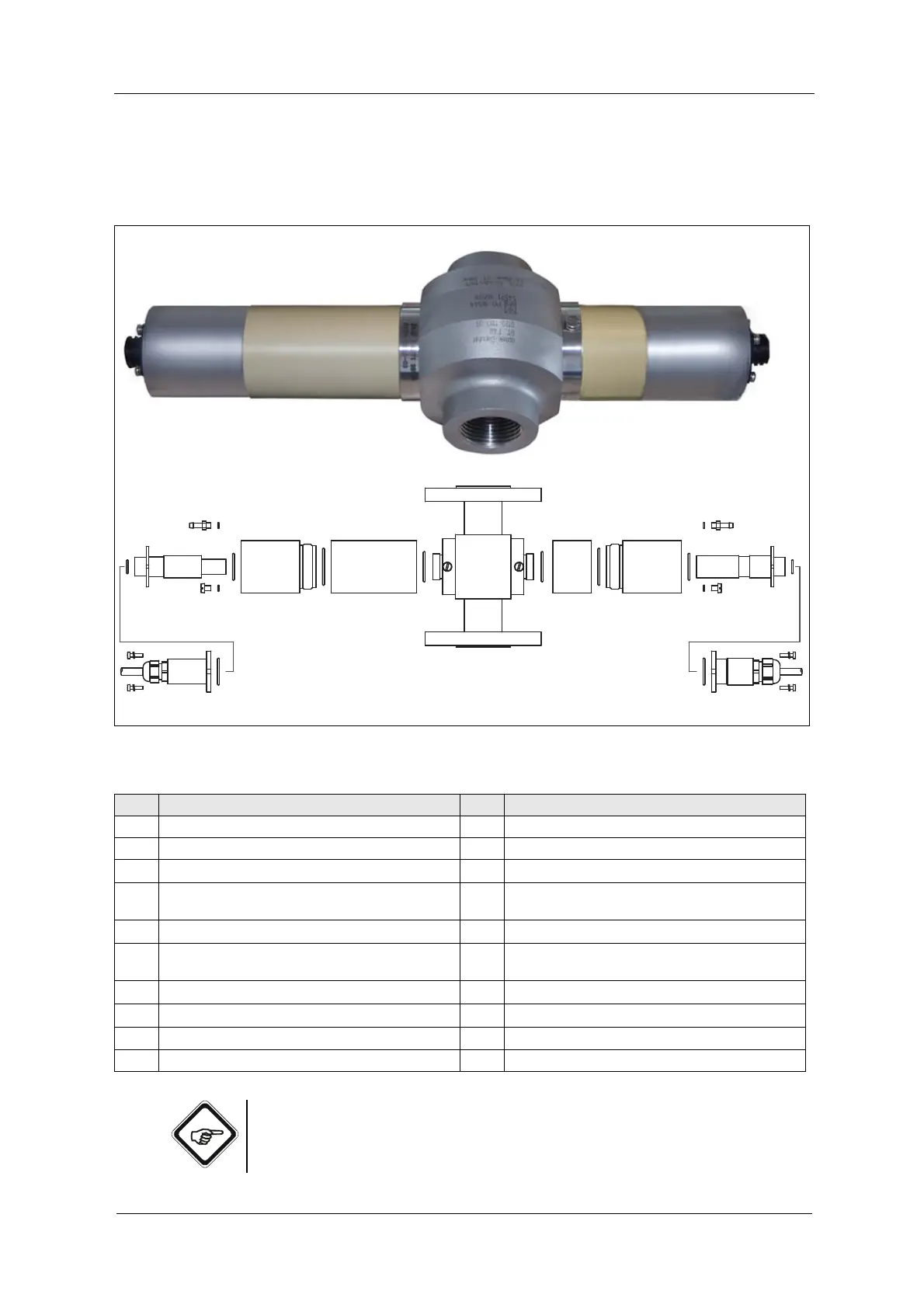

Fig. 10 Photo and exploded view of AF16-HT-PV-F / AF16-HT-PV-N
Note!
For AF16-HT-PV-F / AF16-HT-PV-N, the cable set always has to be equipped
with plug protector.
16 15 7
8 76593422
7
5312 76
17 16
13 9
18 19
18 20
19 18
20 18
1
Tab. 11 Exploded view explanations
No. Explanation No. Explanation
1 Sensor body 11 -
2 Window ring M24 x 1.5, incl. 8 screws M5 12 Detector adapter AF16-HT, PEEK
3
O-Ring 25.12 x 1.78, Viton
®
13 Detector module AF16-HT-F or AF16-HT-N
4 Lamp adapter AF16-HT, PEEK,
incl. optics module AF16-HT
14 -
5
O-Ring 31.47 x 1.78, Viton
®
15 Lamp cable with SS plug protector
6 Optical housing OP06 Purge, 1.4571 (316 Ti) 16 4 screws M3 x 12 (DIN 7985), 1.4571 (316 Ti), incl.
washer
7
O-Ring 21.95 x 1.78, Viton
®
17 Detector cable with SS plug protector
8 Lamp module AF16 18
O-Ring 4.00 x 1.00, Viton
®
9
O-Ring 10.10 x 1.60, Viton
®
19 Screw M5 x 6 (DIN 84), 1.4571 (316 Ti)
10 - 20 Purge connection M5, Ms / Ni
