5.7 Exploded view of AF16-PV-F / AF16-PV-N sensor

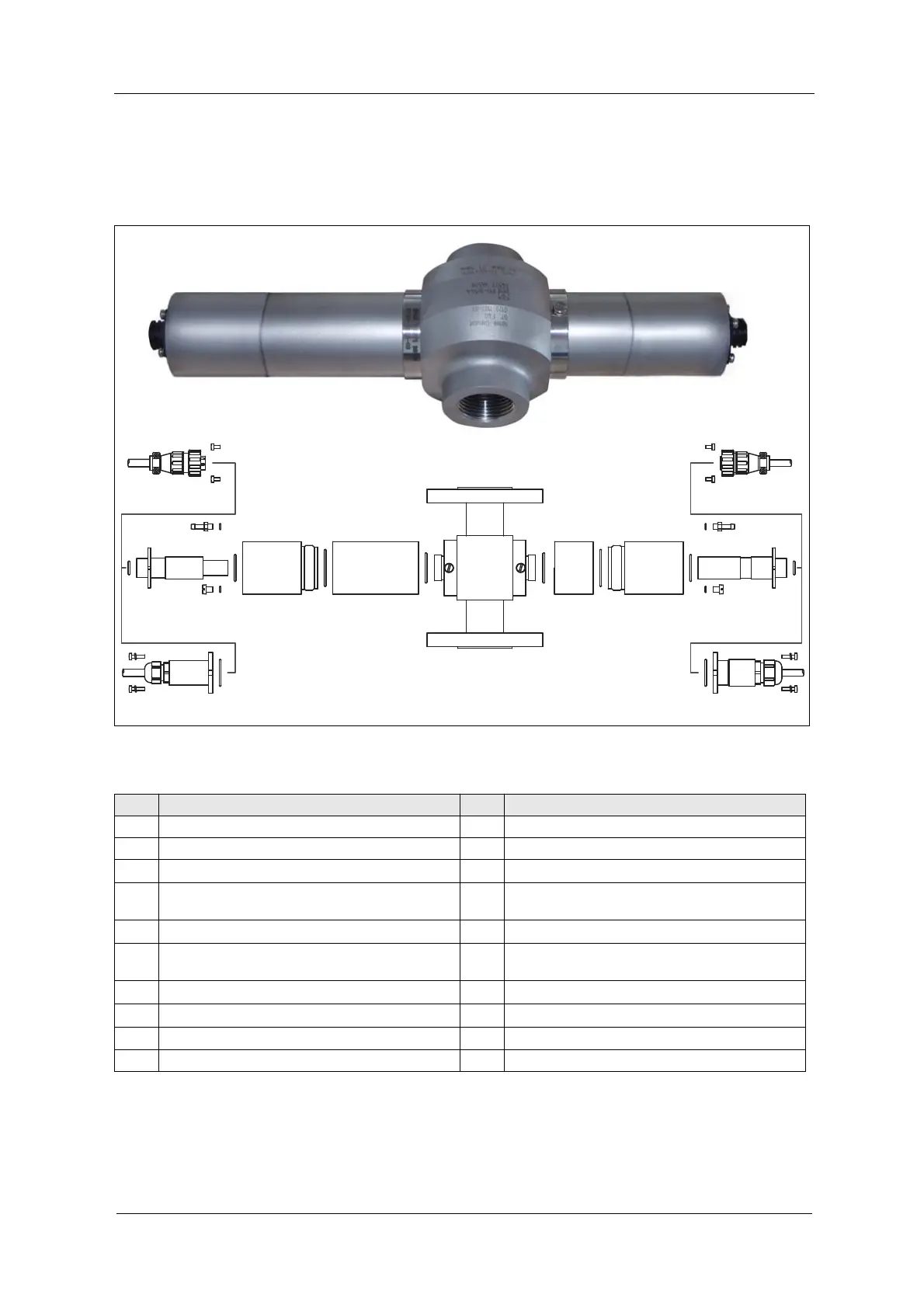

Fig. 9 Photo and exploded view of AF16-PV-F / AF16-PV-N
16 15 7
8 765
11 10
93422
7
5312 76
17 16
13 9
10 14
18 19
18 20
19 18
20 18
1
Tab. 10 Exploded view explanations
No. Explanation No. Explanation
1 Sensor body 11 Lamp cable AF16
2 Window ring M24 x 1.5, incl. 8 screws M5 12 Detector adapter AF16, 1.4571 (316 Ti)
3
O-Ring 25.12 x 1.78, Viton
®
13 Detector module AF16-F or AF16-N
4 Lamp adapter AF16, 1.4571 (316 Ti),
incl. optics module AF16
14 Detector cable AF16
5
O-Ring 31.47 x 1.78, Viton
®
15 Lamp cable with SS plug protector
6 Optical housing OP06 Purge, 1.4571 (316 Ti) 16 4 screws M3 x 12 (DIN 7985), 1.4571 (316 Ti), incl.
washer
7
O-Ring 21.95 x 1.78, Viton
®
17 Detector cable with SS plug protector
8 Lamp module AF16 18
O-Ring 4.00 x 1.00, Viton
®
9
O-Ring 10.10 x 1.60, Viton
®
19 Screw M5 x 6 (DIN 84), 1.4571 (316 Ti)
10 4 screws M3 x 6 (DIN 7985), 1.4571 (316 Ti) 20 Purge connection M5, Ms / Ni
