9.2 Exchange of the lamp module
Tool • Screw driver
1. Switch the converter voltage-free.
2. Loosen the sensor cable from the lamp module.
3. Loosen the four screws connecting the lamp module to the stainless steel
housing.
4. Pull out the lamp module (8, fig. 22).
5. Check if there is an O-Ring (7) for the lamp module.
6. Insert the new lamp module into the sensor.
7. Fasten the four screws.
8. Re-connect the sensor cable.
9. Switch on the converter.
10. Follow the instructions given in chapter 9.4, page 34.

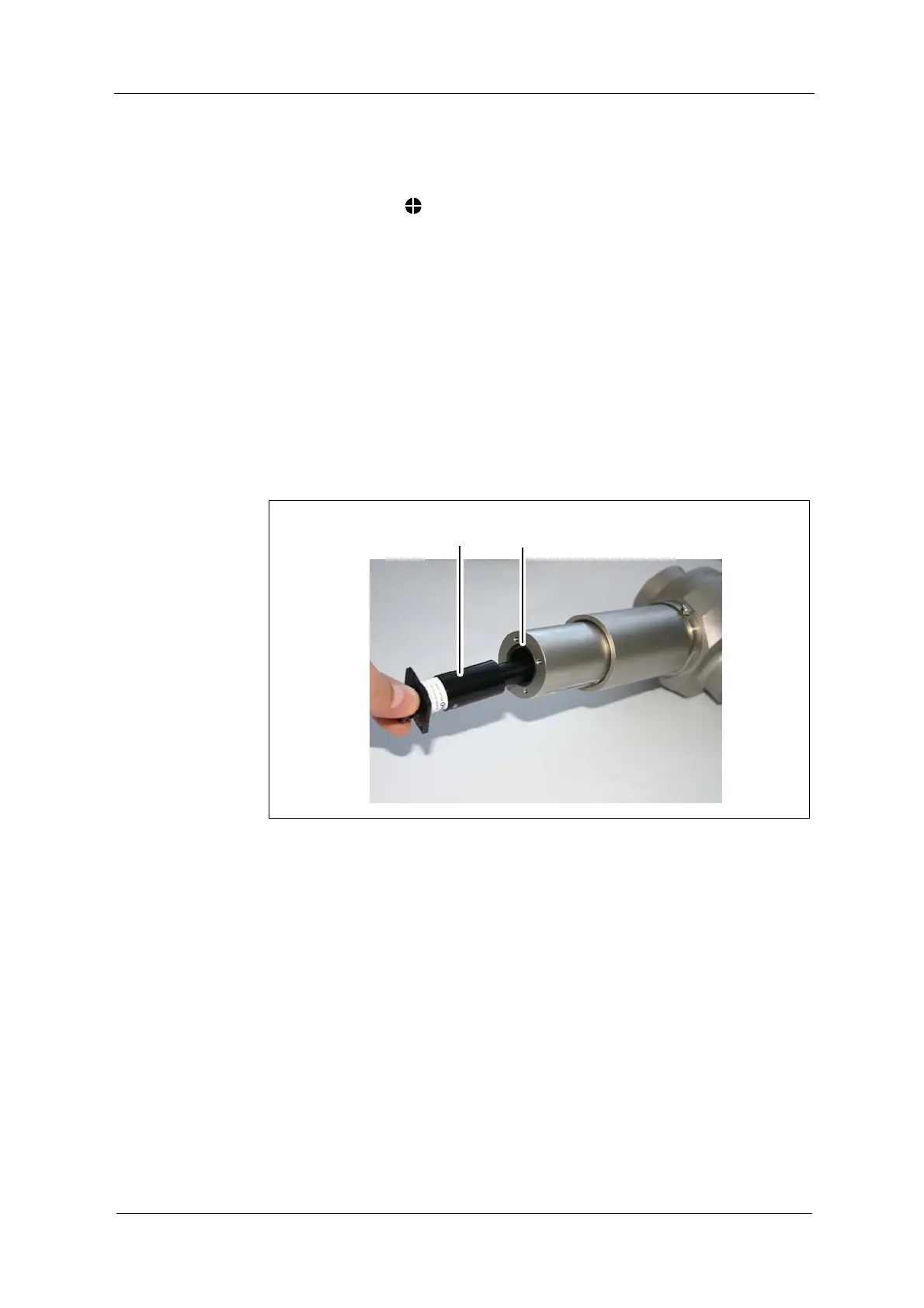

Fig. 22 Exchange of the lamp module
