5.9 Exploded view of AF16-VA-PV-F / AF16-VA-PV-N sensor

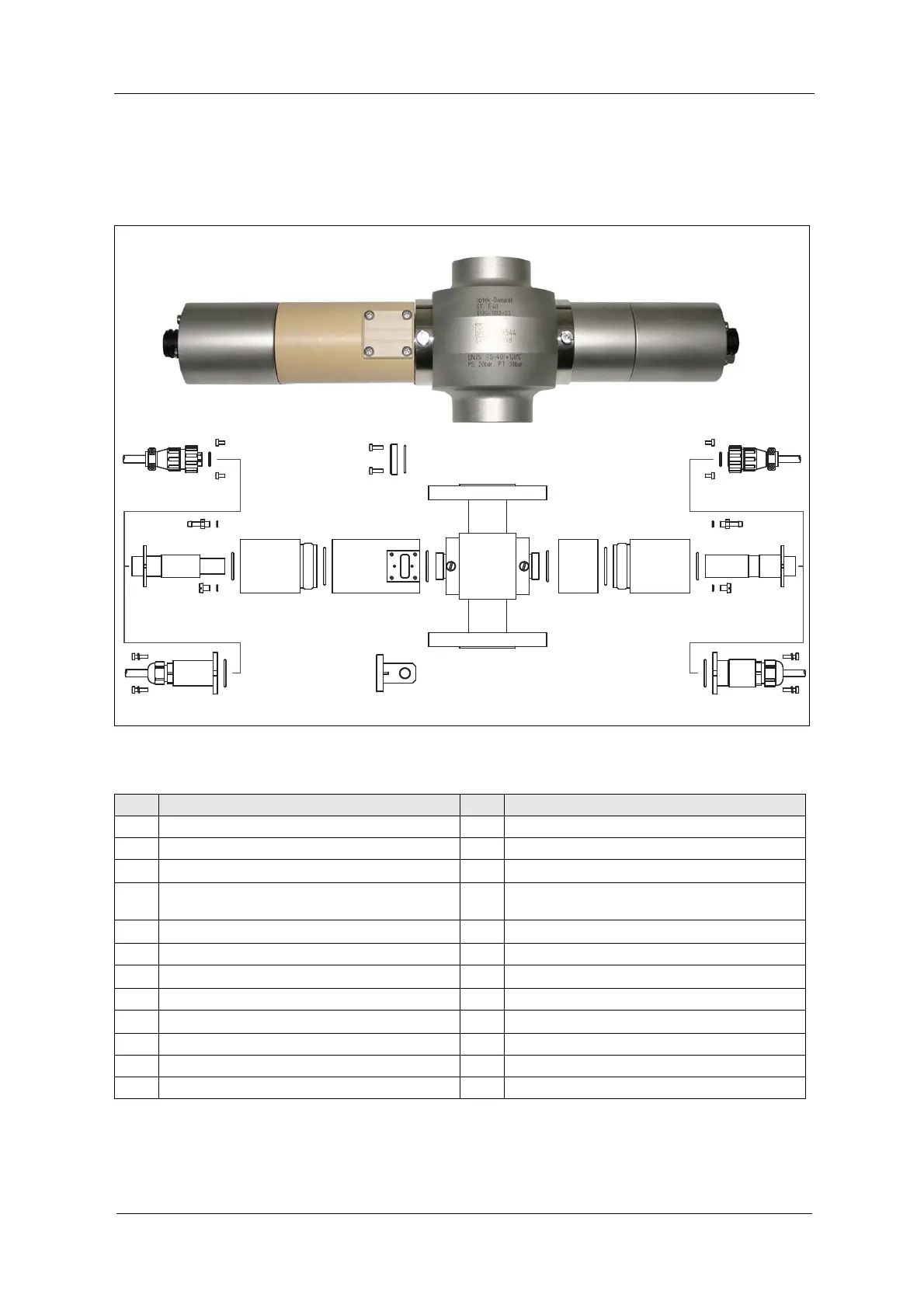

Fig. 11 Photo and exploded view of AF16-VA-PV-F / AF16-VA-PV-N
16 15 7
8765
11 10 9
3422
7
5312 76
17 16
13
910 14
21 22
21 23
22 21
23 21
1819 7
20
1
Tab. 12 Exploded view explanations
No. Explanation No. Explanation
1 Sensor body 13 Detector module AF16-F or AF16-N
2 Window ring M24 x 1.5, incl. 8 screws M5 14 Detector cable AF16
3
O-Ring 25.12 x 1.78, Viton
®
15 Lamp cable with SS plug protector
4 Lamp adapter AF16-HT-VA, PEEK,
incl. optics module AF16-HT
16 4 screws M3 x 12 (DIN 7985), 1.4571 (316 Ti), incl.
washer
5
O-Ring 31.47 x 1.78, Viton
®
17 Detector cable with SS plug protector
6 Optical housing OP06 Purge, 1.4571 (316 Ti) 18 Sealing cover FH01
7
O-Ring 21.95 x 1.78, Viton
®
19 4 screws M3 x 10 (DIN 7985), 1.4571 (316 Ti)
8 Lamp module AF16 20 Validation filter in FH01
9
O-Ring 10.10 x 1.60, Viton
®
21
O-Ring 4.00 x 1.00, Viton
®
10 4 screws M3 x 6 (DIN 7985), 1.4571 (316 Ti) 22 Screw M5 x 6 (DIN 84), 1.4571 (316 Ti)
11 Lamp cable AF16 23 Purge connection M5, Ms / Ni
12 Detector adapter AF16, 1.4571 (316 Ti)
