Optek AF16 - Exploded view of AF16-HT-VA-F; AF16-HT-VA-N sensor

Technical data and exploded views
- 13 -
optek-Manual--1004-2001-02--AF16-US-2011-01-04
www.optek.com
5.4 Exploded view of AF16-HT-VA-F / AF16-HT-VA-N sensor

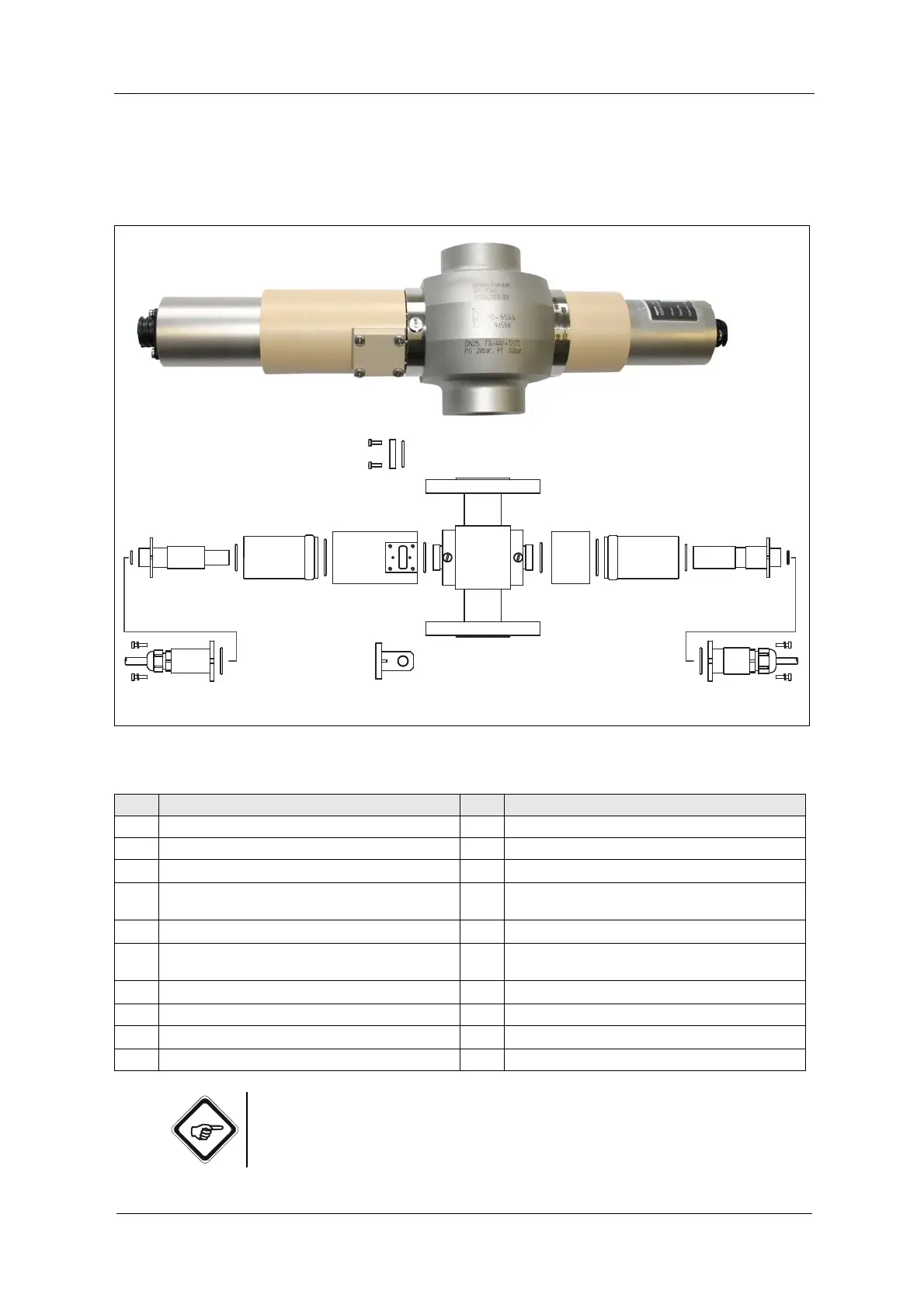

Fig. 6 Photo and exploded view of AF16-HT-VA-F / AF16-HT-VA-N
Note!
For AF16-HT-VA-F / AF16-HT-VA-N, the cable set always has to be equipped
with plug protector.
16 15 7
8 76593422
7
5312 76
17 16
13 9
1819 7
20
1
Tab. 7 Exploded view explanations
No. Explanation No. Explanation
1 Sensor body 11 -
2 Window ring M24 x 1.5, incl. 8 screws M5 12 Detector adapter AF16-HT, PEEK
3
O-Ring 25.12 x 1.78, Viton
®
13 Detector module AF16-HT-F or AF16-HT-N
4 Lamp adapter AF16-HT-VA, PEEK, incl. optics
module AF16-HT
14 -
5
O-Ring 31.47 x 1.78, Viton
®
15 Lamp cable with SS plug protector
6 Optical housing OP06, 1.4571 (316 Ti) 16 4 screws M3 x 12 (DIN 7985), 1.4571 (316 Ti), incl.
washer
7
O-Ring 21.95 x 1.78, Viton
®
17 Detector cable with SS plug protector
8 Lamp module AF16 18 Sealing cover FH01
9
O-Ring 10.10 x 1.60, Viton
®
19 4 screws M3 x 10 (DIN 7985), 1.4571 (316 Ti)
10 - 20 Validation filter in FH01
