Optek AF16 - Exploded view of AF16-HT-VB-F; AF16-HT-VB-N sensor

Technical data and exploded views
- 15 -
optek-Manual--1004-2001-02--AF16-US-2011-01-04
www.optek.com
5.6 Exploded view of AF16-HT-VB-F / AF16-HT-VB-N sensor

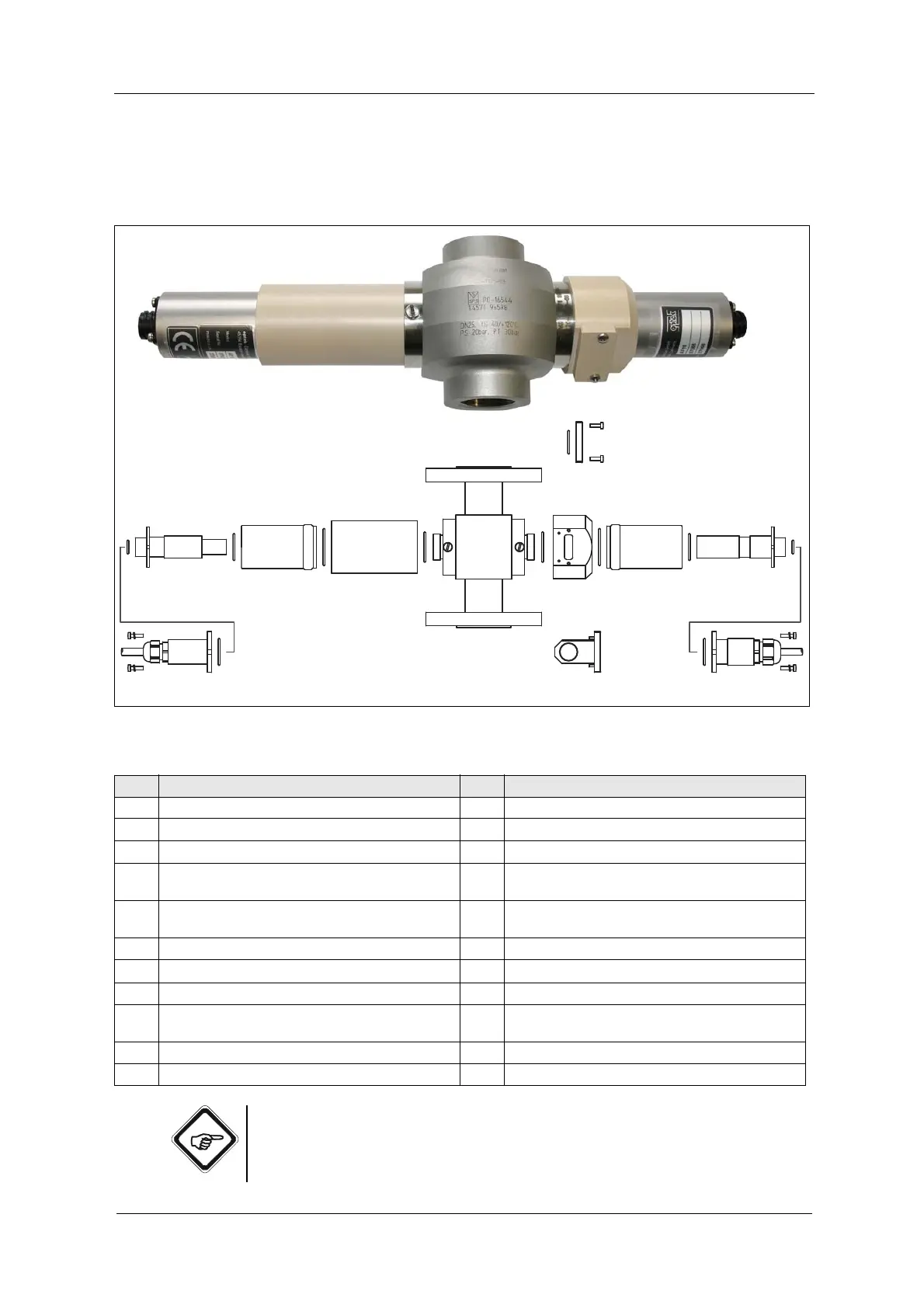

Fig. 8 Photo and exploded view of AF16-HT-VB-F / AF16-HT-VB-N
Note!
For AF16-HT-VB-F / AF16-HT-VB-N, the cable set always has to be equipped
with plug protector.
16 15 7
876593422
7
5312 76
17 16
13 9
18 19 20
21
1
Tab. 9 Exploded view explanations
No. Explanation No. Explanation
1 Sensor body 12 Detector adapter AF16-HT-VB, PEEK
2 Window ring M24 x 1.5, incl. 8 screws M5 13 Detector module AF16-HT-F or AF16-HT-N
3
O-Ring 25.12 x 1.78, Viton
®
14 -
4 Lamp adapter AF16-HT, PEEK,
incl. optics module AF16-HT
15 Lamp cable with SS plug protector
5
O-Ring 31.47 x 1.78, Viton
®
16 4 screws M3 x 12 (DIN 7985), 1.4571 (316 Ti), incl.
washer
6 Optical housing OP06, 1.4571 (316 Ti) 17 Detector cable with SS plug protector
7
O-Ring 21.95 x 1.78, Viton
®
18
O-Ring 18.77 x 1.78, Viton
®
8 Lamp module AF16 19 Sealing cover FH03
9
O-Ring 10.10 x 1.60, Viton
®
20 2 screws M3 x 10 (DIN 7985), 1.4571 (316 Ti),
(M3 x 12 permitted)
10 - 21 Validation filter in FH03
11 -
