Optek AF16 - Exploded view of AF16-VB-F; AF16-VB-N sensor

Technical data and exploded views
- 14 -
optek-Manual--1004-2001-02--AF16-US-2011-01-04
www.optek.com
5.5 Exploded view of AF16-VB-F / AF16-VB-N sensor

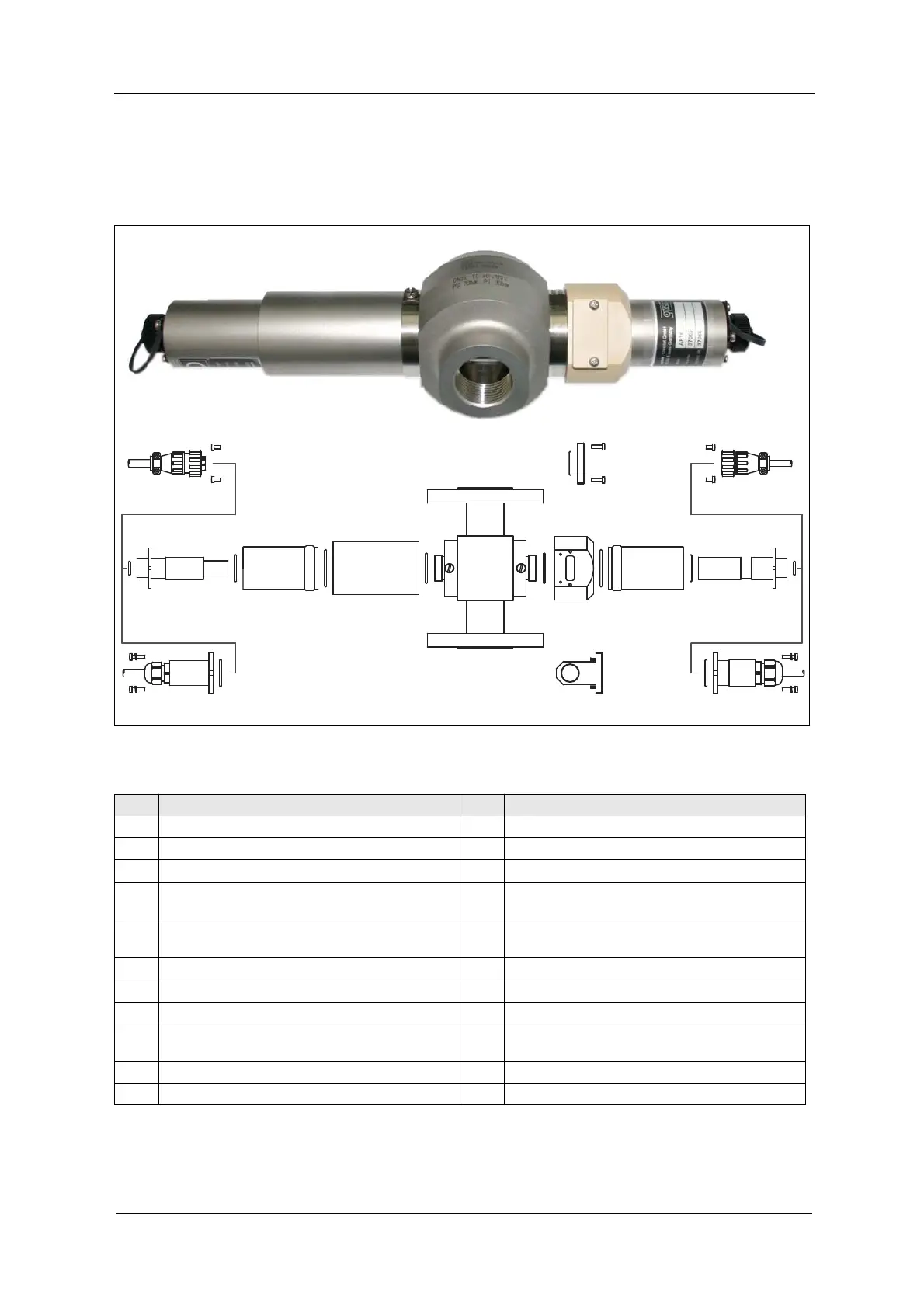

Fig. 7 Photo and exploded view of AF16-VB-F / AF16-VB-N
16 15 7
8765
11 10
93422
7
5312 76
17 16
13 9
10 1418 19 20
21
1
Tab. 8 Exploded view explanations
No. Explanation No. Explanation
1 Sensor body 12 Detector adapter AF16-HT-VB, PEEK
2 Window ring M24 x 1.5, incl. 8 screws M5 13 Detector module AF16-F or AF16-N
3
O-Ring 25.12 x 1.78, Viton
®
14 Detector cable AF16
4
Lamp adapter AF16, 1.4571 (316 Ti),
incl. optics module AF16
15 Lamp cable with SS plug protector
5
O-Ring 31.47 x 1.78, Viton
®
16
4 screws M3 x 12 (DIN 7985), 1.4571 (316 Ti), incl.
washer
6 Optical housing OP06, 1.4571 (316 Ti) 17 Detector cable with SS plug protector
7
O-Ring 21.95 x 1.78, Viton
®
18
O-Ring 18.77 x 1.78, Viton
®
8 Lamp module AF16 19 Sealing cover FH03
9
O-Ring 10.10 x 1.60, Viton
®
20
2 screws M3 x 10 (DIN 7985), 1.4571 (316 Ti), (M3 x
12 permitted)
10 4 screws M3 x 6 (DIN 7985), 1.4571 (316 Ti) 21 Validation filter in FH03
11 Lamp cable AF16
