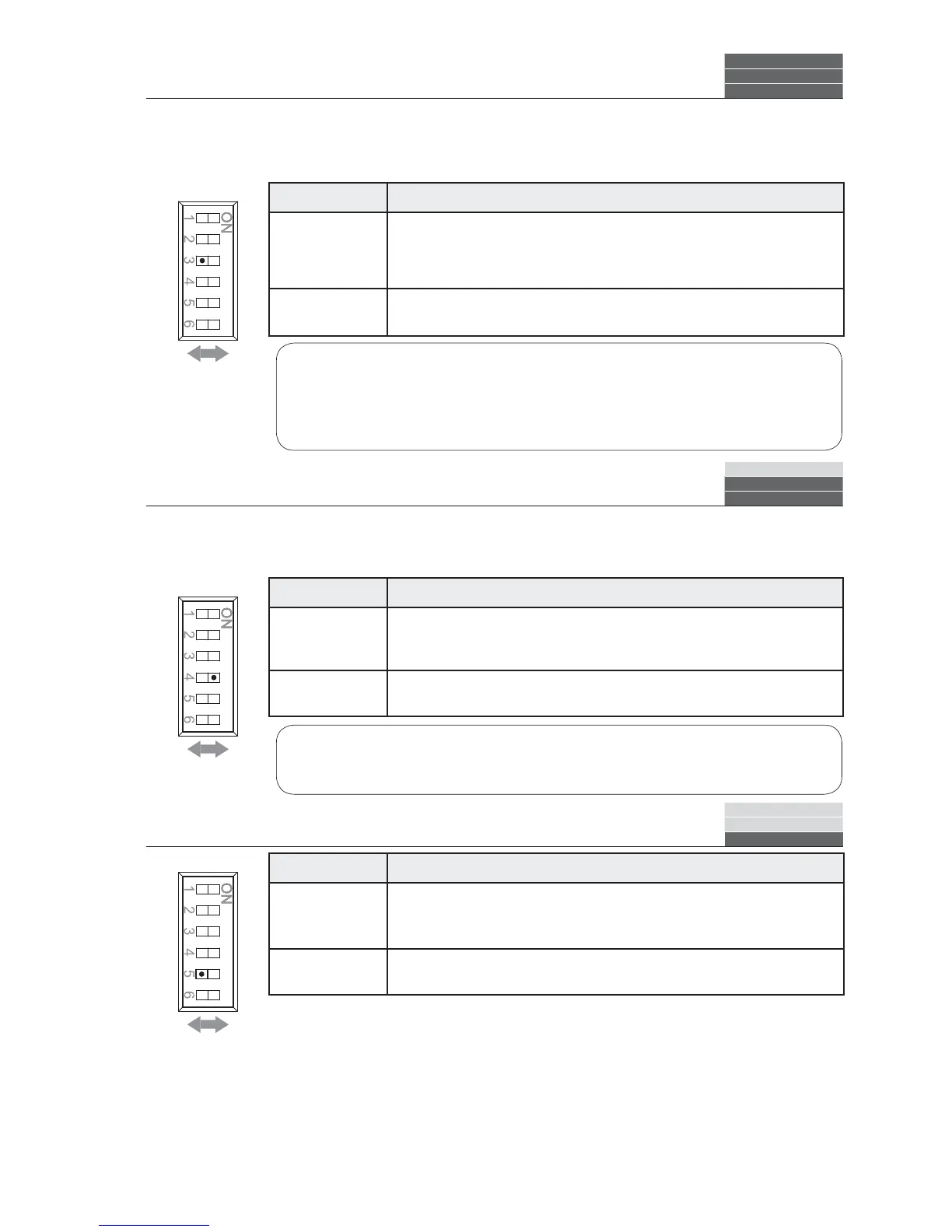

-AUX INPUT DIP switch
3
HX-40
HX-40AM
HX-40DAM
By connecting a satellite unit (another warning sensor), you can extend the detection area
and correct false alarms. As a satellite unit, you can use any general no-voltage contact
output (NC) warning sensor, including the following.
<Infrared (AIR) sensors, thermal line (PIR) sensors, universal magnet switches, etc.>
POSITION FUNCTION
AND
(Factory
default)
When both the main unit and the satellite detect someone, the
alarm is output.
Set to this when not connecting a satellite unit.
OR
When either the main unit or the satellite detects someone,
the alarm is output.
Notes>>
The alarm does not output unless both the main unit and the satellite
detect someone within 60 sec.
If the OR mode is selected without a satellite unit connected, the alarm
is generated continuously.
•
•
-TROUBLE OUTPUT DIP switch
4
HX-40
HX-40AM
HX-40DAM
Trouble output is used for anti-masking signal.
When an object is placed close to the lens surface, for a period of more than 180 sec., the IR
Anti-Masking circuit is activated and generates a trouble signal.
POSITION FUNCTION
ON
(Factory
default)
Anti-masking signal is output from TROUBLE OUTPUT
terminal.
OFF
Anti-masking signal is output from both TROUBLE and
ALARM OUTPUT terminal.
Note>>
Use this when not wiring a detected trouble input terminal on the control
panel.
-MICROWAVE IMMUNITY DIP switch
5
HX-40
HX-40AM
HX-40DAM
POSITION FUNCTION
STD
(Factory
default)
MICRO WAVE IMMUNITY logic is not activated.
IMMUNITY
MICRO WAVE IMMUNITY logic is activated. Use this
under harsh environment (e.g. vegetation sway).
AND OR
ONOFF
STD IMMUNITY
- 14 -
