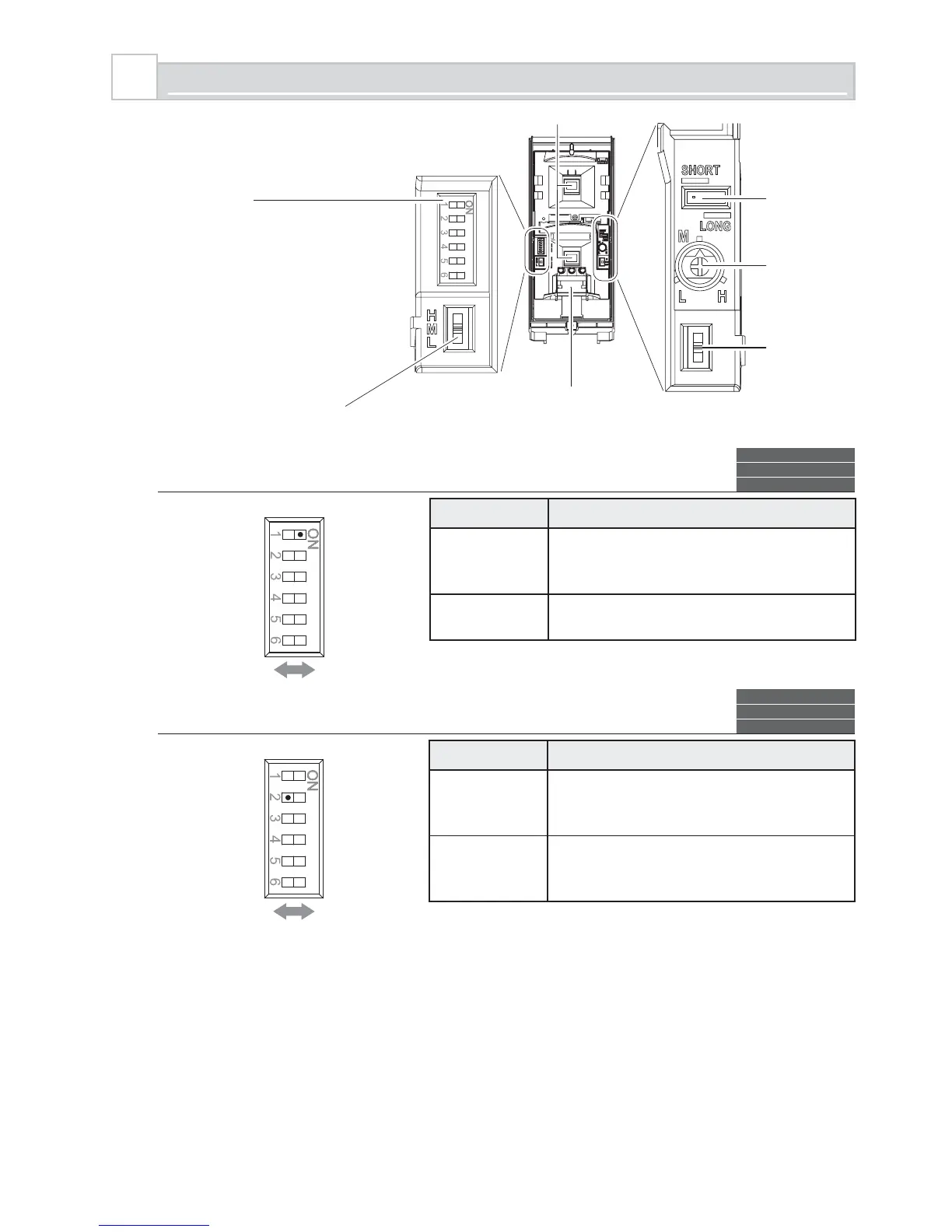

Optex HX-40 - Setting

-LED ON/OFF DIP switch
1
HX-40
HX-40AM
HX-40DAM
POSITION FUNCTION
ON
(Factory
default)
The LED lights when someone is
detected.
OFF
The LED does not light even if
someone is detected.
-PIR IMMUNITY DIP switch
2
HX-40
HX-40AM
HX-40DAM
POSITION FUNCTION
STD
(Factory
default)
PIR IMMUNITY logic is not activated.
IMMUNITY
PIR IMMUNITY logic is activated. Use
this under harsh environment (e.g.
small animal).
4
SETTING
MW range
selector
HI
STD
OFF
MW sensitivity
adjustment
Anti masking
sensitibity
selector
DIP switch
1. LED ON/OFF
2. PIR IMMUNITY
3. AUX INPUT
4. TROUBLE OUTPUT
5. MICROWAVE IMMUNITY
6. (Reserved)
Do not touch
PIR sensitivity selector
STD
IMMUNITY
OFF ON
Do not touch
