Optex HX-40 - 5 Area Adjustment

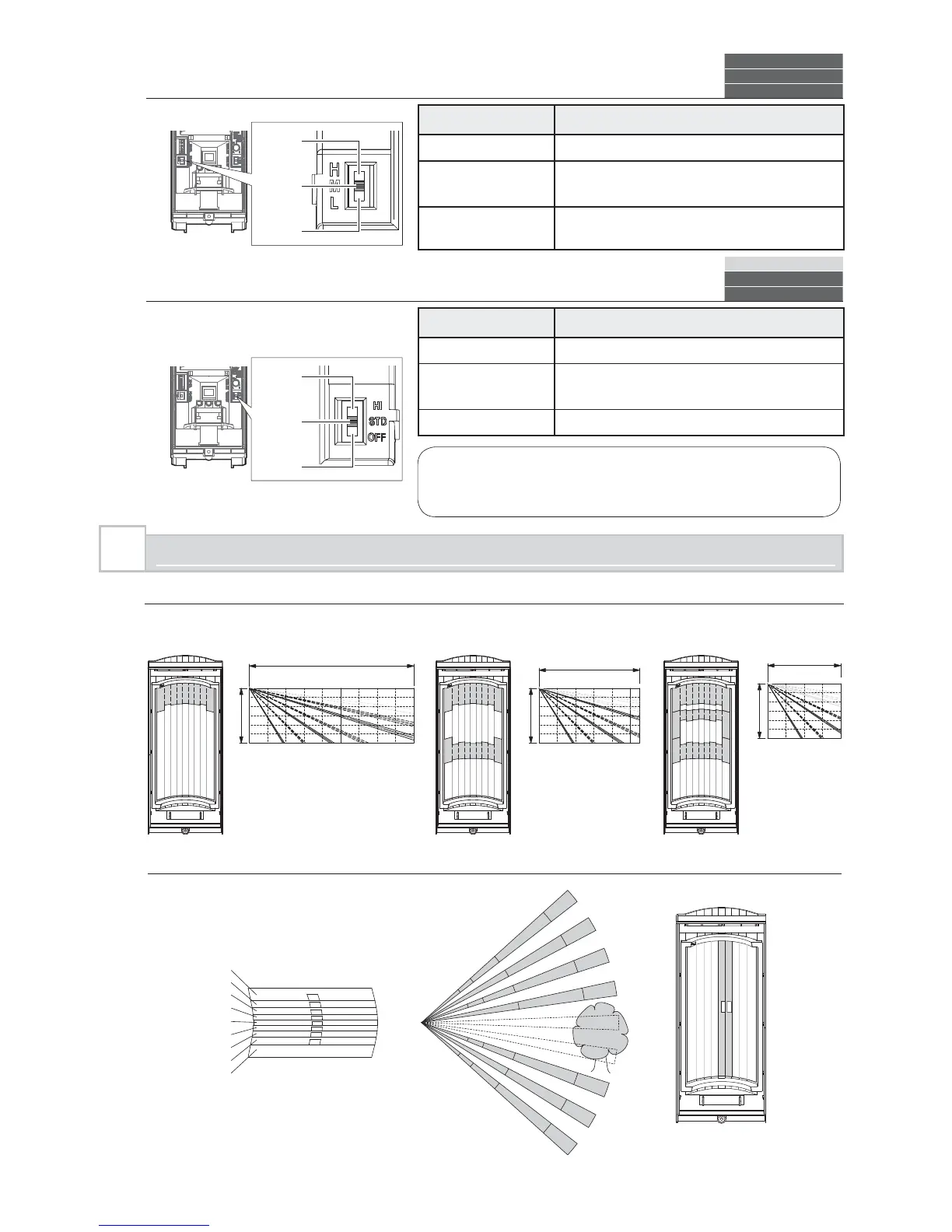

-DETECTION LENGTH ADJUSTMENT
To limit the detection length, apply the appropriate masking seal. Note that there are three
different types of seal.
1
3
2
11
2
-AREA MASKING
1
2
3
4
5
6
7
8
9
0
1
9
2
8
3
7
4
6
5
5
6
-PIR SENSITIVITY
PIR
SENSITIVITY SELECTOR
HX-40
HX-40AM
HX-40DAM
POSITION FUNCTION
HIGH High sensitivity
MIDDLE
(Factory default)
Middle sensitivity
LOW Low sensitivity
-ANTI-MASKING SENSITIVITY
ANTI-MASKING
SENSITIVITY SELECTOR
HX-40
HX-40AM
HX-40DAM
POSITION FUNCTION
HIGH High sensitivity
STD
(Factory default)
Standard sensitivity
OFF Disabled
Caution>>
When closing the cover, do not leave any object within
1 meter from the unit.
HIGH
MIDDLE
LOW
HIGH
STD
OFF
Area masking seal
Pasting on example for
masking No. 5 and No. 6
9.0 m (29'6")
3.0 m (9'10")
5.5 m (18'1")
3.0 m (9'10")
4.0 m (13'1")
3.0 m (9'10")
5
AREA ADJUSTMENT
- 16 -
