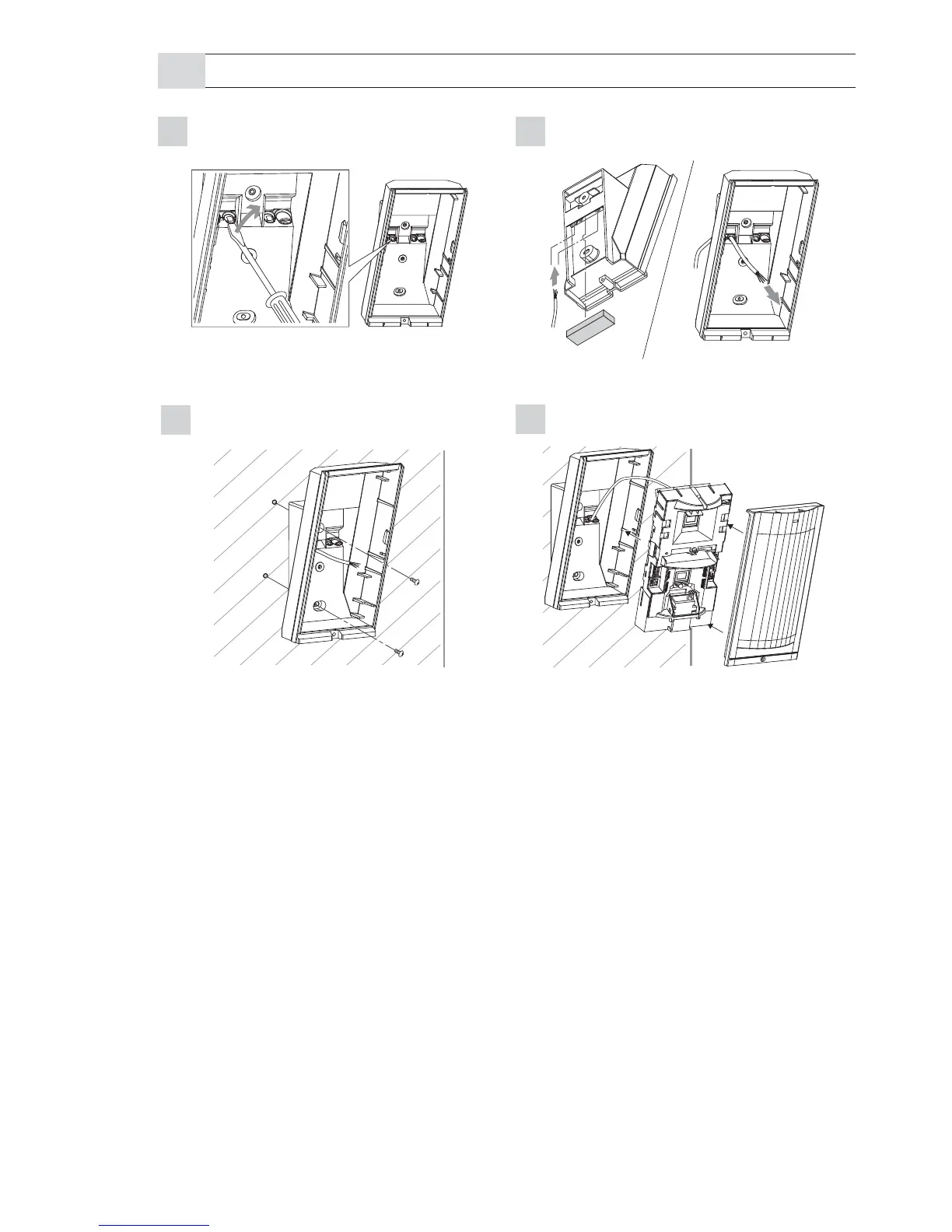

2-3 MOUNTING WITHOUT BRACKET
1
Open the wiring knockout with suitable
tool e.g. screwdriver.
3
Fasten the base to the wall.
2
Pull the wire through the base knockout.
4
Install main unit after wiring to the
terminal.
In
Out
Wiring sponge pad
