-Precautions for installing two or more sensors
HX-40
HX-40AM
HX-40DAM
Do not install two or more HX-40DAM’s units side-by-side or face-to-face. Instead, install them
back-to-back. If mounting on the same wall, be sure they are at least 1.0 m (3'3") apart from
each other.
1.0 m (3'3") or more Less than 1.0 m (3'3")
1-2

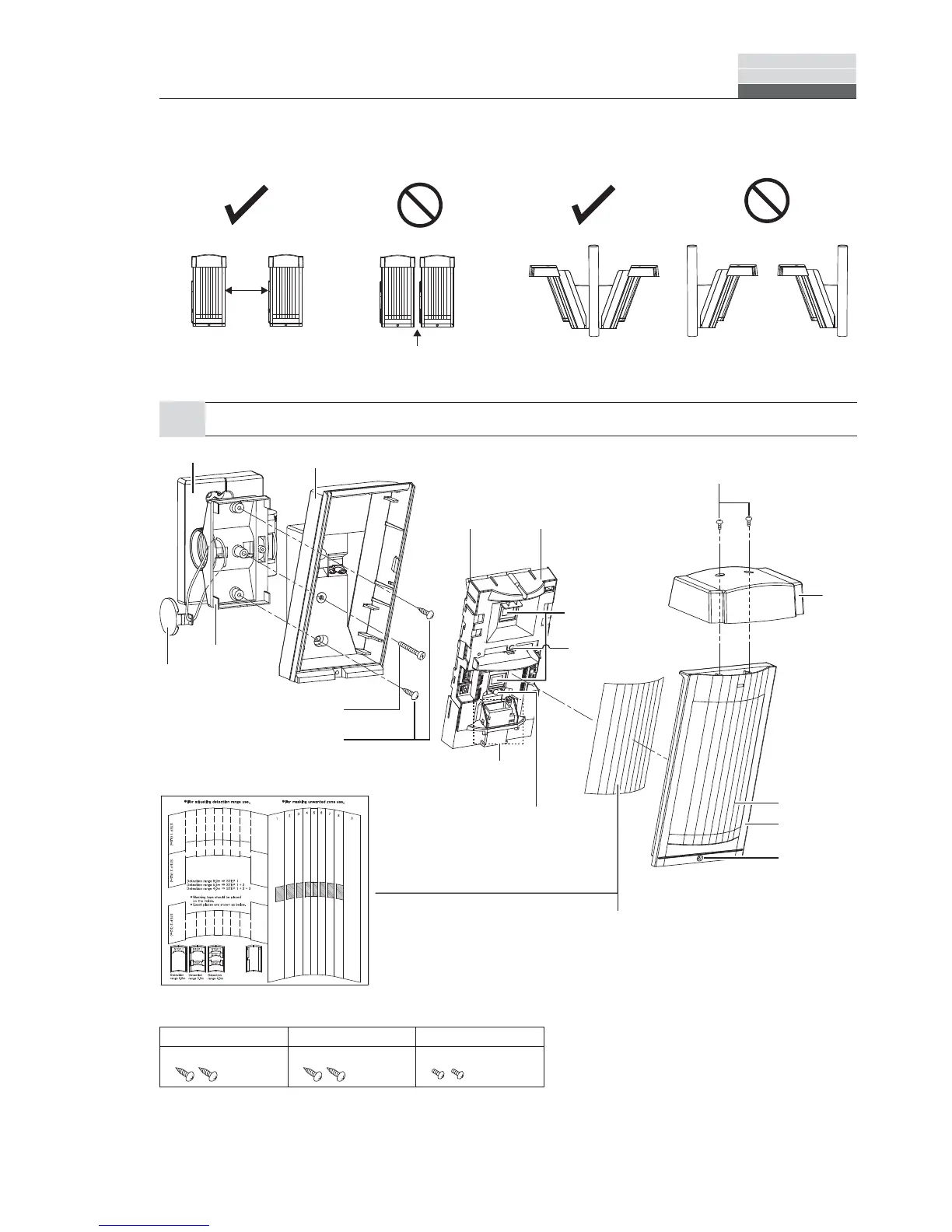

PARTS IDENTIFICATION
Screw kit
For joint For wall mounting For hood
Screw (4 × 20 mm)
Screw (4 × 20 mm) Screw (3 × 10 mm)
*Lock screw attached on bracket base
Bracket base
Screw (3 × 10 mm)
Area masking seal
Main unit
Bracket
LED indicator
Lock screw* (M4 × 35 mm)
Lens
Base
PIR sensor
(Do not touch)
Terminals
Shaft cover
Cover
Lock screw
Hood
Anti-masking infrared LED
(HX-40AM/DAM only)
Microwave unit
(HX-40DAM
only)
(Do not touch)
Screw (4 × 20 mm)
