Optex HX-40 - 6 Led Indication

-HX-40/40AM

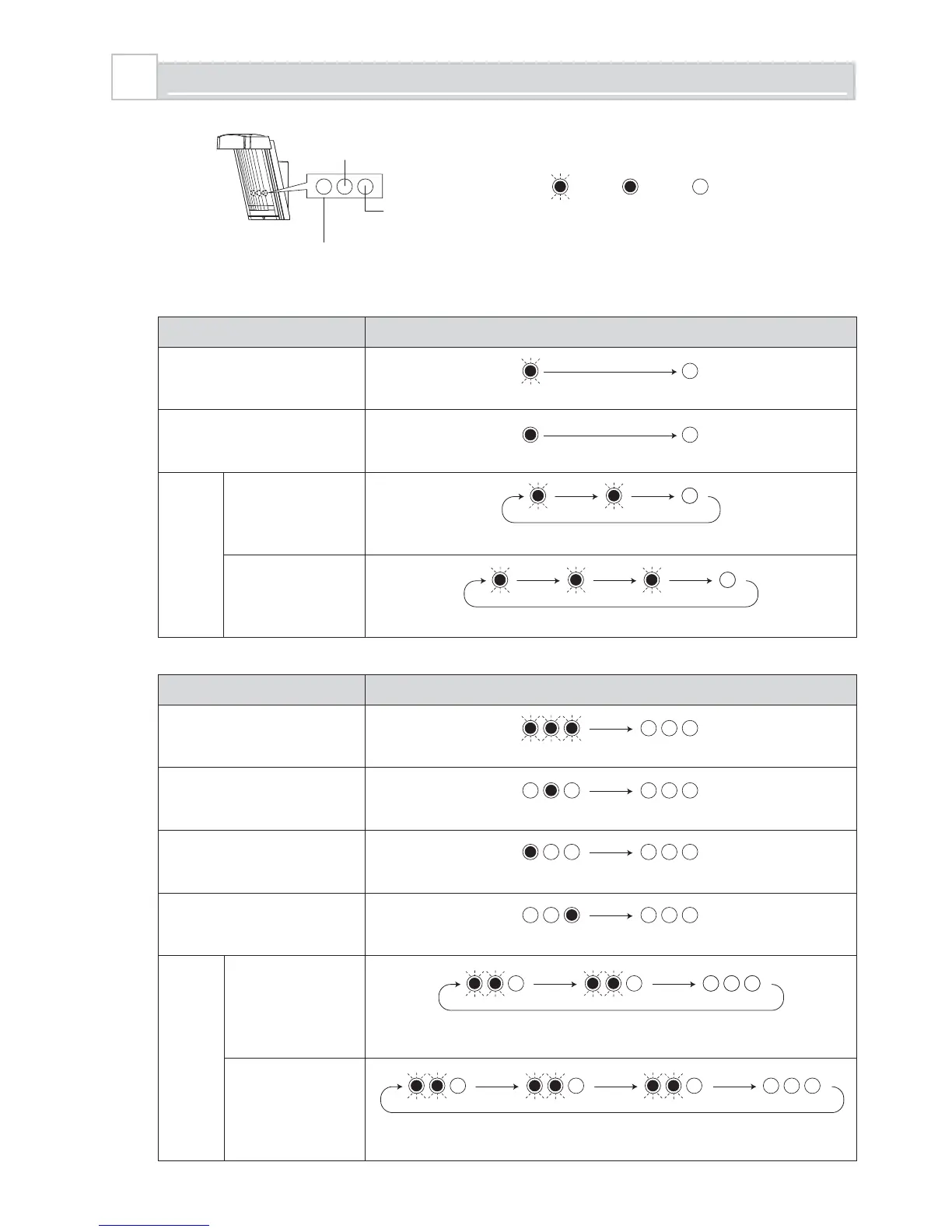

DETECTOR CONDITION LED INDICATOR (RED ONLY)
Warm-up
Blinks for approx. 60 sec.
Alarm
Lights for 2 sec.
Trouble
output
Anti-Masking
booting
(Anti-Masking
start up)
Blinks 2 times and goes off for 5 sec. and then repeats for 180 sec.
Masking detection
Blinks 3 times and goes off for 3 sec. and then repeats.
-HX-40DAM
DETECTOR CONDITION LED INDICATOR
Warm-up
Blinks for approx. 60 sec.
Alarm
Red lights for 2 sec.
PIR detection
Green lights for 2 sec.
MW detection
Yellow lights for 2 sec.
Trouble
output
Anti-Masking
booting
(Anti-Masking
start up)
Green and Red blink 2 times simultaneously and go off for
5 sec. This sequence is repeated for 180 sec.
Masking detection
Green and Red blink 3 times simultaneously and go off for
3 sec. This sequence is repeated.
6
LED INDICATION
Red
Blink Light OFF
Green
(HX-40DAM only)
Yellow
(HX-40DAM only)
