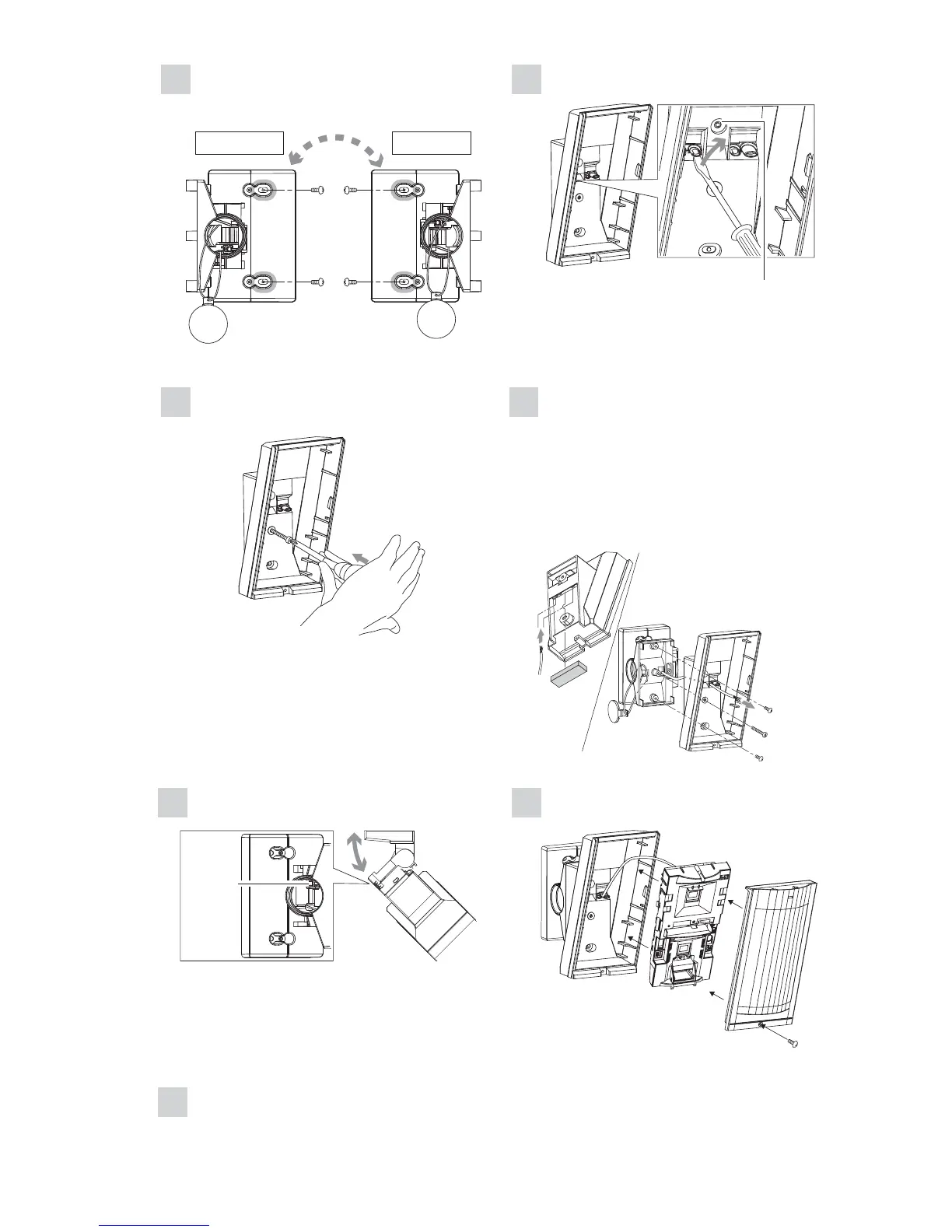

5
Determine the horizontal direction (left or
right) of the detector before installing the
bracket on the wall.
6
Open the wiring knockout.
7
Open the Up-Down lock screw knockout
for connecting the bracket.
Knockout with 4 × 20
tapping screw (screwkit)
8
Tighten screws
1
and
2
, adjust the bracket
angle (refer to 2-2), then tighten screw
3
.
Perform an area check. If re-adjustment is
required, loosen screw 3 and change the
bracket angle.
After the adjustment is complete, tighten
screw 3 again.
To the right To the left
Wiring knockout
24 × 20 screw
Wiring
hole
Out
Wiring
sponge pad
14 × 20 screw
34 × 35 Up-Down
lock screw
In
Adjustment
screw
9
Tighten the adjustment screw clockwise.
10
Wire to the terminal and install the main
unit and lens on the base.
11
Install the shaft cover into place.
- 7 -
