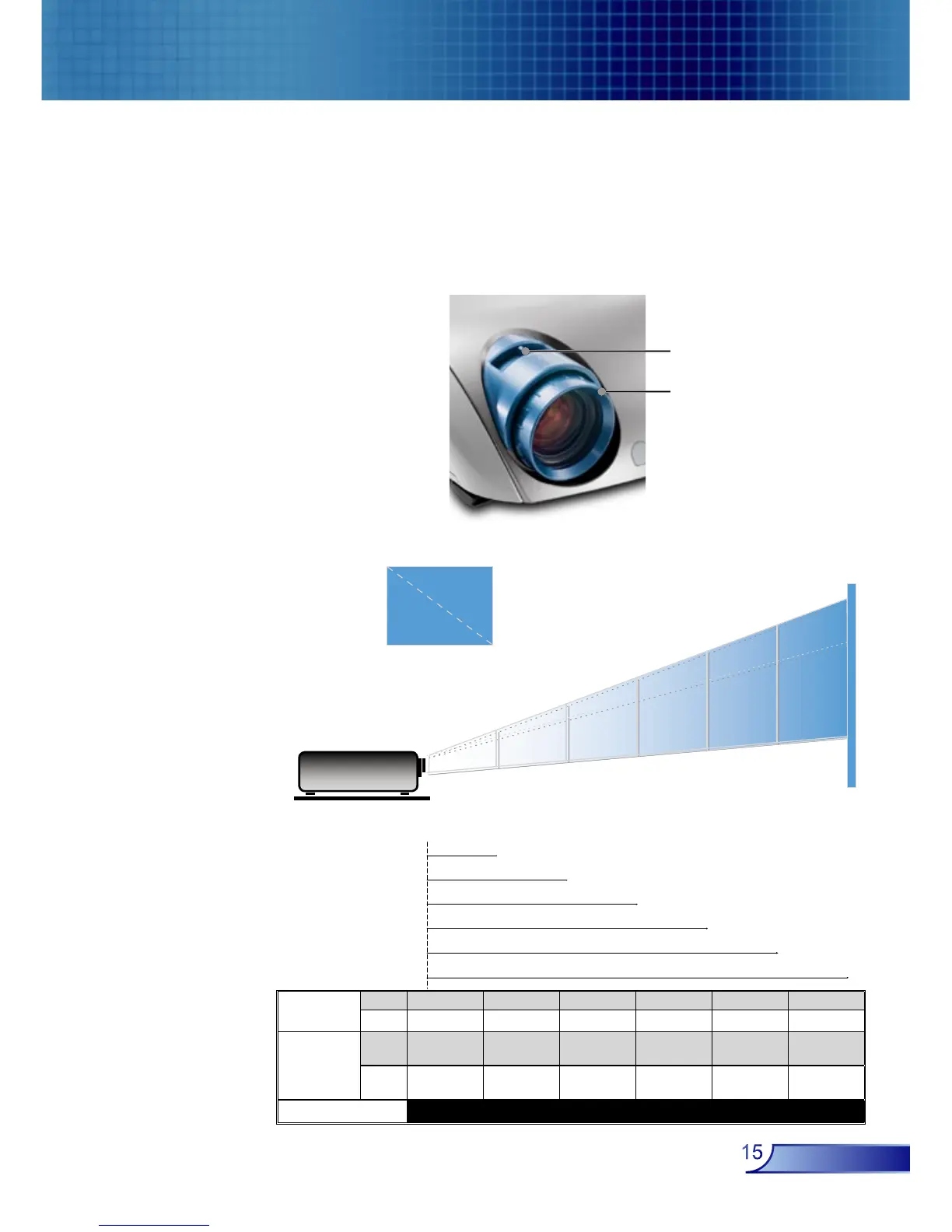

Adjusting the Projector Zoom / Focus
You may turn the zoom lever to zoom in or out. To focus the im-
age, rotate the focus ring until the image is clear. The projector
will focus at distances from 4.9 to 39.4 feet (1.5 to 12.0 meters).
Adjusting Projection Image Size
This graph is for user’s reference only.
Screen
(Diagonal)
Max.
36.9”(93.8cm) 73.8”(187.5cm) 123.0”(312.5cm) 172.2”(437.5cm) 221.5”(562.5cm) 295.3”(750.0cm)
Min.
30.8”(78.1cm) 61.5”(156.3cm) 102.5”(260.4cm) 143.5”(364.6cm) 184.5”(468.8cm) 246.1”(625.0cm)
Screen
Size
Max.
(WxH)
29.52”x 22.14”
75.0 x 56.3cm
59.04” x 44.28”
150.0 x 112.5cm
98.4” x 73.8”
250.0 x 187.5cm
137.76” x 103.32”
350.0 x 262.5cm
177.20” x 132.90”
450.0 x 337.5cm
236.24” x 177.18”
600.0 x 450.0cm
Min.
(WxH)
24.64” x 18.48”
62.5 x 46.9cm
49.20” x 36.90”
125.0 x 93.8cm
82.0” x 61.5”
208.3 x 156.2cm
114.8” x 86.1”
291.7 x 218.8cm
147.6” x 110.7”
375.0 x 281.3cm
196.88” x 147.66”
500.0 x 375.0cm
Distance
4.9’ (1.5m) 9.8’ (3.0m) 16.4’ (5.0m) 22.3’ (7.0m) 29.5’ (9.0m) 39.4’ (12.0m)
