Introduction

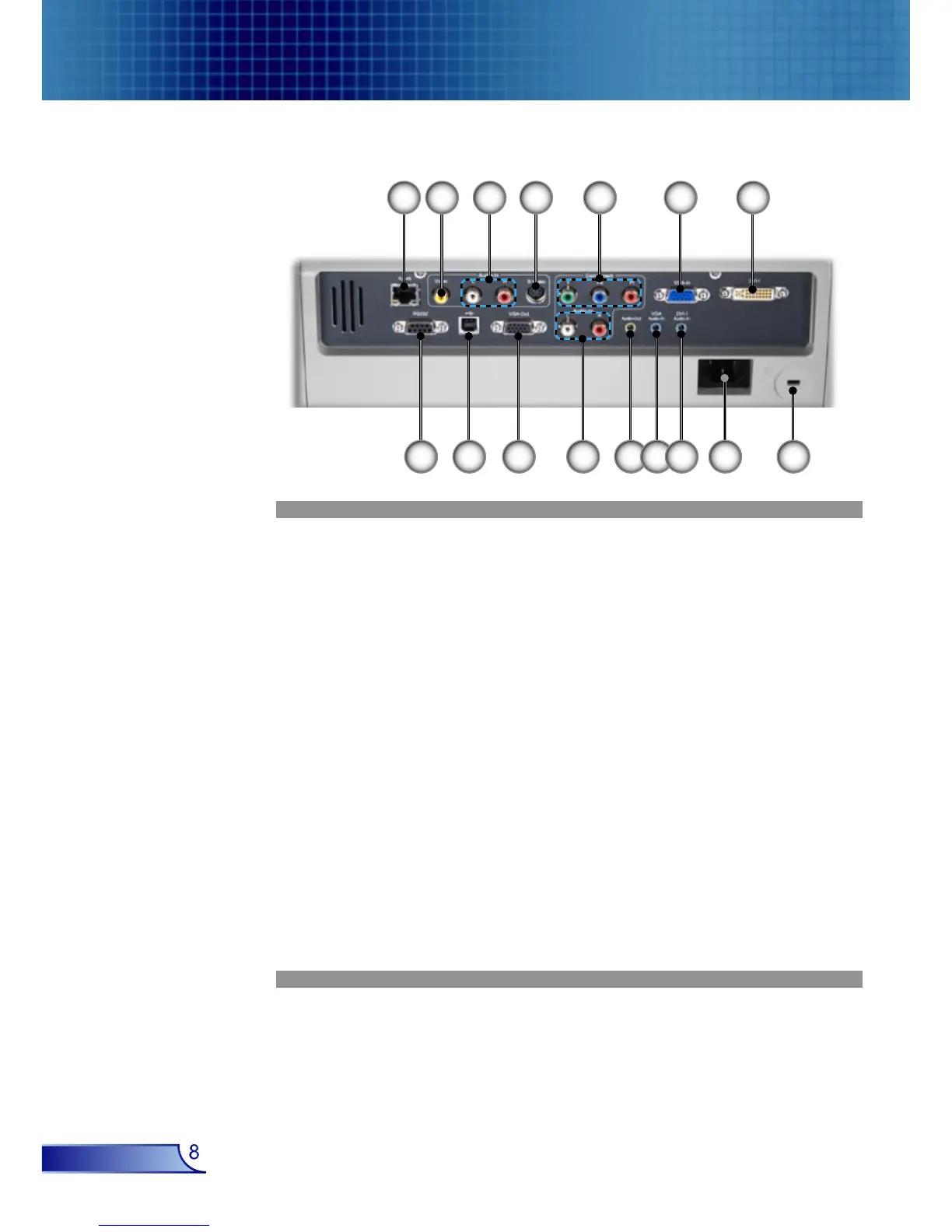

Connection Ports
1. DVI-I Input Connector (PC Digital and Analog signal/
SCART RGB/HDTV/HDCP Input)
2. VGA-In Connector (PC Analog signal/HDTV/Component
Video Input)
3. RCA YPbPr Connectors
4. S-Video Input Connector
5. Audio Input Connector (For Composite or S-Video)
6. Composite Video Input Connector
7. Networking Connector
8. RS232 Connector
9. USB Connector (Connect to PC for Remote Mouse function)
10. Monitor Loop-through Output Connector
11. Audio Input Connector (For YPbPr)
12. Audio Output Connector
13. Audio Input Connector (For VGA)
14. Audio Input Connector (For DVI-I)
15. Power Socket
16. Kensington
TM
Lock Port
