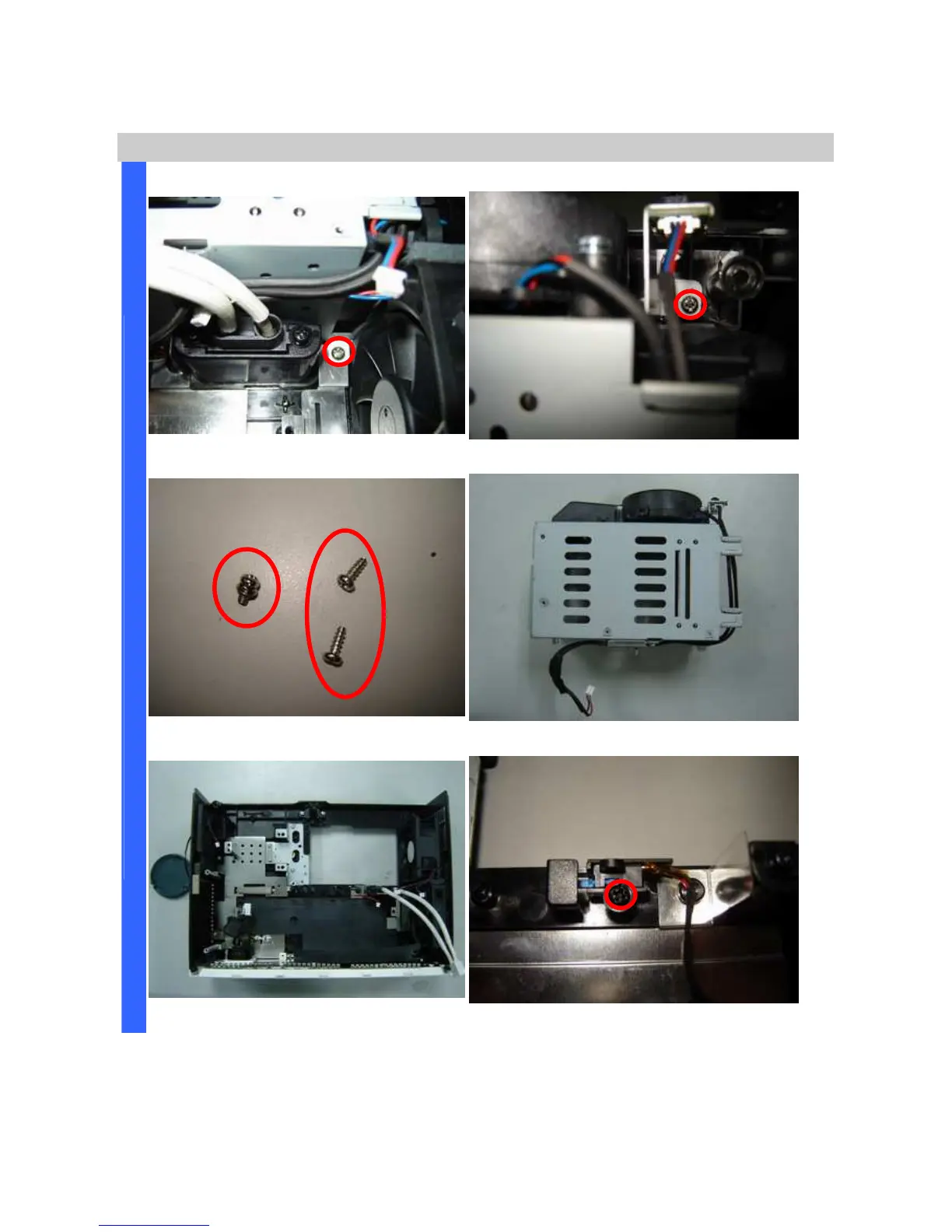

Removing the Lamp module chassis
Remove the screw 1 of 2 (S19). Remove the other screw 2 of 2 (S19).
Review the three screws (two kinds).
Remove the Lamp module chassis.
D
I
S
A
S
S
E
M
B
L
Y
Review the bottom side w/o Lamp chassis.
Remove interlock switch (one screw-S20).
