Optoma ES520 - Page 39

Delta Elec. Inc. ES520 & EX530 ver.02
Company Confidential Optoma___________________ Delta________________
39
2008/09/17
Removing the Accessory and Fans position review

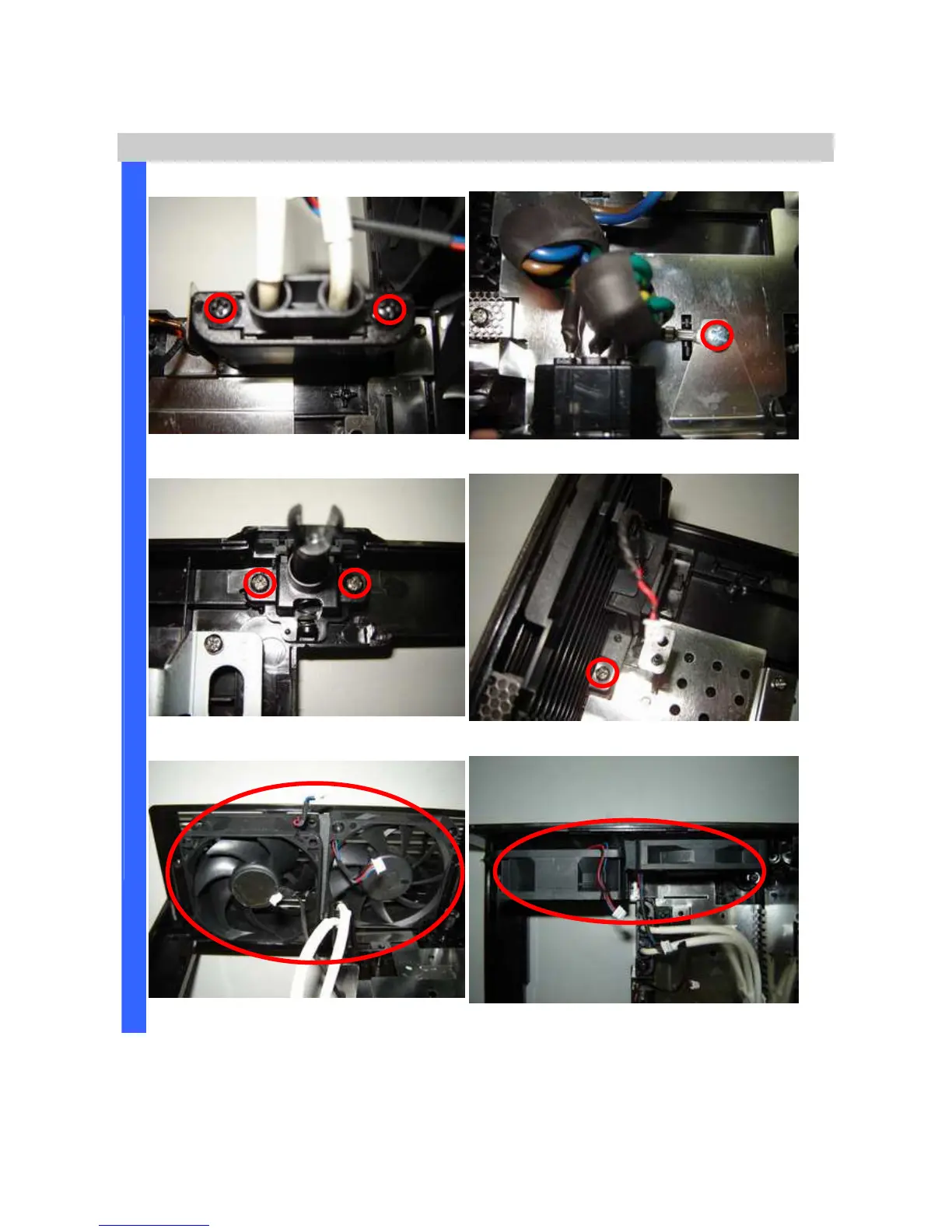

Remove the HV wire (two screws-S21).
Remove grounding wire(one screw-S22).
Review the Adj foot (two screws-S23).
Review the Spaker (one screw-S24).
D
I
S
A
S
S
E
M
B
L
Y
Careful the Fans position when you assemble it.
Careful the Fans position when you assemble it.
