Optoma ES522 - Disassembly and Assembly; 4-1 ES522 Disassembly Procedures

Delta Elec. Inc. ES522 & EX532
Company Confidential Optoma___________________ Delta________________
26
2009/06/30
4.DISASSEMBLY AND ASSEMBLY
a. ES522 (DP-2400)

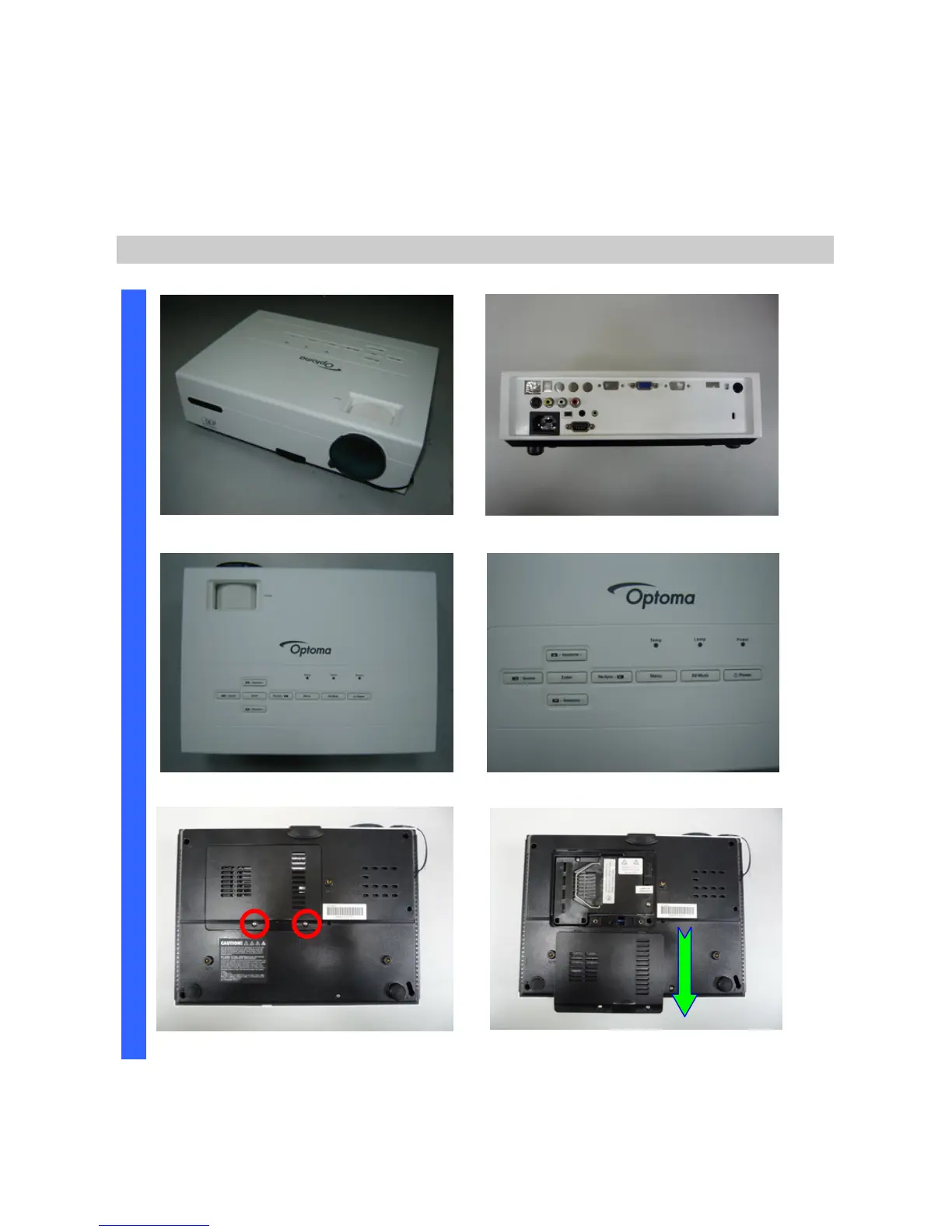

Removing the Lamp Cover and Lamp Module
Look the full set projector. Look at the IO side.
Look at the case of top side. Look at the keypad of top side.
D
I
S
A
S
S
E
M
B
L
Y
Loose these two screws. Remove and take out the lamp cover.
