Optoma ES522 - Removing the Optical Engine

Delta Elec. Inc. ES522 & EX532
Company Confidential Optoma___________________ Delta________________
33
2009/06/30

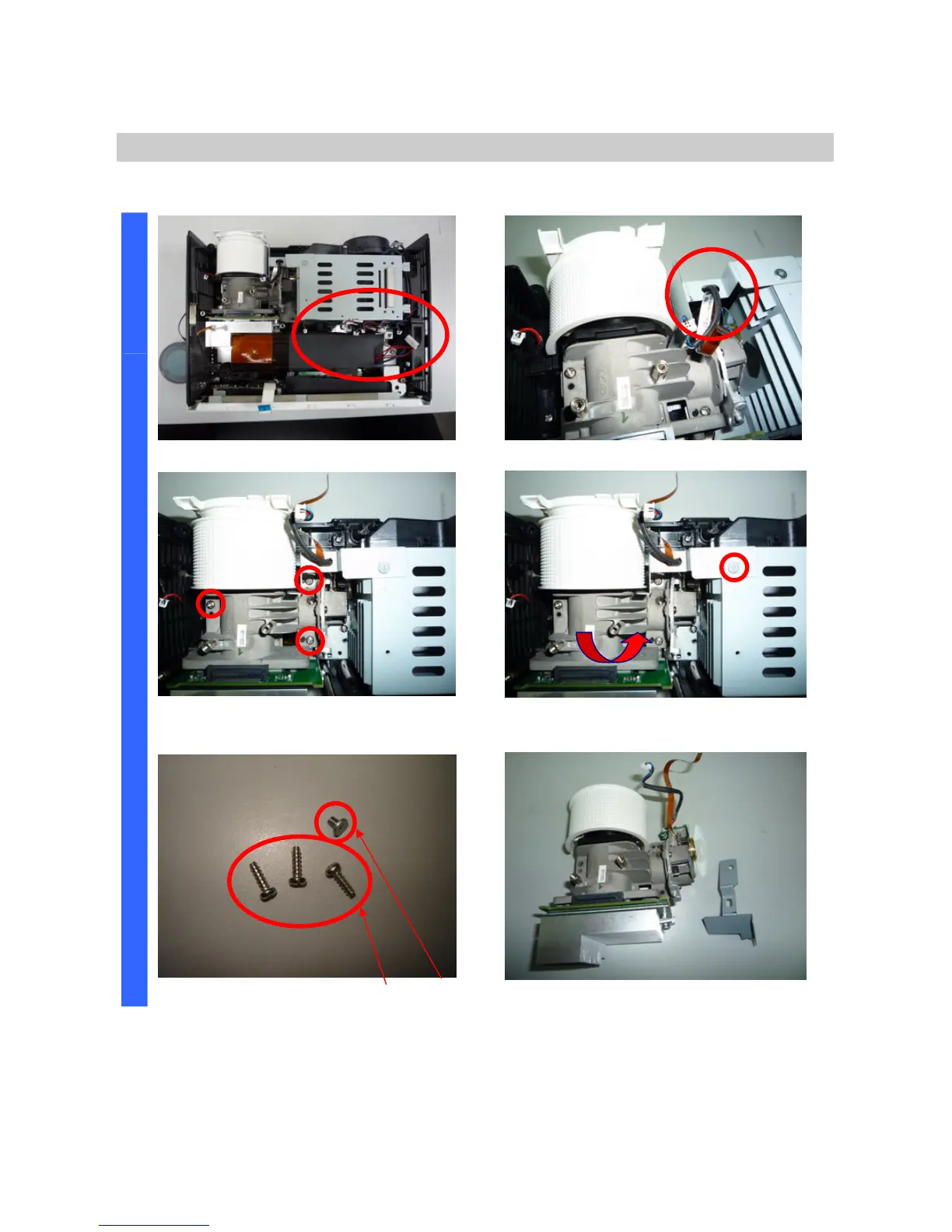

Removing the Optical Engine
Careful assembly when you assemble it.
Careful assembly when you assemble it.
Remove the three screws. Remove the screw and take off the optical
engine.
D
I
S
A
SS
E
M
B
L
Y
Review the screws (two kinds S08 & S09).
Review the optical engine.
