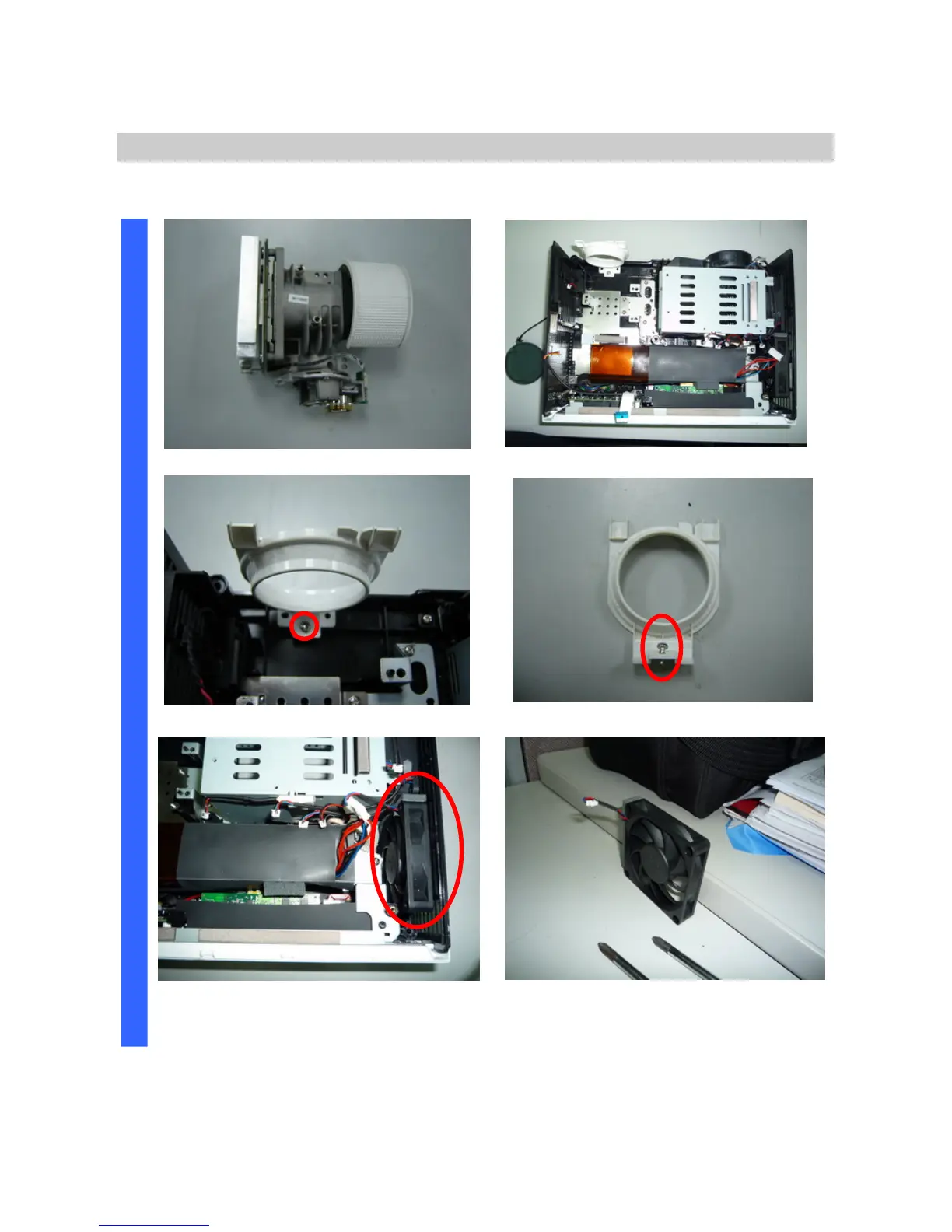

Removing the Optical engine and Fan
Review the optical engine (other side).
Review the bottom case w/o optical engine.
Remove the zoom ring screw (S10). Review the zoom ring and the screw.
D
I
S
A
SS
E
M
B
L
Y
Right up removing the Fan. Review the Fan’s Direction.
