Removing the Lamp Cover and Lamp Module

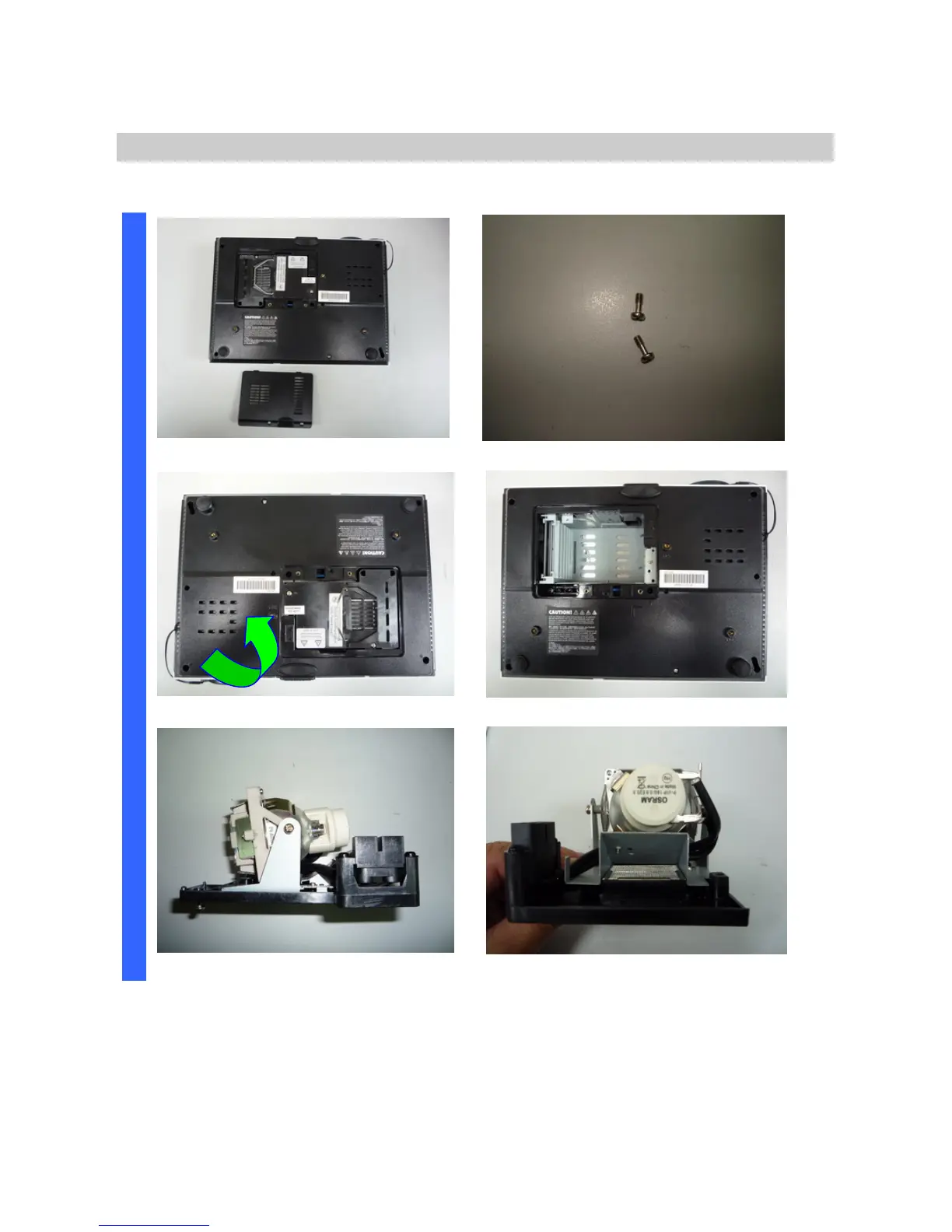

Remove the lamp cover. Loose two screws and take out (S01).
Remove the lamp modules. Look the bottom case.
D
I
S
A
S
S
E
M
B
L
Y
Look the Lamp #1. Look the Lamp #2.
