Optoma TX7156 - Page 38

Delta Elec. Inc. EP7155i & EP1691i
Company Confidential Optoma_______________________ Delta____________
38
2010/01/11

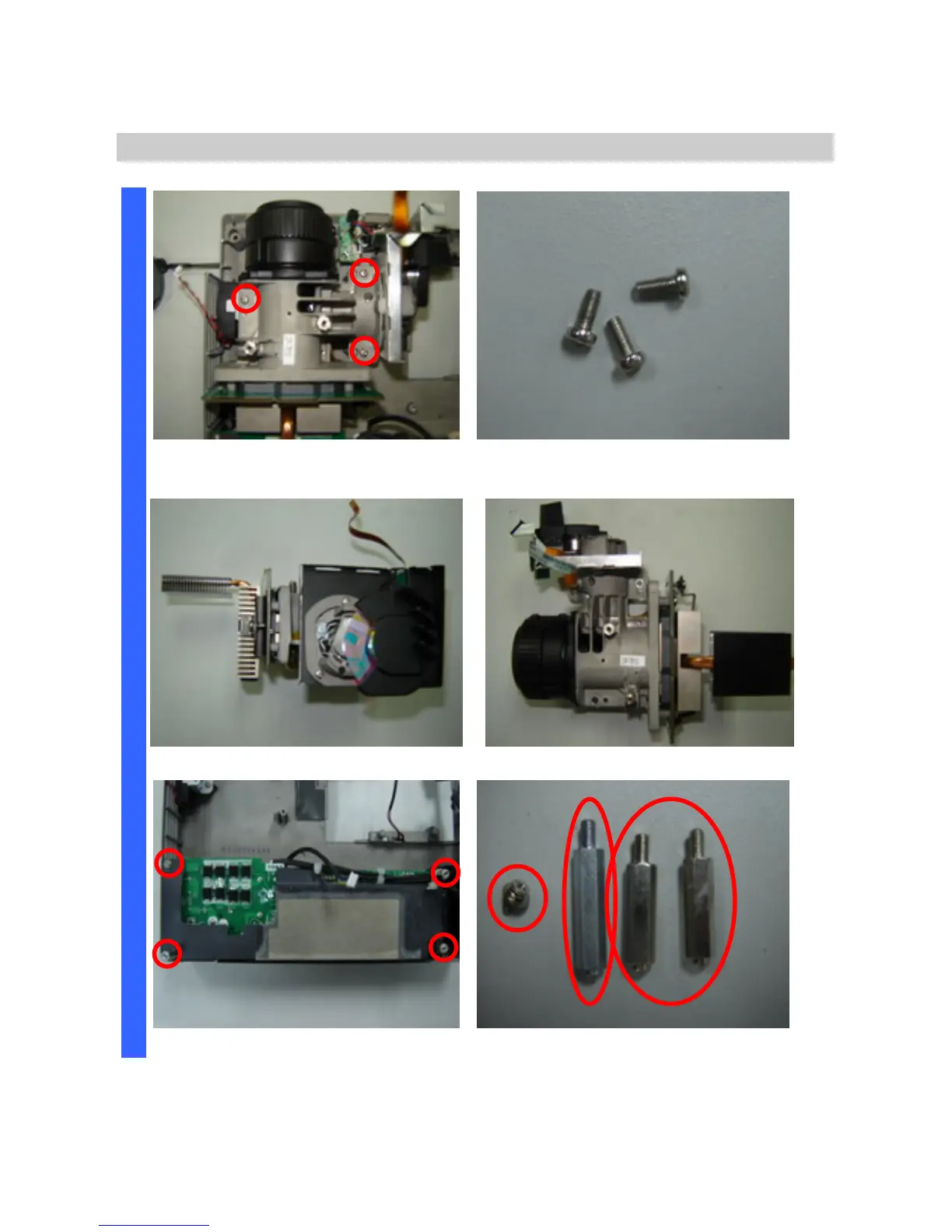

Removing the Optical Engine & Power Board
Remove the three screws and take off
the optical module.
Review the three screws (S14).
Review the optical module #1. Review the optical module #2.
D
I
S
A
S
S
E
M
B
L
Y
Remove the four screws. Review the four screws (S15/16/17).
