Optoma TX7156 - Page 39

Delta Elec. Inc. EP7155i & EP1691i
Company Confidential Optoma_______________________ Delta____________
39
2010/01/11
Removing the Power Board

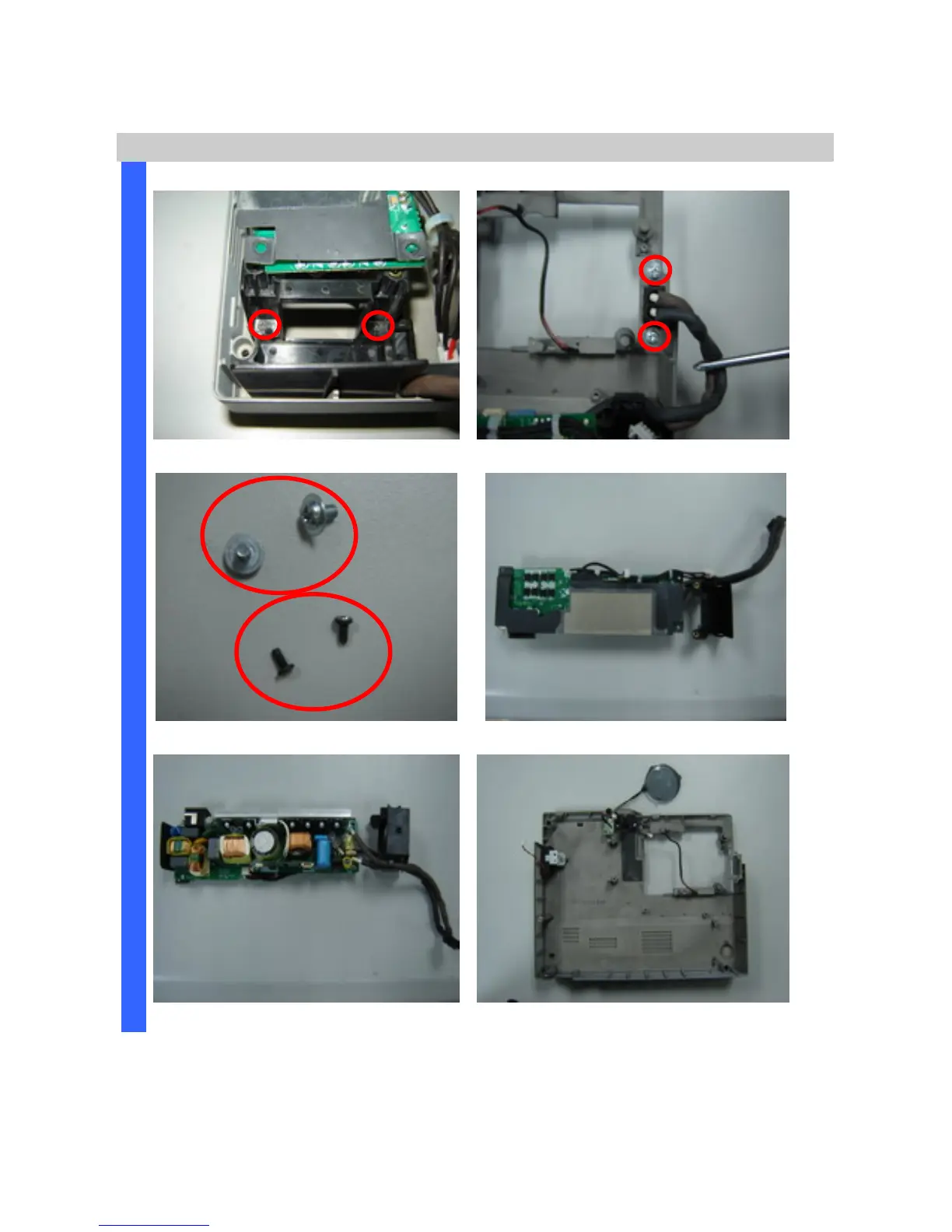

Remove the two screws (S18). Remove the two screws (S19).
Review the four screws. Review the power module #1.
D
I
S
A
S
S
E
M
B
L
Y
Review the power module #2. Review the button case.
