Use a separate, stabilized power supply
with an output voltage in the range 5-30 V
DC. The residual ripple of the power supply
should be max. 200 mV.
For all power and data lines use shielded
cables only.
Electrical Installation
Analog Mode

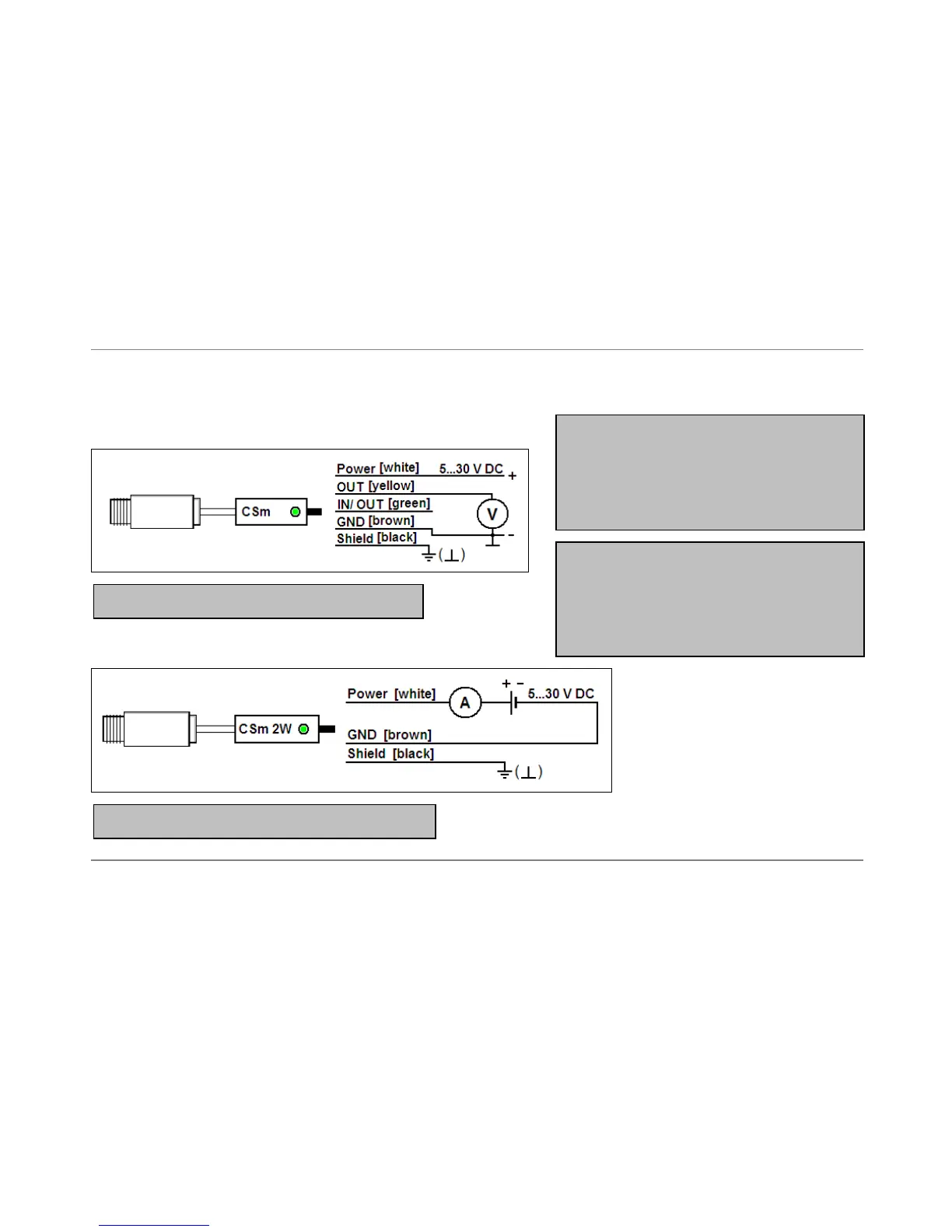

CSmicro LT/ 3M as analog device (mV output on OUT pin)
CSmicro 2W as analog device (mA two-wire-output)
The maximum loop impedance is 1000 Ω.
The output impedance must be ≥ 10kΩ.
IMPORTANT:
The shield [black] on the CSmicro
(exception: CSM 2WLTxxH) is not
connected to GND [brown].
It is necessary to connect the shield to
ground or GND (whichever works best)!
