Appendix D – Direct Connection to an RS232 Interface

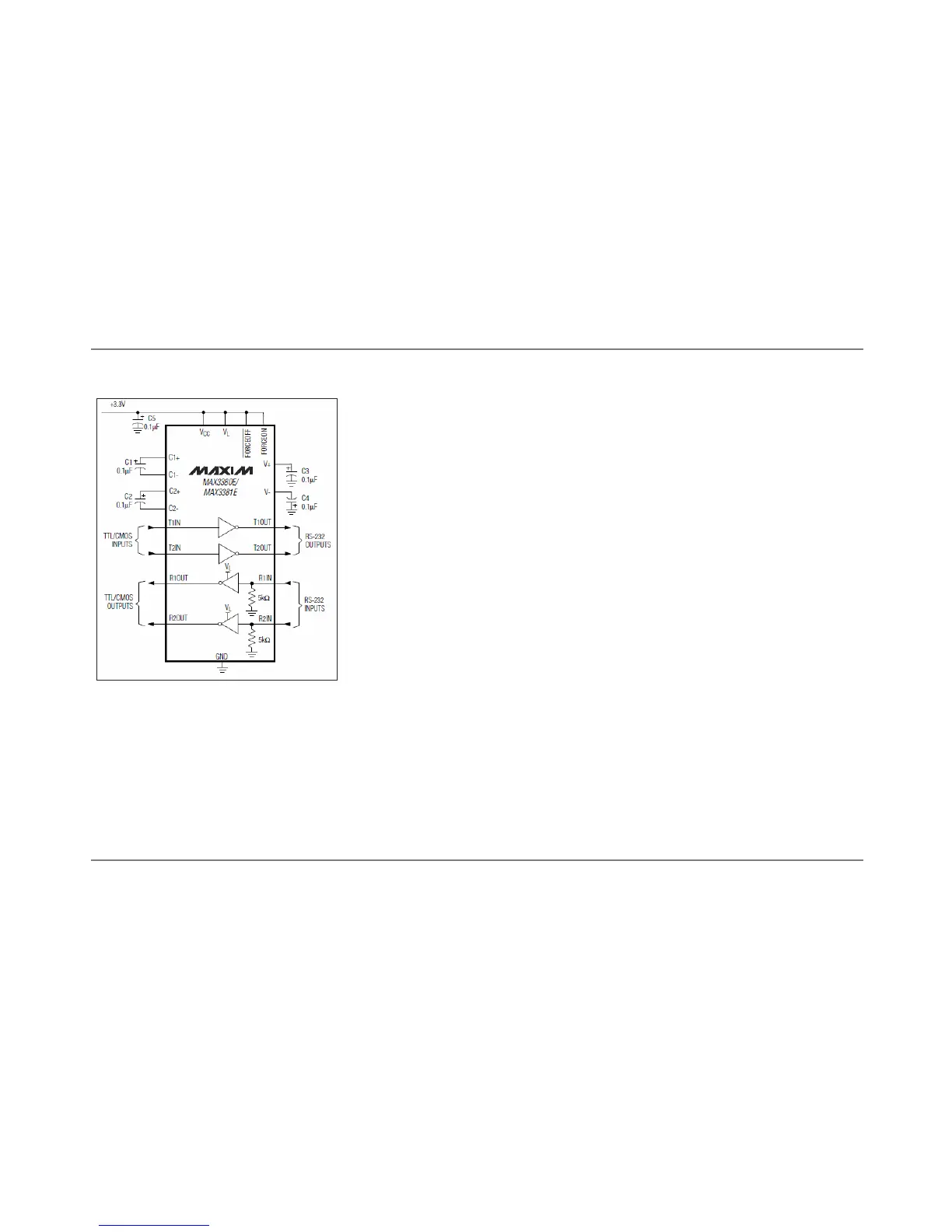

CSM connections: TxD (yellow) to T1IN
RxD (green) to R1OUT
GND (brown) to GND
PC connections: connect T1OUT with RxD (PC)
connect R1IN with TxD (PC)
